12V 3000K SMD335 96 led per meter Waterproof Side Emitting LED Light Strips

FOB Reference Price:Get Latest Price
US $4.1-5.99 / Meters | 5 Meter/Meters (Min. Order)
Support Dimmer:
Yes
Wattage:
7W
Emitting Color:
Cold White White Warm White
Model Number:
AH-NW335WW-12-96
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD335
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
38.4W
Lamp Luminous Flux(lm):
2880Lumen
CRI (Ra>):
80
Color Temperature(CCT):
3000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB+SMD
Certification:
BV, C-tick, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
Emitting Color:
Warm White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
PCB Color:
White or Brown
Waterproof:
IP20, IP67, IP68
Beam Angle(°):
120 degree
Power:
38.4W/Roll
Lumens:
2880Lm
Warranty:
5 years
Supply Ability
Supply Ability:
30000 Meter/Meters per Week High brightness underwater 335SMD side emitting led strip
Packaging & Delivery
Packaging Details
0.12kgs / Reel
25Rolls / Carton
4.5KGS / Carton
Port
SHENZHEN China



Product Description

12V 3000K SMD335 96 led per meter Waterproof Side Emitting LED Light Strips

  Model: AH-NW335WW-12-96

  • Applicable for automobile and bicycle decoration, border or contour lighting
  • Widely used for home decoration use, hotels, clubs, shopping malls
  • Architectural decorative lighting, boutique atmosphere lighting

335SMD-96leds-IP67-15



Dimmable Flexible LED Light Stripe - 335SMD 96LEDs Side-Emitting



LED Type: 335SMD, Taiwan Chip(Epistar)



LED QTY: 96LEDs/Meter, 5Meters/Roll, 480LEDs/Roll, 480LEDs/16.40Ft


Max Lumens per LED: 2lm(Red),2lm(Yellow),4lm(Green),4.5lm(Blue),4.5lm(White),4lm(Warm White)

Color Temperature: 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K+

7.68W/Meter, 0.64A/M(12VDC), 38.4W/Roll

DC12V (Every 3 LEDs cut at 31.3mm / 1.23")

Pitch: 10.4mm / 0.41"

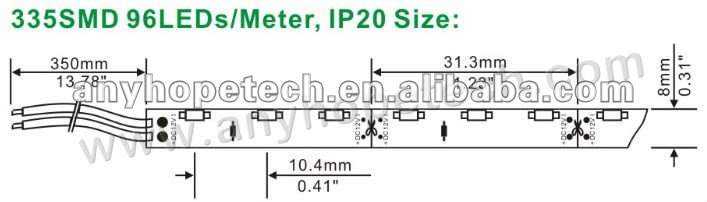

335-96-ip20 size.jpg



 335-96leds-IP20-08


PCB Color: Brown, White, Black (Optional)





Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-335R-12-96

Red

192

96

12V

7.68

AH-335Y-12-96

Yellow

192

AH-335B-12-96

Blue

240

AH-335G-12-96

Green

384

AH-335W-12-96

White

384~576

AH-335WW-12-96

Warm White

336~528





Note: Amber, Orange, Pink, Purple color are optional.


335SMD-96leds-IP67-10




Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.





LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 1.2mm
0.31 x 0.05"

AH-N335W-12-96

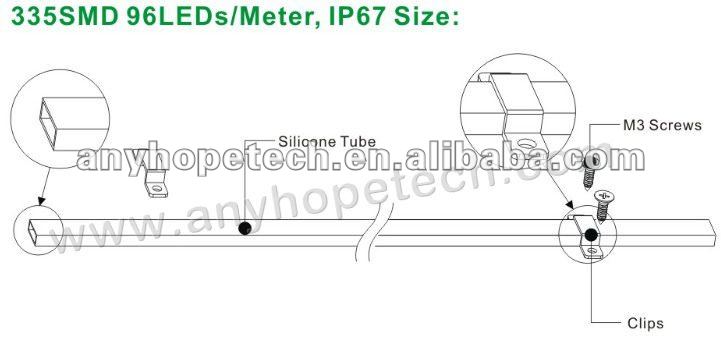

Silicone tube series

IP67

10 x 6mm
0.39 x 0.24"

AH-NW335W-12-96




Cable length: 35cm / 13.78"

Free end cap: 1 Piece / Meter (Opitional)

Free mounting clip: 2 Pieces / Meter (Opitional)

View angle: 120 degree

CRI: >80

CRI: >90 are available




335-96leds-IP67-02





Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 3 years

Certification: CE RoHS UL




The flexible single color strip connect to power supply:



Operating driver: LED Transformer with DC12V output

Compatible with Dimmer

single

Note:

  • Please notice that,the LED strips should not be used in sealed or hot place,to make sure the heat emitting is good for the LEDs.
  • Each flexible strip with a total length of the series can not be more than 5 meters.
  • Flexible strip with all of the total power can not exceed 90% of the power switching power supply
