48watt per roll high bright 12v led waterproof rope light

FOB Reference Price:Get Latest Price
US $2.92-3.69 / Meters | 5 Meter/Meters Warm White: 2500K (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528 Epistar
Type:
Flex LED Strips
Input Voltage(V):
12 Volt
Lamp Power:
48W
Lamp Luminous Flux(lm):
840-960
CRI (Ra>):
88
Color Temperature(CCT):
2500K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB+SMD3528
Certification:
CE, EMC, FCC, LVD, RoHS, UL
Emitting Color:
White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-3528WW-24-120
Working Voltage::
DC12V / 24V
Power::
9.6W/Meter, 48W/Roll
LED QTY::
120LEDs/Meter,600LEDs/Roll
View Angle::
120 degrees
Color::
Warm White / White / Red / Green / Blue / Yellow / Pink
Dimension::
5000*8*2.2mm /195*0.31*0.09inches
Certification::
CE RoHS
Weight::
0.13Kgs/Roll, 5Meters/Roll
Life:
50,000h
SupplyAbility
SupplyAbility:
50000 Meter/Meters per Week 2300-2500K
Packaging & Delivery
Packaging Details
0.13kgs/Roll
25Reels/Carton
Port
Shenzhen China
Lead Time :
Within 5-7 working days



Product Description

high CRI low voltage for Christmas outdoor warm white 2500K led strip



24V120pcs/M flexible 3528 smd led strip with CE RoHS

SMD3528    120 LEDs/Meter (DC12/24V)



Model: AH-3528WW-24-120



HTB1Z5FGIXXXXXa7XXXXq6xXFXXXB







Flexible LED Light Stripe - 3528SMD 120LEDs



LED Type: 3528SMD, Epistar Chip



LED QTY: 120LEDs/Meter, 5Meters/Roll, 600LEDs/Roll, 600LEDs/16.40Ft



Max Lumens per LED:



3lm(Red),3lm(Yellow),5lm(Green),3.5lm(Blue),7lm(White),6lm(Warm White)





Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K




Power: 9.6W/Meter, 0.8A/M(12VDC), 0.4A/M(24VDC), 48W/Roll





120-6



Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-3528R-12/24-120

Red

360

120

12V
24V

9.6

AH-3528Y-12/24-120

Yellow

360

AH-3528B-12/24-120

Blue

420

AH-3528G-12/24-120

Green

600

AH-3528W-12/24-120

White

840

AH-3528WW-12/24-120

Warm White

720

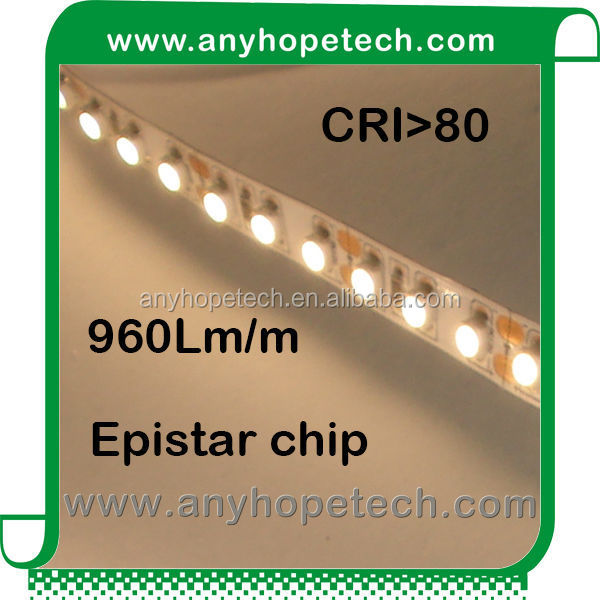

Super Bright Warm White: 840Lm/Meter

Super Bright Cool White: 960Lm/Meter are available.



Note: Amber, Orange, Pink, Purple color are optional.



 120-3













Pitch: 8.3mm / 0.33"

DC12V (Every 3 LEDs cut at 25mm / 0.98")

DC24V (Every 6 LEDs cut at 50mm / 1.97")

PCB Color: Brown, White, Black (Optional)

Dimension:  5000*8*2.2mm /195*0.31*0.09inches


120 cut







Cable length: 35cm / 13.78"







Free end cap: 1 Piece / Meter (Opitional)







Free mounting clip: 2 Pieces / Meter (Opitional)











LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 2.2mm

0.31 x 0.08"

AH-3528-12/24-120

Epoxy / Silicone series

IP65

8 x 2.5mm

0.31 x 0.09"

AH-E3528-12/24-120

Silicone tube series

IP67

10 x 4mm

0.39 x 0.16"

AH-F3528-12/24-120

U-shape silicone series

IP67

10 x 5mm

0.39 x 0.19"

AH-U3528-12/24-120

PVC Tube + Epoxy series

IP68

10 x 4mm

0.39 x 0.16"

AH-G3528-12/24-120

All silicone series

IP68

10 x 5mm

0.39 x 0.19"

AH-S3528-12/24-120





 View angle: 120 degree

CRI>80, CRI>90
Super bright CRI>90 are available.


Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)
Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)
Warranty: 2 years
Certification: CE RoHS



 120-18





Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.





Operating driver: LED Transformer with DC12V/DC24V output




Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer

The flexible single color strip connect to power supply:





single







Company Information

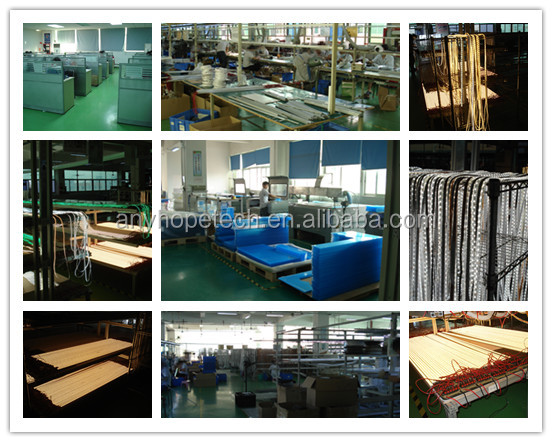

   Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.

LED Strip - CE & RoHS - Anyhope Technology Limited--Logo-0820Company photo2









Packaging & Shipping





5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton



packing



  • Accessories(Optional):

accessories
