19.2w 240leds per m high CRI long life led commercial rope lighting

FOB Reference Price:Get Latest Price
US $2.9-7.99 / Meters | 5 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528 Epistar chip
Type:
Flex LED Strips
Input Voltage(V):
DC24V
Lamp Power:
96Watt
Lamp Luminous Flux(lm):
8400lm
CRI (Ra>):
90
Color Temperature(CCT):
3000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB+SMD3528 Epistar
Certification:
BV, CE, EMC, Energy Star, ETL, FCC, LVD, RoHS, SAA, SASO, UL, VDE
Emitting Color:
Warm White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-3528WW-24-240
Dimension::
5000*10*2.2mm /195*0.39*0.09inches
120 degrees view angle:
Red,Green,Blue,Yellow,White,Warm White,Pink,Purple
LED Type::
SMD3528, rgbw led ribbon
LED QTY::
240LEDs/Meter, 1200LEDs/Roll
Lumen::
8400lm
Voltage::
DC24V
Power::
19.2W/M, 96W
View angle::
120 degrees
Certification::
CE RoHS
Warranty::
2 years
Supply Ability
Supply Ability:
30000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
5 meters / roll
1 roll / anti-static bag
Weight: 0.21kgs/Roll
Package: 25Rolls/Carton
Port
Shenzhen China
Lead Time :
Within 3-5 working days after receiving the payment.



Product Description

19.2w 240leds per m high CRI long life led commercial rope lighting

Model: AH-3528WW-24-240

  • Widely used for home decoration use, hotels, clubs, shopping malls
  • Architectural decorative lighting, boutique atmosphere lighting
  • Extensively applied in Backlighting, concealed lighting, channel letter lighting
  • Emergency & security lighting, advertisement sign lighting


AH-3528WW-24-240-43

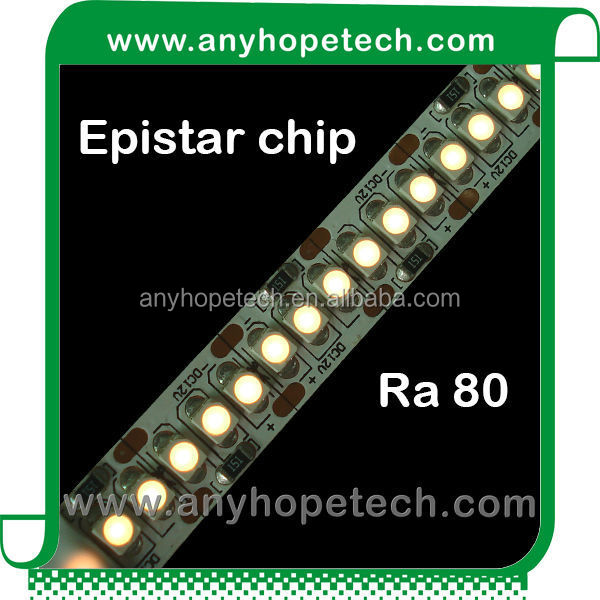

LED Type: 3528SMD, Taiwan Chip - Epistar



LED QTY: 240LEDs/Meter, 5Meters/Roll, 1200LEDs/Roll, 1200LEDs/16.40Ft



Power: 19.2W/Meter, 0.8A/M(24VDC) 96W/Roll



Max Lumens per LED:

3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Pitch: 4.2mm / 0.17"

DC24V (Every 6 LEDs cut at 25mm / 0.98")

PCB Color: Brown, White, Black (Optional)

Dimension:  5000 x 10 x 2.2mm /195 x 0.39 x 0.09"





3528-24-240 cut.jpg








Model Number

Color

Typ.Flux
(LM/M)

(LEDs/M)

(DC)

(W/M)

AH-3528R-24-240-S

Red

720

240

24V

19.2

AH-3528Y-24-240-S

Yellow

720

AH-3528B-24-240-S

Blue

840

AH-3528G-24-240-S

Green

1200

AH-3528W-24-240-S

White

1680

AH-3528WW-24-240-S

Warm White

1440




240-12

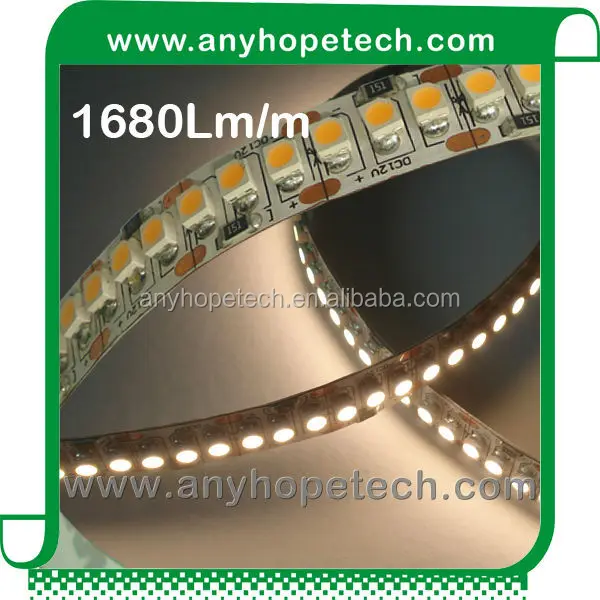

Super Bright Warm White: 1680Lm/Meter

Super Bright Cool White: 1920Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.

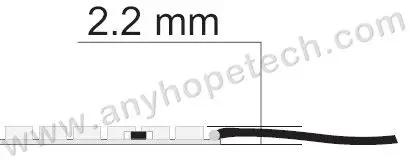

  3528-24-240 thick.jpg


  3528-24-240 wide.jpg





LED Flex Strip Type

IP
Protection

Size

Reference
Model Number

Non waterproof

IP20

10 x 2.2mm
0.39 x 0.08"

AH-3528-24-240-S



Cable length: 35cm / 13.78"

View angle: 120 degree

CRI: >80,

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 2 years

Certification: CE  RoHS  WEEE

240-15



Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC24V output



Compatible with Dimmer


The flexible single color strip connect to power supply:



3528-24-240 connect







Company Information

         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services

Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number







FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.







Packaging & Shipping



  5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton
