Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: SMD3528
  • Warranty(Years): 2
  • Input Voltage(V): DC24V
  • Lamp Power(W): 45
  • Lamp Luminous Flux(lm): 2420-3400lm
  • Lamp Luminous Efficiency(lm/w): 75
  • CRI (Ra>): 80
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP52
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-LP3528WW-123
  • Size:: 1195*295*10.4mm / 47.1*11.6*0.40 inches
  • Color:: White / Warm White
  • Certification:: CE RoHS
  • Lumen:: 2420-3400lm
  • Cover Material: Acrylic
  • Color: RGB / White / Color Temperature adjustable
  • Base Material: Aluminium Alloy
  • Voltage:: DC24V
  • Power:: 45Watt
  • Warranty: 2 years

Packaging & Delivery

Packaging Details The packing size of each led panel light [1200 * 300mm] is 131 * 37 * 6cm,
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 133 * 32 * 38cm.
Delivery Time Within 5-7 working days



Product Description

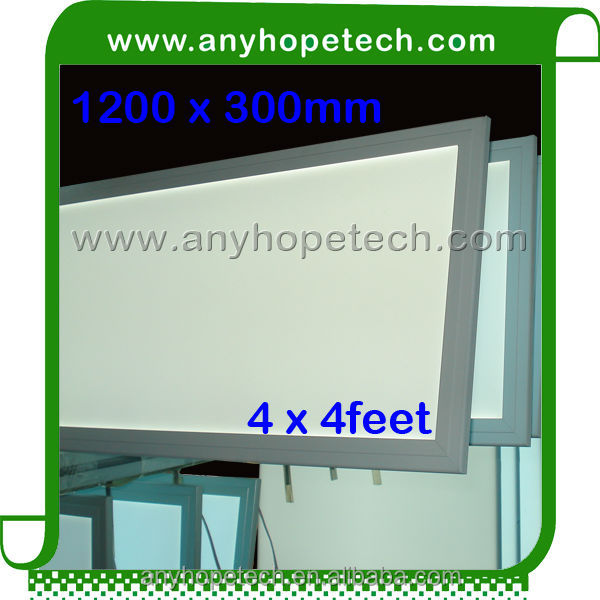

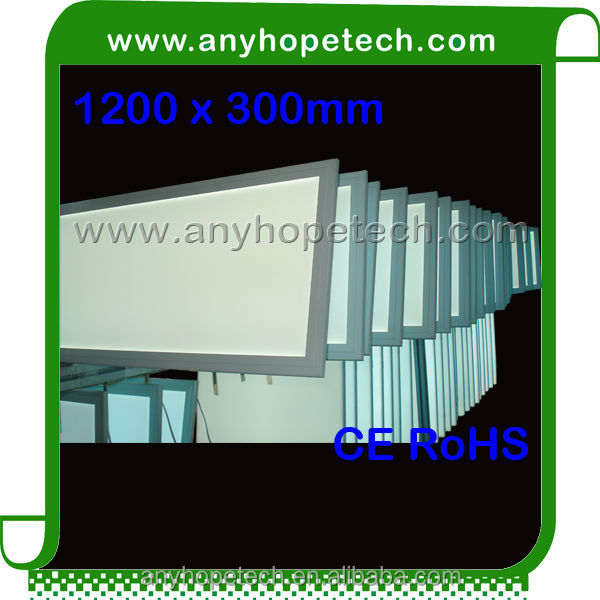

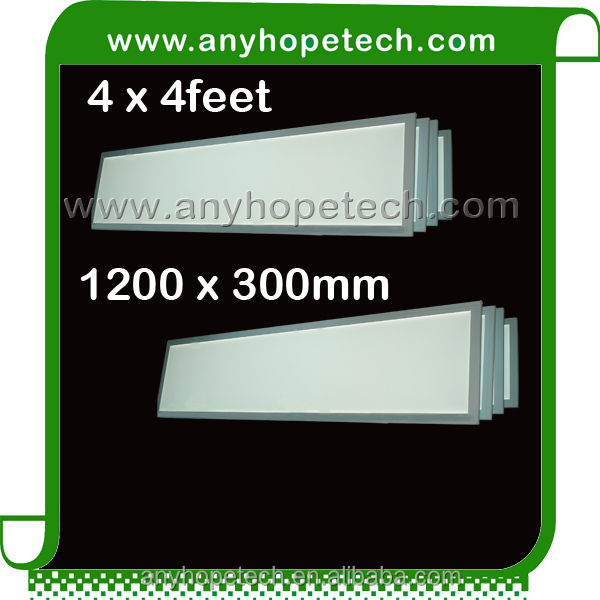

1200x300MM IP52 indoor single color 45w led panel light

 Model:  AH-LP3528WW-123



  • Warehouse Lighting, Galleries, Hospitals, Warehouses
  • Super market Lighting, institution buildings.







Ultra-thin Dimmable LED Panel  Lights 1200 x 300mm / (3.94 x 0.98ft)



Can be Constant Current Style, Input Voltage: DC55~70V(700mA).



Shell Material: Aluminium Alloy



Thickness: 10.4mm / (0.41inches)



LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: > 80,



CRI: > 90 are available.



 CRI > 80



Color

Color
Temperature

Lumen Flux

Power
(W)

Voltage
(DC)

RGB

/

Red: 420LM
Green: 800Lm
B: 520Lm

55

24V

Cool White

6000K +

3400Lm

45

White

4000~6000K

3320Lm

Warm White

2400~4000K

2420Lm

Bi-Color

Warm White ~ Cool White
2400~6000K

Max 2400Lm

45


Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)

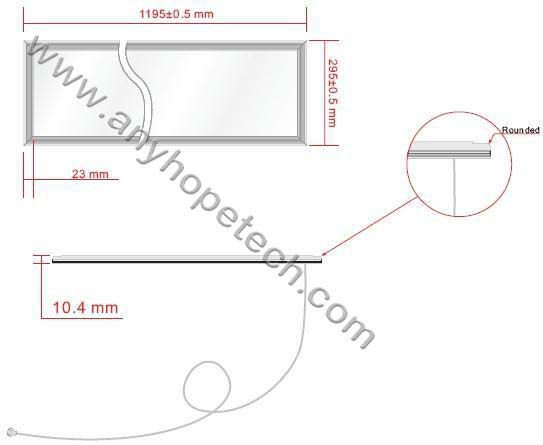

Panel Size:1195 x 295 x 10.4mm / (47.05 x 11.61 x 0.41inches)








Installation way:  Suspending/Embedded/Wall hung



LED Lumen Attenuation:



Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2



 en mainnance at 10,000hrs: 95%verage life time: 5

0,000h
















Energy saving up to 50%,  soft and even lighting output.

Instant start, no flicking, no humming.
Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
No RF interference.







Company Information

           Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

         Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.









Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, Fedex, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number







FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.
