High CRI>90 4000K color temperature 60x60 lights for easy installation

FOB Reference Price:Get Latest Price
US $59.99-69.99 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD3528
Warranty(Years):
2
Input Voltage(V):
DC24V
Lamp Luminous Flux(lm):
2400~3520lm
Lamp Luminous Efficiency(lm/w):
75
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP52
Certification:
CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP3528W-66-700
Size::
600*600mm / 1.97 x 1.97ft
Power::
42W(White), 52W(RGB), 43W(Bi-Color)
Color::
2400-7500K
Certification::
CE [EMC,LVD] RoHS
Input Voltage:
DC24V
Luminous Flux::
2400~3520lm
LED Type::
LED Panel light
View Angle::
120 degree
Base Material::
Aluminum Alloy
Warranty::
2 years
Lamp Power(W):
42
Supply Ability
Supply Ability:
2500 Piece/Pieces per Week 600*300mm available.
Packaging & Delivery
Packaging Details
each led panel light [ 600 * 600mm ] is 74 * 65 * 6cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 68 * 36 * 77cm.
Port
Shenzhen China
Lead Time :
Within 8-10 days after receiving the payment



Product Description

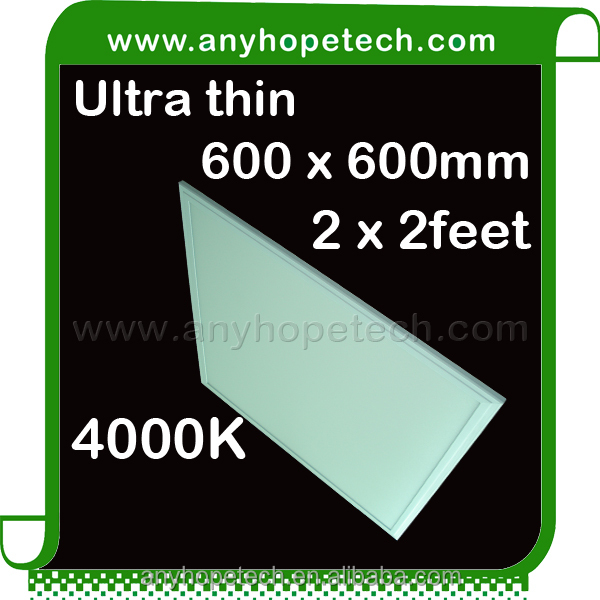

High CRI>90 4000K color temperature 60x60 lights for easy installation

Model:   AH-LP3528W-66-700

  • 100% Brand New & High Quality!
  • he special color available to meet different requirements.
  • Constant current and constant voltage
  • No mercury,UV,IR and other toxic substances, it is environment-friendly.

  AH-LP3528-66-57

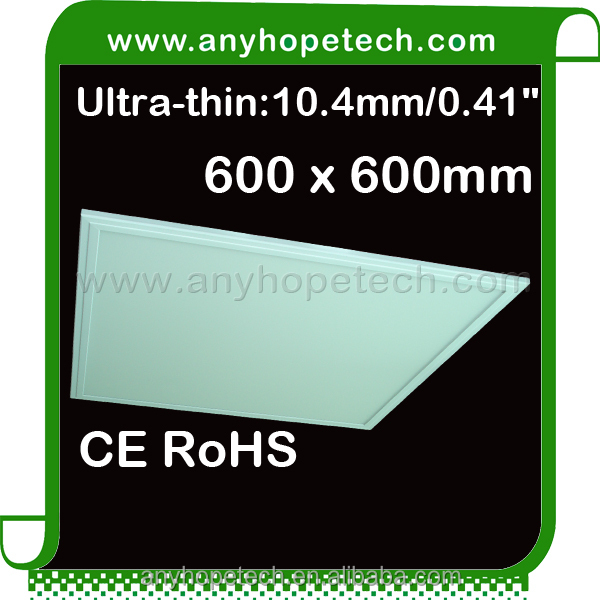

Ultra-thin Dimmable LED Panel Lights 600 x 600mm / (1.97 x 1.97ft)



Can be Constant Current Style, Input Voltage: DC55~70V(700mA).



Shell Material: Aluminium Alloy



LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: >80



CRI: >90 are available.



Up to 60% energy saving.



RGB, Warm White & cool white, natural white are available !



AH-LP3528-66-60





Color

Color
Temperature

Lumen Flux

Power
(W)

Voltage
(DC)

RGB

/

     Red: 432LM
     Green: 864Lm
     Blue: 540Lm

52

24V

Cool White

6000K +

3520Lm

42

White

4000~6000K

3466Lm

Warm White

2400~4000K

2440Lm

Bi-Color

Warm White ~ Cool White
2400~6000K

Max 2400Lm

43







AH-LP3528-66-700 size

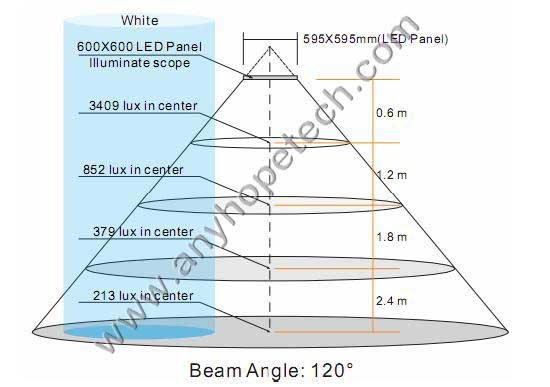

AH-LP3528-66-700 lux







Size

Lumen Flux & Color

Power

(W)

Voltage
(DC)

300 x 300mm

1 x 1 ft

478~700 Lumen

10W(White, Cool White)

13W(RGB,Bi-Color)

24V

600 x 300mm

2 x 1 ft

1124~1650 Lumen

22W(White, Cool White,

Bi-Color)

26W(RGB)

600 x 600mm

2 x 2 ft

>  2400~3520 Lumen

42W(White, Cool White)

43W(Bi-Color)

52W(RGB)

1200 x 600mm

4 x 2 ft

> 3580~4850 Lumen

52W(RGB)

85W(White, Cool White)





Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)

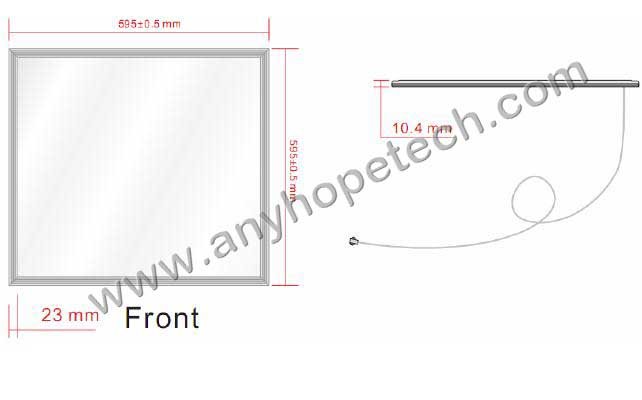

Panel Size: 595 x 595 x 10.4mm / (23.43 x 23.43 x 0.41inches)





AH-LP3528-66-55







 Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.

Panel Light Testing





Installation way:  Suspending/Embedded/Wall hung





empeded installation



Panels Installation Instruction







LED Lumen Attenuation:



Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2





Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

led panel connection







Company Information

             Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

           Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.





Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number









FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.
