High performance good price bicolor 240leds double led strip

FOB Reference Price:Get Latest Price
US $6.99-7.99 / Meters | 5 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528
Type:
Flex LED Strips
Input Voltage(V):
DC24V
Lamp Power:
26.4W/0.8M, 158.4W/Roll
Lamp Luminous Flux(lm):
2079(White), 1795(Warm White)
CRI (Ra>):
85
Color Temperature(CCT):
3000-6000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB+SMD3528
Certification:
CE, EMC, FCC, LVD, RoHS
Emitting Color:
Bi-Color
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-3528W-24-360Q
Input voltage:
24vdc
LED Type::
SMD3528, Quad Row, Bi-Color
IP Protection::
IP20, IP65
Color::
White,Warm White,Cool White
Color Temperature:
3000-6000K
View angle::
120 degrees
Dimension::
4800*28*2.2mm /189*1.10*0.09inches
Power::
26.4W/0.8M, 158.4W/Roll
Lumen::
2079(White), 1795(Warm White)
Warranty::
2 years
Supply Ability
Supply Ability:
20000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
4.8 meters / roll
1 roll / anti-static bag
Weight: 0.38kgs/Roll
Package: 7Rolls/Carton
Port
Shenzhen China
Lead Time :
Within 3-5 working days after receiving the payment.



Product Description

High performance good price bicolor 240leds double led strip

Model: AH-3528W-24-360Q

  • Superbright 3528 SMD top LED, high intensity and reliability.
  • Low power consumption
  • Widely used for home decoration use, hotels, clubs, shopping malls





AH-3528W-24-360Q-IP20-24





lexible LED Light Stripe - 3528SMD 360LEDs Quad Row



LED Type:  3528SMD, Taiwan Chip - Epistar



LED QTY: 360LEDs/0.8M, 4.8Meters/Roll, 2160LEDs/Roll,2160LEDs/15.75Ft



Max Lumens per LED:

3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)



Color Temperature:

2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K



AH-3528W-24-360Q-01-NEW

AH-3528W-24-360Q-02-NEW

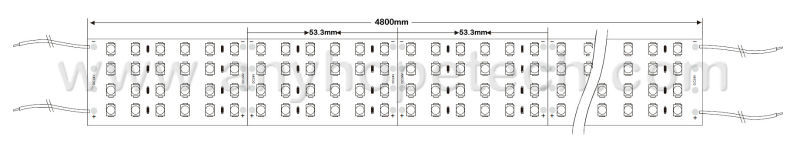

Pitch: 53.3mm / 2.10"

Cable length: 35cm / 13.78"

26.4W/Meter, 1.1A/M(24VDC), 126.72W/Roll

DC24V (Every 20 LEDs cut at 53.3mm / 2.10")

PCB Color: Brown, White, Black (Optional)


AH-3528W-24-360Q-03-NEW



Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/4.8M)

Voltage
(DC)

Power
(W/M)

AH-3528WW-24-360Q

Warm White

1500~1710

360

Quad Row

24V26.4

AH-3528W-24-360Q

White

1920~1980



Note: Amber, Orange, Pink, Purple color are optional.

Max Length Connection:
4.8 Meters, Feed power to both ends at every 4.8 meters to minimize the voltage drop.


AH-3528W-24-360Q-IP20-18





LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

28 x 2.2mm
1.10 x 0.09"

AH-3528-24-360Q


Free end cap: 1 Piece / Meter  (Opitional)

Free mounting clip: 2 Pieces / Meter  (Opitional)

View angle: 120 degree

CRI: >80,

CRI: >90 with high brightness are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ + 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~ + 122ºF)

Warranty: 2 years

Certification: CE RoHS





AH-3528W-24-360Q-IP20-10



Max Length Connection: 4.8 Meters, Feed power to both ends at every 4.8 meters to minimize the voltage drop.


Operating driver: LED Transformer with DC24V output



Compatible with Dimmer





The flexible single color strip connect to power supply:



AH-3528W-24-360Q-
