Latest products high power super slim only 10.4mm indoor led panel 620x620

FOB Reference Price:Get Latest Price
US $64.99-69.99 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD5050
Warranty(Years):
2
Input Voltage(V):
24V
Lamp Luminous Flux(lm):
R:446 G:892 B:558lm
Lamp Luminous Efficiency(lm/w):
80
CRI (Ra>):
75
Color Temperature(CCT):
RGB
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP54
Certification:
CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP5050RGB-622
Constant voltage::
DC24V
Color::
White , RGB Colorful
Power::
51W( ±10%)
Size::
622 * 622mm
Thickness::
10.4mm
LED Type::
SMD5050 or 3528 LED chip
Lumens::
R:446 G:892 B:558lm
Warranty::
2 years
Certification::
CE RoHS
IP protection::
IP20,IP65,IP67,IP68
Lamp Power(W):
51
SupplyAbility
SupplyAbility:
1500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
each led panel light [ 622 * 622mm ] is 68* 68 * 6cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 72*72*34cm.
Port
Shenzhen China
Lead Time :
Within 5-7 days after receiving payment.
Product Description

Latest products high power super slim only 10.4mm indoor led panel 620x620

Model: AH-LP5050RGB-622

Material: high transmission Acrylic +  high quanlity aluminum alloy frame



622-21





622-29





Featuring high quality, reliability and color uniformity.



Work on  AC100~240V 50/60Hz, 51W ±10%.



Model No.:  AH-LP5050RGB-622



Input Voltage:  AC100~240V


Working Voltage: DC24V


LED Source: SMD5050



Power:   51W


Lumen:  3886Lm (White)


Color: White, RGB Colorful





622 white.jpg




Color Temperature: 2500-4000K, 4000-7000K


Uniformity: ≥95%(white)





Radiation diagram.jpg









Operating temperature: -20°C-50°C


View Angel: 120 degree



Certification: CE ( EMC, LVD ) RoHS


Life expectancy: ≥50000Hours


Dimension: 622*622*10.4mm





622x622 size.jpg









622 back.jpg







Our website:  http://www.anyhopetech.com



622-31622-1









622-28





Size: 300*300mm, 311*311mm,  622*311mm, 600*300mm,

          600*600mm, 1200*300mm, 1200*600mm available.





led panel connection.jpg











led panel rgb connection.jpg



Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.

    Installation way: Suspending/Embedded/Wall hung


    Panels Installation Instruction.jpg



    Installation on wall.jpg




    empeded installation.jpg

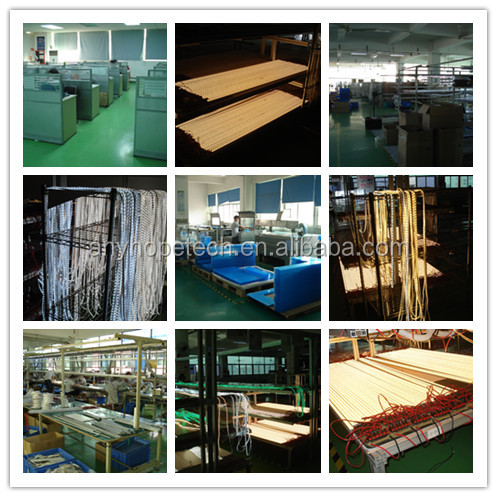

  • Factory:
