Super brightness good price 600x300 frameless led panel

FOB Reference Price:Get Latest Price
US $18.99-20.99 / Pieces | 1 Piece/Pieces 900*300mm available. (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD3528
Warranty(Years):
2
Input Voltage(V):
24VDC
Lamp Luminous Flux(lm):
1650Lm
Lamp Luminous Efficiency(lm/w):
75
CRI (Ra>):
80
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP54
Certification:
CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP3528WW-63-350
Size::
600*300mm / 23.6*11.8 inches
Thickness::
10.4mm/0.41 inches
Power::
22watt
Color::
Warm White, White, Cool White
Color Temperature::
2400-4000K,4000-6000K,6000-7000K
Lumen::
1124~1650luemn
Weight::
1.9kgs/pc; 4.18lbs/pc
LED Type::
SMD 3528
Warranty::
2 years
Voltage::
24v
Lamp Power(W):
22
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Each panel in one box: Size:62*7*36CM
5pcs in one outer carton, size: 37*32*70CM
Port
Shenzhen China
Lead Time :
Within 5-7 working days



Product Description

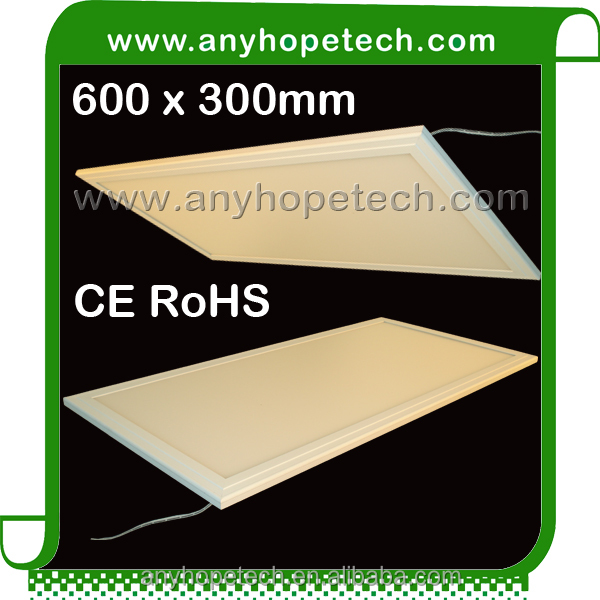

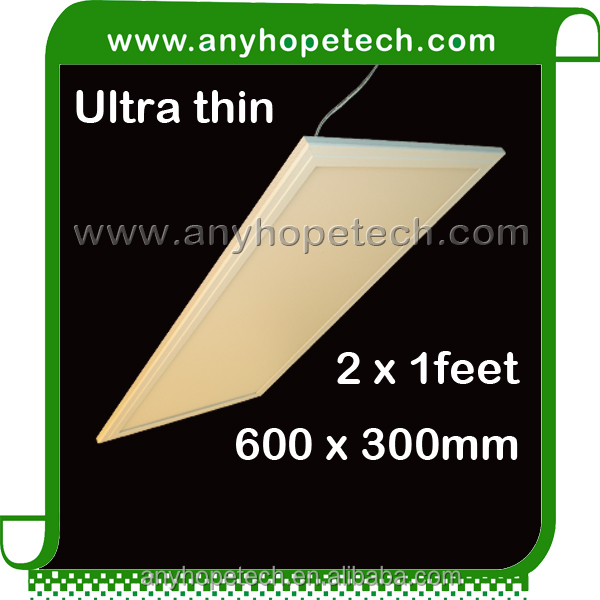

Super brightness good price 600x300 frameless led panel

   Model:   AH-LP3528WW-63-350



    Commercial Lighting, Restaurants & Hotels, Shopping malls
   Office Lighting, Retail & Grocery Stores, Showrooms, Airports



Panellight-600x300-24





Model:   AH-LP3528WW-63-350

 (Constant Voltage can be dimmable)

Input Voltage: AC100~240V
Working Voltage: DC24V
LED Source: SMD3528
Power: 22W
Color: Warm White, white
Color Temperature: 2400-4000K, 4000-7000K
Lumen: 1650Lm (White),1124Lm (Warm white)
View Angle: 120 degrees
Certification: CE, RoHS
Dimension: 595*295*10.4mm / 23.4*11.6*0.40 inches
Packing Size: 670*350*60mm / 26.4*13.8*2.4 inches
Weight: 1.9kgs/pc; 4.18lbs/pc; 2pcs/Carton
Fixture Material: Aluminum Housing
Installation way: Suspending / Embedded / Wall hung





 Panellight-600x300-23








Meterial: high transmission Acrylic,and high quantity aluminum alloy frame
CE RoHS



Installation way:  Suspending/Embedded/Wall hung



6-3 light distribution


 Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.
6-3mount2



6-3 mount1


6-3 connection






Company Information

            Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products

in Shenzhen China.

         Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.









Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,  FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number

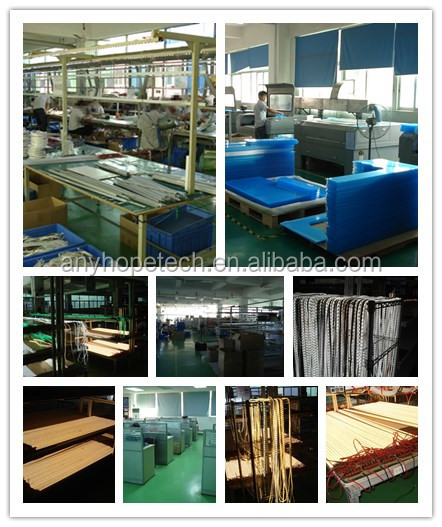

 Factory:
