Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: 3528SMD Epistar
  • Type: Flex LED Strips
  • Input Voltage(V): DC12V
  • Lamp Power: 48Watt
  • Lamp Luminous Flux(lm): 960lm
  • CRI (Ra>): 88
  • Color Temperature(CCT): 2200-10000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD3528
  • Certification: CE, EMC, FCC, LVD, RoHS, UL
  • Emitting Color: Blue
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-3528W-24-120
  • Working Voltage:: DC24V
  • Power:: 9.6W/Meter, 48W/Roll
  • PCB Color:: White or Brown
  • LED QTY:: 120LEDs/Meter,600LEDs/Roll
  • View Angle:: 120 degrees
  • Color:: Warm White, Cool White, Red, Pink, Yellow, Green, Blue
  • Certification:: CE RoHS
  • Waterproof:: IP20,IP68
  • Weight:: 0.14kgs/Roll
  • Life: 50,000h

Packaging & Delivery

Packaging Details 0.14kgs/Roll
25Rolls/Carton
Delivery Time Within 5-7 days after receiving the payment.



Product Description

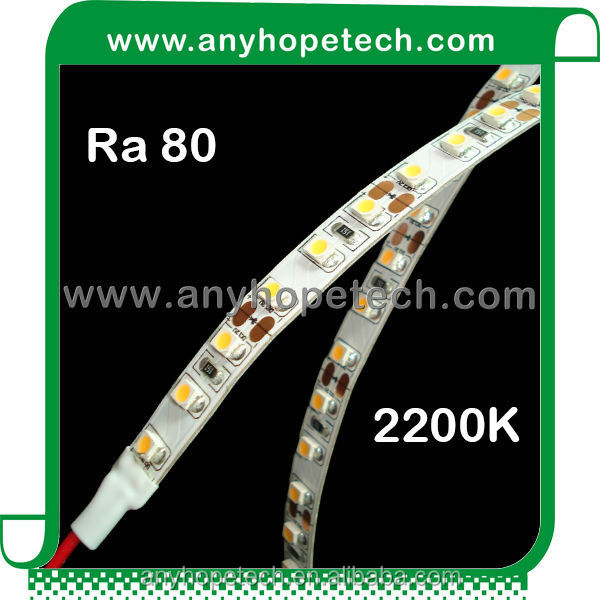

 CE RoHS outdoor dc24v ip68 LED Flex Strip 600x 3528 SMD

   Model: AH-3528WW-24-120

   Power: 9.6W/Meter, 0.8A/M(12VDC), 0.4A/M(24VDC), 48W/Roll







SMD3528, 24VDC, 120leds/Meter, 600leds / Roll, 9.6W/Meter, 48W/Roll



Flexible LED Light Stripe - 3528SMD 120LEDs



LED Type: 3528SMD, Taiwan Chip


LED QTY: 120LEDs/Meter, 5Meters/Roll, 600LEDs/Roll, 600LEDs/16.40Ft

Max Lumens per LED:
3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K



~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~




Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-3528R-12/24-120

Red

360

120

12V
24V

9.6

AH-3528Y-12/24-120

Yellow

360

AH-3528B-12/24-120

Blue

420

AH-3528G-12/24-120

Green

600

AH-3528W-12/24-120

White

840

AH-3528WW-12/24-120

Warm White

720


Super Bright Warm White: 840Lm/Meter

Super Bright Cool White: 960Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.








Pitch: 8.3mm / 0.33"

DC12V (Every 3 LEDs cut at 25mm / 0.98")

DC24V (Every 6 LEDs cut at 50mm / 1.97")

PCB Color: Brown, White, Black (Optional)

Dimension:  5000*8*2.2mm /195*0.31*0.09inches



Cable length: 35cm / 13.78"

Free end cap: 1 Piece / Meter (Opitional)

Free mounting clip: 2 Pieces / Meter (Opitional)



LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 2.2mm

0.31 x 0.08"

AH-3528-12/24-120

Epoxy / Silicone series

IP65

8 x 2.5mm

0.31 x 0.09"

AH-E3528-12/24-120

Silicone tube series

IP67

10 x 4mm

0.39 x 0.16"

AH-F3528-12/24-120

U-shape silicone series

IP67

10 x 5mm

0.39 x 0.19"

AH-U3528-12/24-120

PVC Tube + Epoxy series

IP68

10 x 4mm

0.39 x 0.16"

AH-G3528-12/24-120

All silicone series

IP68

10 x 5mm

0.39 x 0.19"

AH-S3528-12/24-120



 View angle: 120 degree
CRI: 78~80 (White), 70~75 (Warm White)
CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)
Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)
Warranty: 2 years
Certification: CE RoHS



Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC12V/DC24V output

Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer

The flexible single color strip connect to power supply:








Company Information



        Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services



Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.





Step (2): Sales Contract or Proforma Invoice We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.





Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)





Step (4): Production Process





Step (5): Package and Shipping





Step (6): Air Way Bill Number









Packaging & Shipping

 5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton








  • Accessories(Optional):
