Professional production bi-color 120leds 3528 led strip

FOB Reference Price:Get Latest Price
US $3.99-4.49 / Meters | 5 Meter/Meters 25 Reels / Carton (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528
Type:
Flex LED Strips
Input Voltage(V):
DC24V
Lamp Power:
48Watt
Lamp Luminous Flux(lm):
4200lm
CRI (Ra>):
85
Color Temperature(CCT):
2000-6500K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB + SMD3528
Certification:
CE, EMC, FCC, LVD, RoHS
Emitting Color:
Bi- color
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-3528-24-120
LED Qty::
120LEDs/Meter
Power::
9.6W/Meter, 48W/Reel
Certification::
CE RoHS
Size::
5000*8*2.2mm /196*0.31*0.09inches
Color::
Red, Green, Blue, Yellow, White, Warm White, Pink
SupplyAbility
SupplyAbility:
30000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
5 meters / Reel
Each reel in anti-static bag,
Weight: 0.195kgs/Roll
Package: 25Reels/Carton
Port
Shenzhen China
Lead Time :
Within 5-7 days after receiving the payment.



Product Description

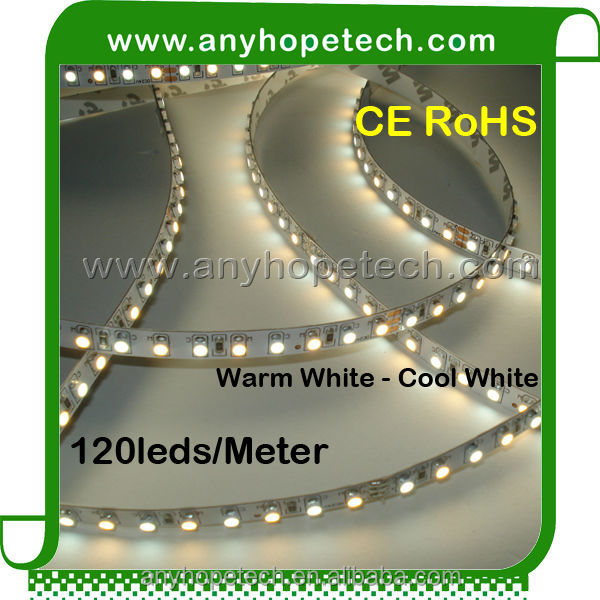

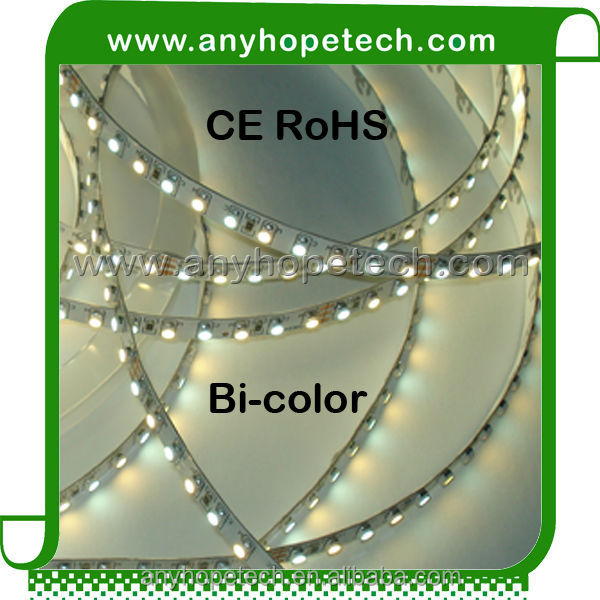

Professional production bi-color 120leds 3528 led strip

 Model: AH-3528-24-120



3528-120leds-singleline-Bicolor-19



Working Voltage:  DC24V



Power: 9.6W/Meter, 48W/Roll

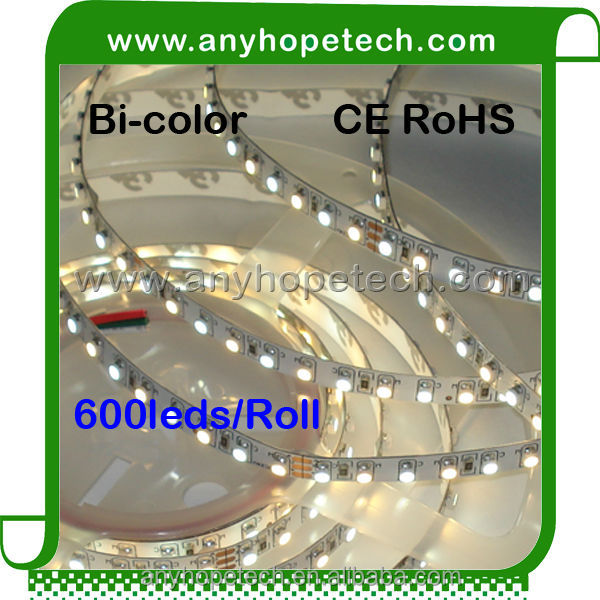

LED QTY: SMD3528 120LEDs/Meter,600LEDs/Reel





3528-120-Bi-color--2

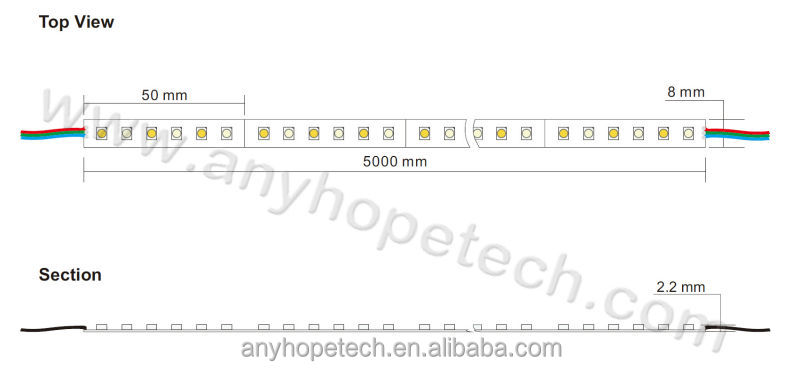

Dimension:  5000*8*2.2mm /195*0.31*0.09inches



PCB Color: Brown, White, Black (Optional)



Cable length: 35cm / 13.78"



Free end cap: 1 Piece / Meter (Opitional)



Free mounting clip: 2 Pieces / Meter (Opitional)



Color: Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple





3528-120-Bi-color--6-2



LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 2.2mm

0.31 x 0.08"

AH-3528-12/24-120

Epoxy / Silicone series

IP65

8 x 2.5mm

0.31 x 0.09"

AH-E3528-12/24-120

Silicone tube series

IP67

10 x 4mm

0.39 x 0.16"

AH-F3528-12/24-120

U-shape silicone series

IP67

10 x 5mm

0.39 x 0.19"

AH-U3528-12/24-120

PVC Tube + Epoxy series

IP68

10 x 4mm

0.39 x 0.16"

AH-G3528-12/24-120

All silicone series

IP68

10 x 5mm

0.39 x 0.19"

AH-S3528-12/24-120




 3528-120leds-singleline-Bicolor-24

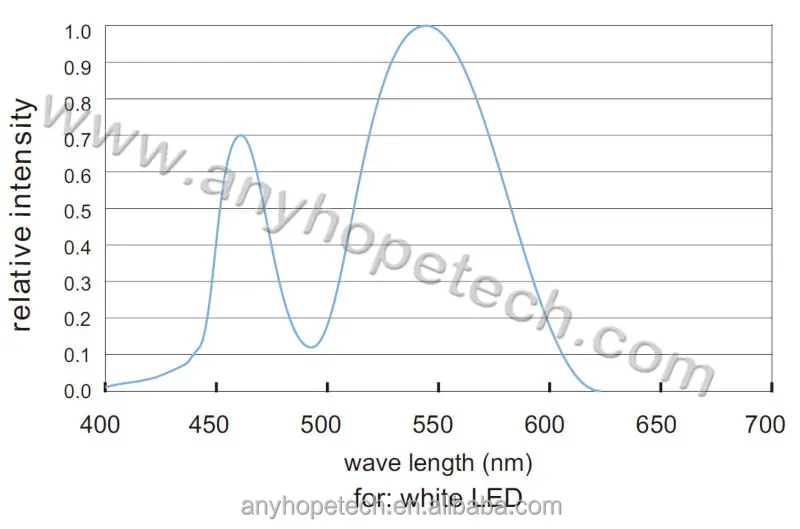

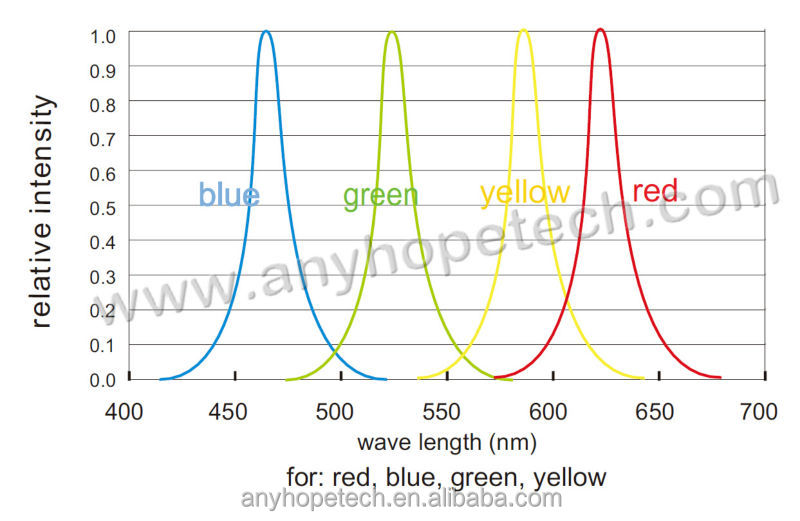

Max Lumens per LED: 3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

 3528-120-Bi-color--3-2
3528-120-Bi-color--4-2

Color optional:
Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple



Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-3528R-12/24-120

Red

360

120

24V

9.6

AH-3528Y-12/24-120

Yellow

360

AH-3528B-12/24-120

Blue

420

AH-3528G-12/24-120

Green

600

AH-3528W-12/24-120

White

840

AH-3528WW-12/24-120

Warm White

720



Super Bright Warm White: 840Lm/Meter

Super Bright Cool White: 960Lm/Meter are available.

3528-120-Bi-color--light-diatributuion-2

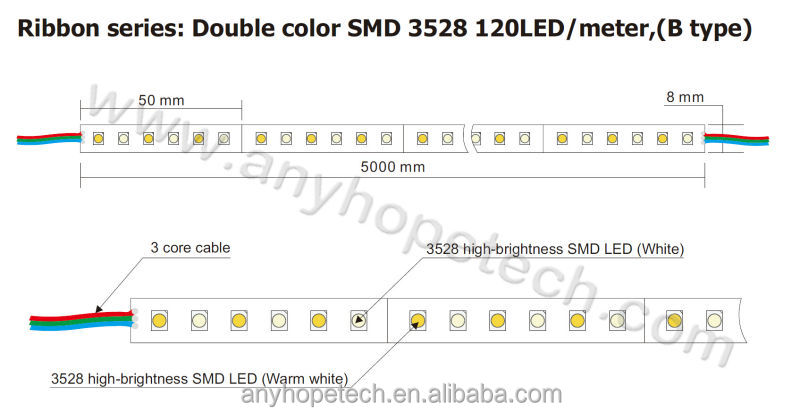

Pitch: 8.3mm / 0.33"

DC24V (Every 6 LEDs cut at 50mm / 1.97")

3528-120leds-singleline-Bicolor-47


CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 2 years

Certification: CE RoHS



 3528-120leds-singleline-Bicolor-01



Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC12V/DC24V output



Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer

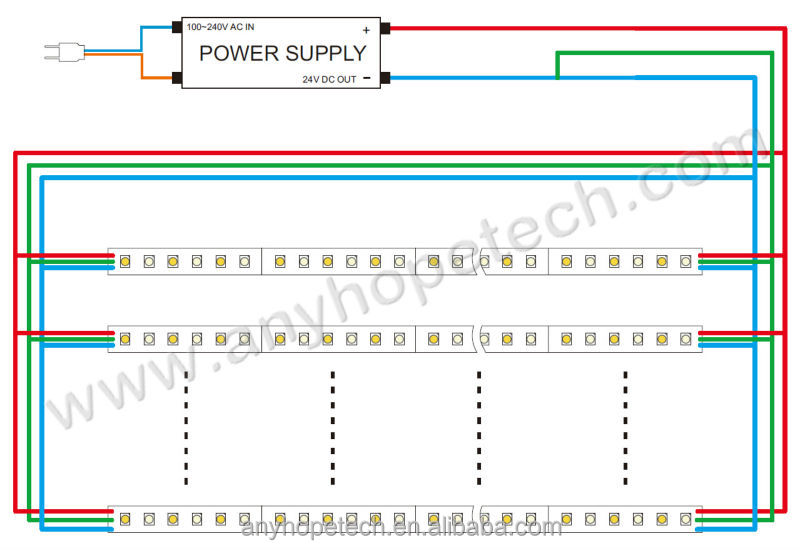

The flexible single color strip connect to power supply:



3528-120-Bi-color--5-2
