Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD5630
  • Type: Flex LED Strips
  • Input Voltage(V): DC24V
  • Lamp Power: 133.65W
  • Lamp Luminous Flux(lm): 11250lm
  • CRI (Ra>): 80
  • Color Temperature(CCT): 2700-6000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD5630
  • Certification: CE, EMC, FCC, RoHS
  • Emitting Color: Warm White
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-5630-24-75
  • Working Voltage:: DC24V
  • Power:: 24.75W/meter
  • LED QTY:: 75LEDs/1.08Meter,375LEDs/Reel
  • View Angle: 120 degrees
  • Lumens:: Max:2250lm /1.08 Meter
  • LED Type:: SMD5630
  • Dimension:: 5040 * 10 * 1.6mm / 198.43 x 0.39 x 0.063"
  • Waterproof :: IP20 IP67
  • LED Chip:: Epistar
  • Warrranty:: 2 years

Packaging & Delivery

Packaging Details 5.04 meters / roll,1 roll / anti-static bag
Weight: 0.18kgs/Roll
Package: 25Rolls/Carton
Delivery Time Within 3-5 working days after receiving the payment.



Product Description

2015 China new products 75LEDs 124W 5630 led strip black pcb

Model: AH-5730WW-24-120



  • Emergency & security lighting, advertisement sign lighting
  • Decorative lights for holiday, event, show exhibition
  • Applicable for automobile and bicycle decoration, border or contour lighting





Welcome to visit Our website:



http://www.anyhopetech.com



LED Type: SMD5630



Working Voltage:  DC24V


Power:                 24.75W/Meter, 133.65Watt/Reel


PCB Color:            White  or Brown


LED QTY:             SMD5630, 75LEDs/Meter,375LEDs/Reel


Length:               5.04Meters/Reel


View Angle:         120 Degrees


WaterProof:         IP20 ; IP67


Color:                 Warm white, White  2700 ~ 6000K


Dimension:         5040 x 10 x 1.6mm / 198.43 x 0.39 x 0.063"

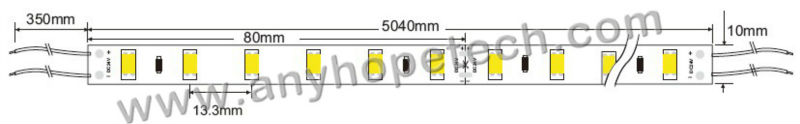

 Pitch: 13.3mm / 0.52" (Every 6 LEDs cut at 80mm / 3.15")






















Working Temperature:  -20°C~50°C



Weight:             0.15Kgs/Reel



Package:          25Reels/Carton




Model numberColorLumen/MeterSizeLED QTY /MeterVoltagePower /MeterIP Protection
AH-5630W-24-75White 1950~22505040*10*1.6mm75DC24V24.75WIP20
AH-5630WW-24-75Warm  White1725~19505040*10*1.6mm75DC24V24.75WIP20





For White :





















Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs



Warranty: 2 years



Certification: CE RoHS WEEE


Operating driver: LED Transformer with DC24V output


Compatible with Dimmer

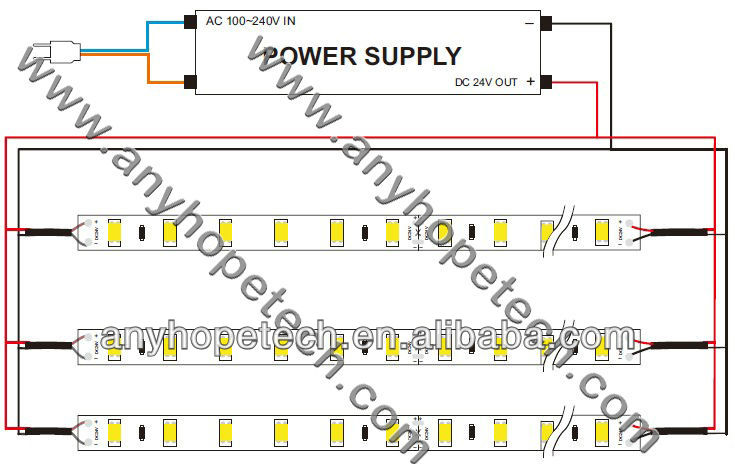

               The flexible single color strip connect to power supply:









LED Strips should not be used in sealed or hot place, please make sure the heat emitting is good for LEDs.
