Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD5050
  • Type: Flex LED Strips
  • Input Voltage(V): DC24V
  • Lamp Power: 115W/Roll
  • Lamp Luminous Flux(lm): 2016Lm/Meter
  • CRI (Ra>): 80
  • Color Temperature(CCT): 3000-6000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD5050
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Emitting Color: Warm White
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-E5050WW-24-96D
  • Voltage: DC24V
  • Power: 23W/Meter, 115W/Roll
  • LED QTY: 96LEDs/Meter, 480LEDs/Reel
  • View angle: 120 degree
  • Warranty: 2 years
  • IP Protection: IP20, IP65, IP67, IP68
  • PCB Color: Brown, White, Black (Optiona)
  • LED Type:: SMD5050, Dual row, waterproof strip light
  • Certification:: CE RoHS
  • Warranty:: 2 years

Packaging & Delivery

Packaging Details Package:
5Meters/Roll, 1 Roll into anti-static bag
Delivery Time Within 5-7 working days after receiving the payment.



Product Description

China hot selling 96leds 24v waterproof led strip 5050 warm dual

Model:AH-E5050WW-24-96D







Flexible LED Strips - 5050SMD 96LEDs

LED Type: 5050SMD, Taiwan Chip - Epistar

LED QTY: 96LEDs/Meter, 5Meters/Roll, 480LEDs/Roll, 480LEDs/16.40Ft

Pitch: 20.83mm / 0.82"

Power: 23W/Meter, 0.96A/M(24VDC), 115W/Roll

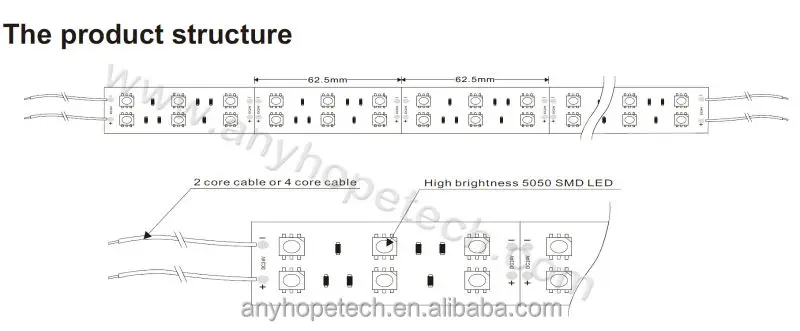

DC24V (Every 6 LEDs cut at 62.5mm / 2.46")



Max Lumens per LED:
9lm(Red), 9lm(Yellow), 15lm(Green), 10.5lm(Blue), 22.5lm(White), 21lm(Warm White)


Color Temperature:
2000k, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K











PCB Color: Brown, White, Black (Optional)

Super Bright Warm White:  2112Lm/Meter

Super Bright Cool White:     2256Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.

Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize
the voltage drop.





Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-5050RGB-24-96

RGB

R288,G480,B336

96

24V

23

AH-5050R-24-96

Red

864

AH-5050Y-24-96

Yellow

864

AH-5050B-24-96

Blue

1008

AH-5050G-24-96

Green

1440

AH-5050W-24-96

White

2160

AH-5050WW-24-96

Warm White

2016







Cable length: 35cm / 13.78"

Free end cap: 1 Piece / Meter (Opitional)

Free mounting clip: 2 Pieces / Meter (Opitional)



LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

20 x 2mm

0.79 x 0.08"

AH-5050-24-96D

Silicone series

IP65

20 x 2mm

0.79 x 0.08"

AH-E5050-24-96D

U-shape silicone series

IP67

20 x 2.5mm

0.79 x 0.09"

AH-F5050-24-96D


View angle: 120 degree

CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ + 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~ + 122ºF)

Warranty: 2 years

Certification: CE RoHS








Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC24V output



Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer






The flexible strip(single color) connect to power supply:
