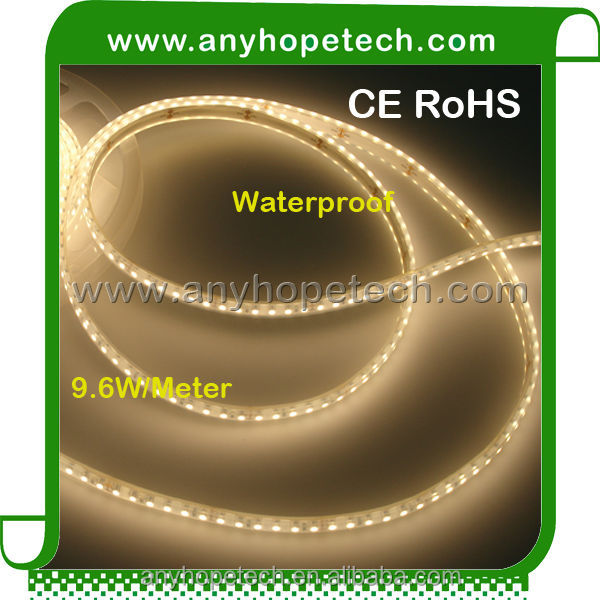

waterproof IP65 24 volt warm white 2400K single color flexible smd 3528 led strip light

FOB Reference Price:Get Latest Price
US $2.49-3.99 / Meters | 5 Meter/Meters 25 Reels / Carton (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528 epistar chip
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
48Watt
Lamp Luminous Flux(lm):
4200Lm
CRI (Ra>):
85
Color Temperature(CCT):
2000-10000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB + SMD3528
Certification:
C-tick, CE, EMC, Energy Star, ETL, FCC, LVD, RoHS, SAA, SASO, UL
Emitting Color:
Warm White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-3528WW-12-120
LED Qty::
120LEDs/Meter
Power::
9.6W/Meter, 48W/Reel
Certification::
CE RoHS
Size::
5000*8*2.2mm /196*0.32*0.09inches
Color::
Red, Green, Blue, Yellow, White, Warm White, Pink
LED Type::
SMD3528, digital led strip
LED QTY::
120LEDs/Meter, 600LEDs/Reel
View Angle::
120 degree
Voltage::
DC12V
Warranty::
2 years
Supply Ability
Supply Ability:
30000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
5 meters / Reel
Each reel in anti-static bag,
Weight: 0.195kgs/Roll
Package: 25Reels/Carton
Port
Shenzhen China
Lead Time :
Within 5-7 days after receiving the payment.



Product Description

waterproof IP65 24 volt warm white 2400K single color flexible smd 3528 led strip light

Model: AH-3528WW-24-120

  • Extensively applied in Backlighting, concealed lighting, channel letter lighting
  • Decorative lights for holiday, event, show exhibition
  • Architectural decorative lighting, boutique atmosphere lighting

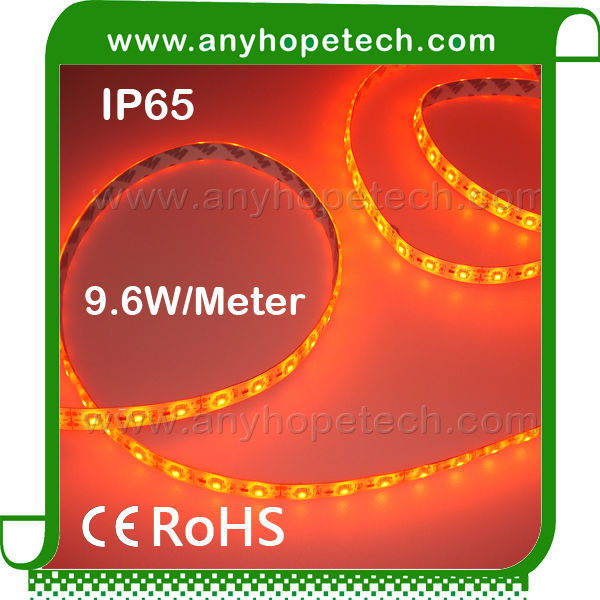

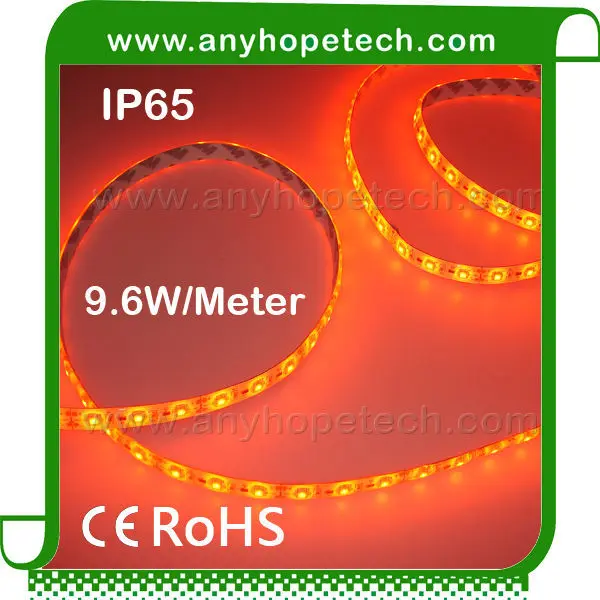

SMD3528-120LED IP65 Orange-24



Working Voltage:  DC24V



Power: 9.6W/Meter, 48W/Roll



LED QTY: SMD3528 120LEDs/Meter,600LEDs/Reel



Length:  5Meters / Reel



View Angle: 120 Degrees



WaterProof: IP20, IP65, IP67, IP68





LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 2.2mm

0.31 x 0.08"

AH-3528-12/24-120

Epoxy / Silicone series

IP65

8 x 2.5mm

0.31 x 0.09"

AH-E3528-12/24-120

Silicone tube series

IP67

10 x 4mm

0.39 x 0.16"

AH-F3528-12/24-120

U-shape silicone series

IP67

10 x 5mm

0.39 x 0.19"

AH-U3528-12/24-120

PVC Tube + Epoxy series

IP68

10 x 4mm

0.39 x 0.16"

AH-G3528-12/24-120

All silicone series

IP68

10 x 5mm

0.39 x 0.19"

AH-S3528-12/24-120



Color: Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple


Max Lumens per LED: 3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Color optional:
Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple


34-3528-24-120



Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-3528R-12/24-120

Red

360

120

12V
24V

9.6

AH-3528Y-12/24-120

Yellow

360

AH-3528B-12/24-120

Blue

420

AH-3528G-12/24-120

Green

600

AH-3528W-12/24-120

White

840

AH-3528WW-12/24-120

Warm White

720



Super Bright Warm White: 840Lm/Meter

Super Bright Cool White: 960Lm/Meter are available.

Pitch: 8.3mm / 0.33"

DC12V (Every 3 LEDs cut at 25mm / 0.98")

DC24V (Every 6 LEDs cut at 50mm / 1.97")


120 cut.jpg





3528-120leds-IP68-01


Dimension:  5000*8*2.2mm /195*0.31*0.09inches



PCB Color: Brown, White, Black (Optional)



Cable length: 35cm / 13.78"



Free end cap: 1 Piece / Meter (Opitional)



Free mounting clip: 2 Pieces / Meter (Opitional)


CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 2 years

Certification: CE RoHS


29-3528-24-120





Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC12V/DC24V output



Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer



The flexible single color strip connect to power supply:single



Company Information



           Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

          Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.





Our Services



Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.



Step (2): Sales Contract or Proforma Invoice.

We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.



Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)



Step (4): Production Process



Step (5): Package and Shipping



Step (6): Air Way Bill Number









FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.









Packaging & Shipping

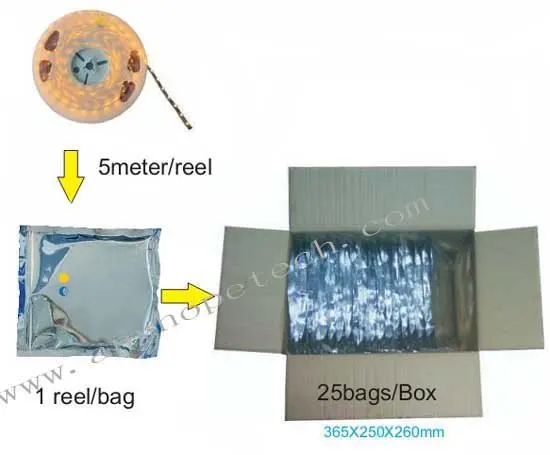

   5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton
