Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD3528
  • Type: Flex LED Strips
  • Input Voltage(V): 12V
  • Lamp Power: 96W/Roll
  • Lamp Luminous Flux(lm): 8400Lm
  • CRI (Ra>): 82
  • Color Temperature(CCT): 2000-10000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD3528
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Emitting Color: Warm White
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-3528-12-240
  • Input voltage: 12V
  • Dimension:: 5000*10*2.2mm /195*0.39*0.09inches
  • color:: Red,Green,Blue,Yellow,White,Warm White,Pink,Purple
  • Color Temperature: 2000~10000K
  • view angle:: 120 degree
  • Power:: 96W/Roll
  • Certification:: CE RoHS
  • LED Type:: SMD3528
  • IP Protetion:: IP20, IP65, IP67
  • warranty:: 2 years

Packaging & Delivery

Packaging Details 5 meters / roll
1 roll / anti-static bag
Weight: 0.20kgs/Roll
Package: 25Rolls/Carton
Delivery Time Within 5-7 working days after receiving the payment.



Product Description

Ultra bright smd 3528 outdoor waterproof TIRAS LED 12V

Model: AH-3528-12-240



  • Emergency & security lighting, advertisement sign lighting
  • Decorative lights for holiday, event, show exhibition
  • Applicable for automobile and bicycle decoration, border or contour lighting







LED Type: 3528SMD, Taiwan Chip-Epistar



LED QTY: 240LEDs/Meter, 5Meters/Roll, 1200LEDs/Roll, 1200LEDs/16.40Ft



Max Lumens per LED:

3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

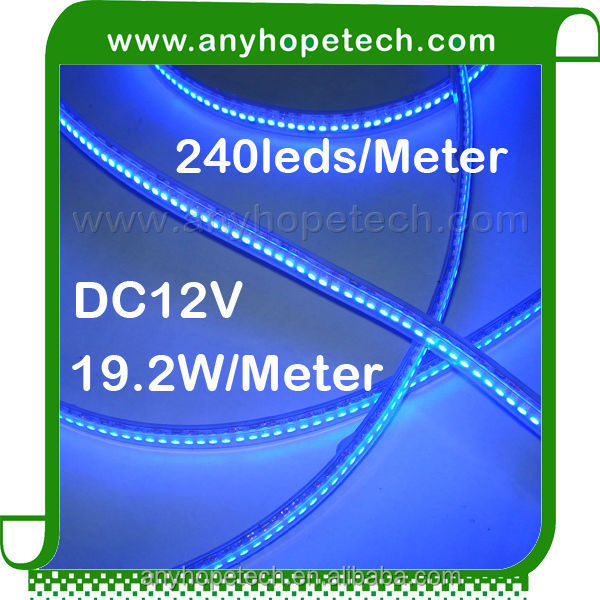

Power: 19.2W/Meter, 1.6A/M(12VDC), 96W/Roll

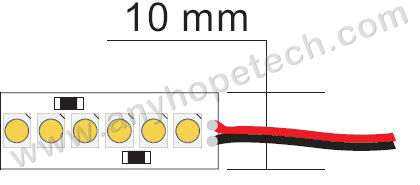

Pitch: 4.2mm / 0.17"

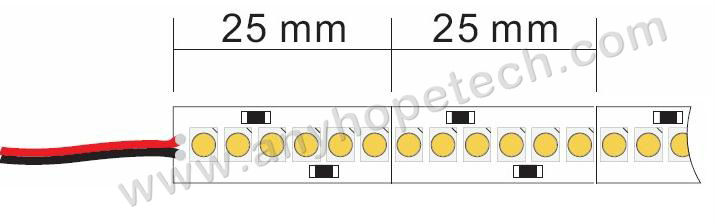

DC12V (Every 3 LEDs cut at 12.5mm / 0.49")



PCB Color: Brown, White, Black (Optional)



Dimension:   5000 x 10 x 2.2mm /195 x 0.39 x 0.09"















Model Number

Color

Typ.Flux
(LM/M)

(LEDs/M)

(DC)

(W/M)

AH-3528R-24-240-S

Red

720

240

12V

24V

19.2

AH-3528Y-24-240-S

Yellow

720

AH-3528B-24-240-S

Blue

840

AH-3528G-24-240-S

Green

1200

AH-3528W-24-240-S

White

1680

AH-3528WW-24-240-S

Warm White

1440







Super Bright Warm White: 1680Lm/Meter

Super Bright Cool White: 1920Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.

Cable length: 35cm / 13.78"

View angle: 120 degree

CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 2 years

Certification: CE  RoHS  WEEE








Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC24V output



Compatible with Dimmer

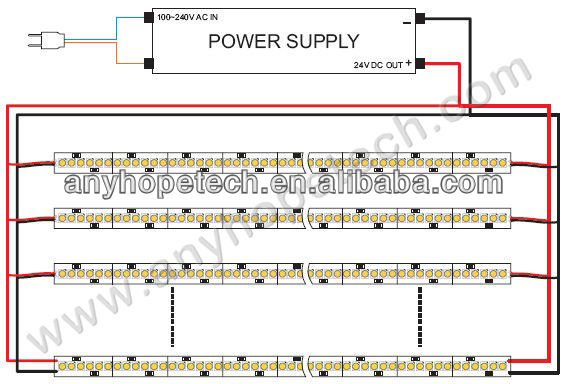

The flexible single color strip connect to power supply:










Company Information

         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.





Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, Fed, Ex, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number







FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.







Packaging & Shipping

    5 Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton



Accessories(Optional):



































































Certificate:


Factory:





Welcome to visit our website: www.anyhopetech.com

Transaction History of the Supplier

Below is the information about the supplier's transactions conducted via Alibaba.com. If you require further details regarding the transaction data, please contact the supplier directly.

Transaction Overview

Transactions

Transaction Details

This supplier has completedtransactions with buyers from .

Shipping Destination
Transaction Value
Transaction Date
Email to this supplier
China (Mainland)
Transaction Level:
Supplier Assessments:
The supplier supports Trade Assurance – A free service that protects your orders from payment to delivery.
Supplier's Trade Assurance Limit: US $
Learn More

1. Flexible LED Strip can be customized length.



2. Waterproof flexible led strip, we could make the final products with exactly color kelvin, not only LED color kelvin.



3. All the flexible LED strip with CRI>80 (Ra80), CRI>90 (Ra90).



4. We could match the exactly color with different orders if you want to mix different orders in same project.



5. Welcome to visit our website www.anyhopetech.com for more.
