CRI>80 85Watt 1200x600mm commercial led ceiling panel light

FOB Reference Price:Get Latest Price
US $109.99-119.99 / Pieces | 1 Piece/Pieces 600 x 1200mm, DC24V, 85W (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD3528
Warranty(Years):
2
Input Voltage(V):
DC24V
Lamp Luminous Flux(lm):
3580lm
Lamp Luminous Efficiency(lm/w):
60
CRI (Ra>):
80
Color Temperature(CCT):
Warm White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP52
Certification:
CE, FCC, LVD, RoHS, SAA, SASO, UL
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP3528WW-126
Panel size::
600 x 1200mm
Operating voltage::
DC24V
Power consumption::
85W
Light-emitting angle::
120 degree
Life time::
>50,000hrs
Color temperature::
2500-7000K
Lumen::
3580lm ( Warm White), 4850lm ( Cool White)
Certification::
CE RoHS
Cover Material:
Acrylic
Base Material:
Aluminum Alloy
Lamp Power(W):
85
Supply Ability
Supply Ability:
2000 Piece/Pieces per Week Can be dimmable
Packaging & Delivery
Packaging Details
Size: 1200 x 600mm
8.5kgs/piece
2pcs/carton.
Port
SHENZHEN China
Lead Time :
Within 5-7 working days



Product Description

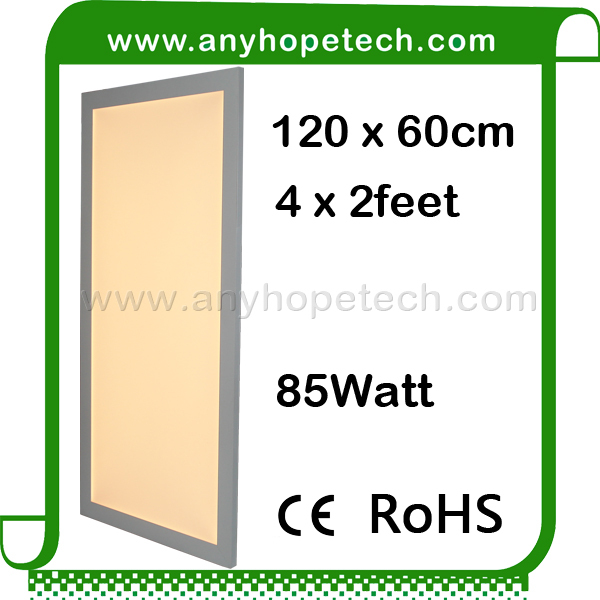

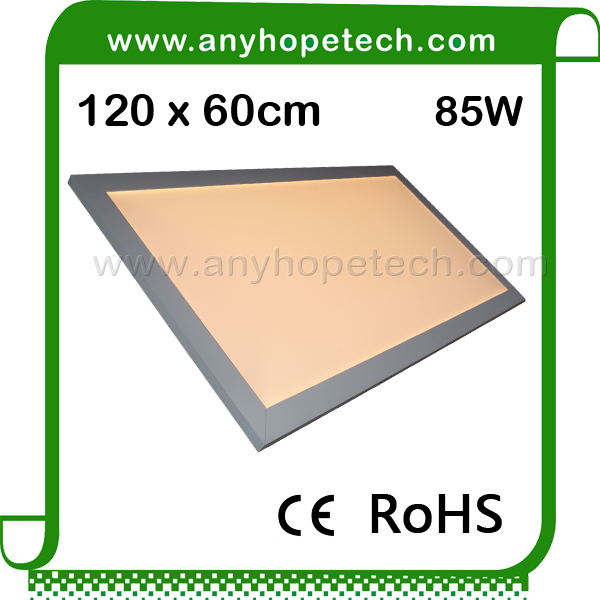

CRI>80 85Watt 1200x600mm commercial led ceiling panel light
Model: AH-LP3528WW-126
  • Green environmental protection, lead-free material ,conforming to RoHS.
  • The special color available to meet different requirements.
  • Constant current and constant voltage
  • No mercury,UV,IR and other toxic substances, it is environment-friendly.

AH-LP3528-126-ultrathin-19


Dimmable LED Panel Lights 1200 x 600mm / (3.94 x 1.97ft)



Shell Material: Aluminium Alloy



Thickness: 14mm / (0.41inches)

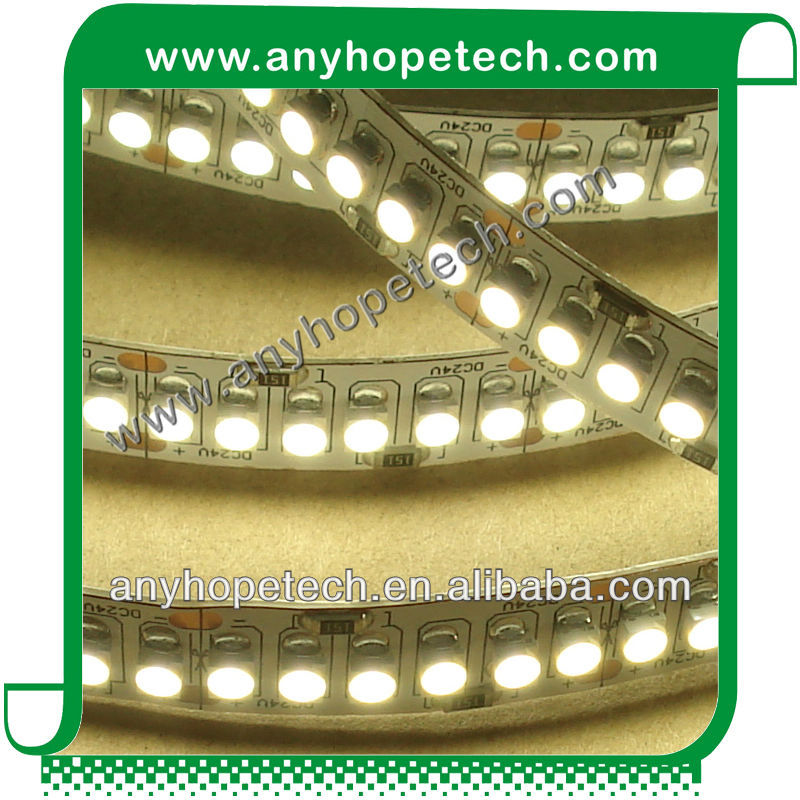

LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: > 80



CRI: > 90 are available.


  AH-LP3528-126-ultrathin-08



Color

Color
Temperature

Lumen Flux

Power
(W)

Voltage
(DC)

RGB

/

Red: 456LM
Green: 912Lm
B: 570Lm

52

24V

Cool White

6000K +

4850Lm

85

White

4000~6000K

4650Lm

Warm White

2400~4000K

3580Lm



Large shine area: L: 1.16M, W: 0.56M / (L: 3.81Ft, W: 1.84Ft)



Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)

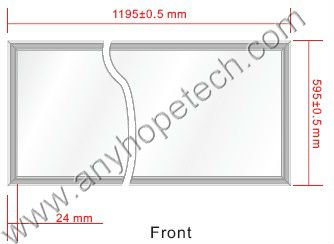

Panel Size: 1195 x 595 x 14mm / (47.05 x 23.43 x 0.55inches)



 126 size.jpg







Installation way: Suspending / Embedded / Wall hung



LED Lumen Attenuation:

Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2



Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs



AH-LP3528-126-ultrathin-02

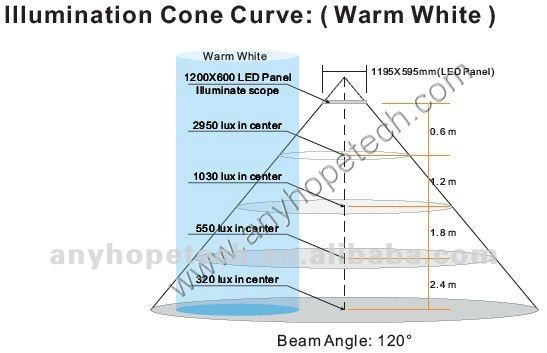

ww curve.jpg





Energy saving up to 50%, soft and even lighting output.

Instant start, no flicking, no humming.

Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
No RF interference.



Panels Installation Instruction



led panel connection





led panel rgb connection









Company Information

        Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services

Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx,bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number







FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.







Packaging & Shipping

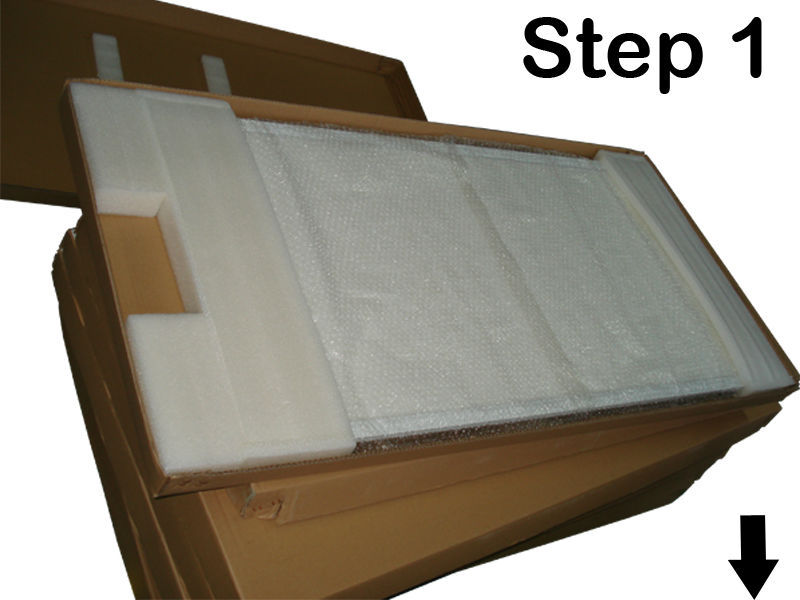

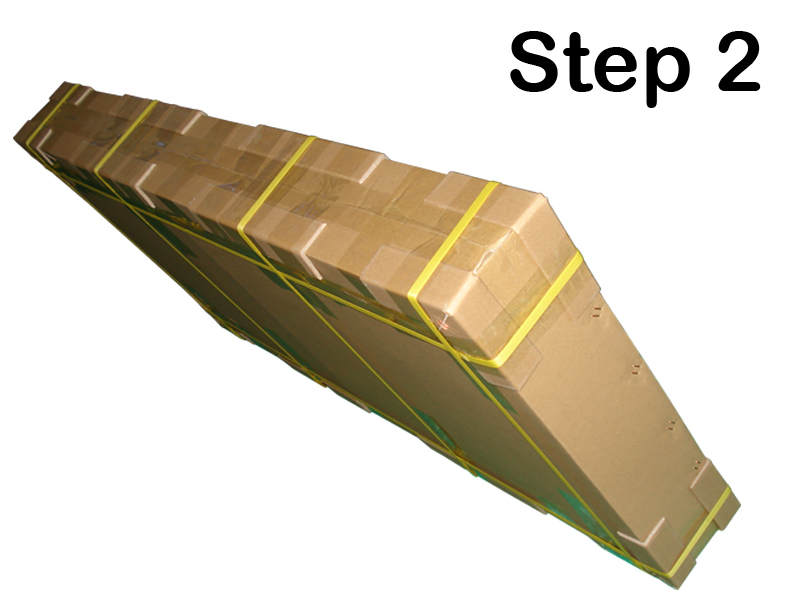

 Package-01Package-02-01



Certificate:

Certificate - LED Panel Light -  - Logo - 0820



Factory:

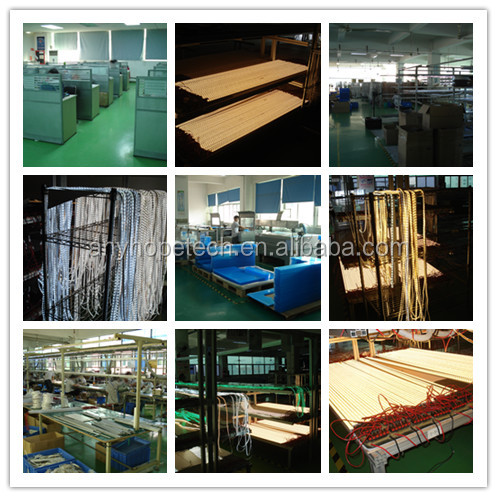

Company photo3



  Welcome to visit our website: www.anyhopetech.com

AH-CP330Y-21-1   240-1
