Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD3528
  • Type: Flex LED Strips
  • Input Voltage(V): 24VDC
  • Lamp Power: 26.4W/0.8M, 172.8W/Roll
  • Lamp Luminous Flux(lm): 2079(White), 1795(Warm White)
  • CRI (Ra>): 80
  • Color Temperature(CCT): 3000-6000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD3528
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Emitting Color: Bi-Color
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-3528W-24-360Q-BiColor
  • Input voltage: 24vdc
  • LED Type:: SMD3528, Quad Row, Bi-Color
  • IP Protection:: IP20, IP65
  • Color:: White,Warm White,Cool White
  • Color Temperature: 3000-6000K
  • View angle:: 120 degree
  • Dimension:: 4800*28*2.2mm /189*1.10*0.09inches
  • Power:: 26.4W/0.8M, 172.8W/Roll
  • Lumen:: 2079(White), 1795(Warm White)
  • Warranty:: 2 years

Packaging & Delivery

Packaging Details 4.8 meters / roll
1 roll / anti-static bag
Weight: 0.38kgs/Roll
Package: 7Rolls/Carton
Delivery Time Within 3-5 working days after receiving the payment.



Product Description

Double color suer bright indoor 360leds 3528 smd 24V LED Quad Row Ribbon

Model: AH-3528W-24-360Q

  • Superbright 3528 SMD top LED, high intensity and reliability.
  • Low power consumption
  • Widely used for home decoration use, hotels, clubs, shopping malls









lexible LED Light Stripe - 3528SMD 360LEDs Quad Row



LED Type:  3528SMD, Taiwan Chip - Epistar



LED QTY: 360LEDs/0.8M, 4.8Meters/Roll, 2160LEDs/Roll,2160LEDs/15.75Ft



Max Lumens per LED:

3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)



Color Temperature:

2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

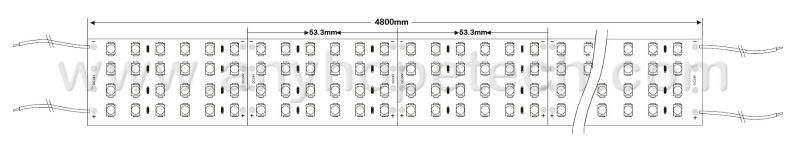

Pitch: 53.3mm / 2.10"

Cable length: 35cm / 13.78"

26.4W/Meter, 1.1A/M(24VDC), 126.72W/Roll

DC24V (Every 20 LEDs cut at 53.3mm / 2.10")

PCB Color: Brown, White, Black (Optional)




Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/4.8M)

Voltage
(DC)

Power
(W/M)

AH-3528WW-24-360Q

Warm White

1500~1710

360

Quad Row

24V26.4

AH-3528W-24-360Q

White

1920~1980



Note: Amber, Orange, Pink, Purple color are optional.

Max Length Connection:
4.8 Meters, Feed power to both ends at every 4.8 meters to minimize the voltage drop.






LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

28 x 2.2mm
1.10 x 0.09"

AH-3528-24-360Q


Free end cap: 1 Piece / Meter  (Opitional)

Free mounting clip: 2 Pieces / Meter  (Opitional)

View angle: 120 degree

CRI: >80,

CRI: >90 with high brightness are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ + 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~ + 122ºF)

Warranty: 2 years

Certification: CE RoHS







Max Length Connection: 4.8 Meters, Feed power to both ends at every 4.8 meters to minimize the voltage drop.


Operating driver: LED Transformer with DC24V output



Compatible with Dimmer





The flexible single color strip connect to power supply:











Company Information

         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.





Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number





FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.







Packaging & Shipping



4.8Meters/Roll, 1 Roll into anti-static bag
50Rolls/Carton, Carton Size: 50x40x30cm / 19.69x15.75x11.81"







 Accessories(Optional):



































































Certificate:



Factory:

Welcome to visit our website: www.anyhopetech.com



Hot-sale products:
