Quick Details

  • Light Source: LED
  • Item Type: Ceiling Lights
  • LED Light Source: SMD3528
  • Install Style: Surface Mounted
  • Input Voltage(V): DC24V
  • Lamp Power(W): 6
  • Lamp Luminous Flux(lm): 340
  • Lamp Luminous Efficiency(lm/w): 45
  • CRI (Ra>): 80
  • Color Temperature(CCT): Pure White
  • Working Temperature(℃): -20 - 60
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP68
  • Certification: CE, EMC, LVD, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-CP100F
  • Size:: L: 100mm, W: 100mm, H: 26mm
  • Punch size:: L: 90mm, W: 90mm
  • Luminous Flux:: 320~340Lm
  • Color:: Warm White,Pink,Red,Green,Blue
  • Color Temperature:: 2500-7000K
  • View Angle:: 120 degree
  • Cover Material: Acrylic
  • Input Voltage: 24VDC
  • Power: 6Watt
  • Warranty: 2 years

Packaging & Delivery

Packaging Details Inner box:20*18.5*6 CM
10pcs/carton, 63.5*22*39.5 CM
Delivery Time Within 5-7 working days.



Product Description

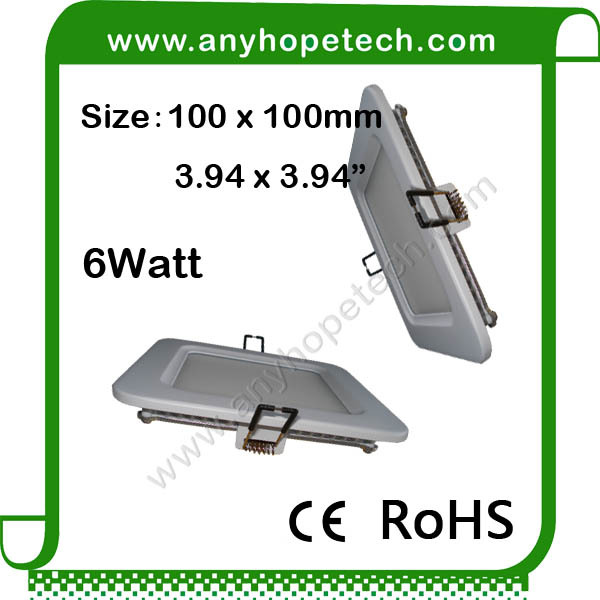

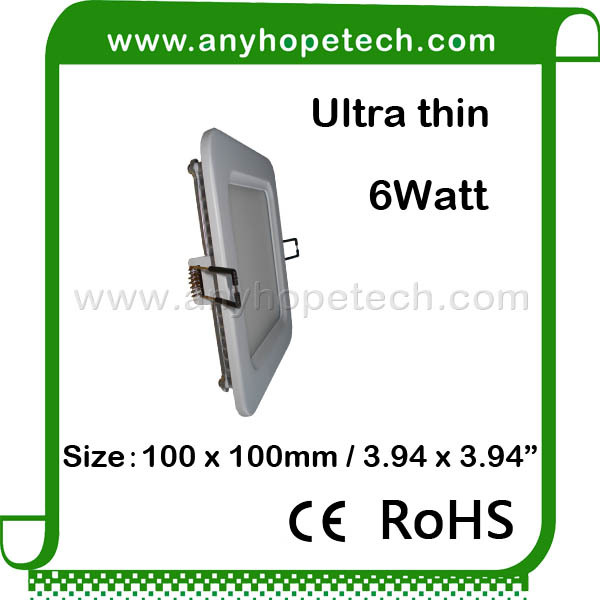

Supply high quality indoor white color 6W mini square led suspended ceiling spot lights

Model:  AH-CP100F


  • With 120 degrees beam angle and send out light evenly.
  • 100% Brand New & High Quality!
  • Environmentally friendly and recyclable.
  • Wide application range: can be installed on walls and ceilings in meeting rooms, hotels, offices,homes and so on.

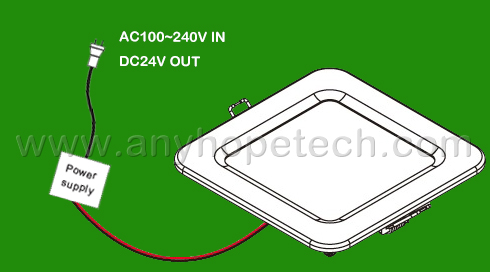

Input  Voltage: AC100-240V


Ceiling light warking voltage: DC24V


Power: 6W

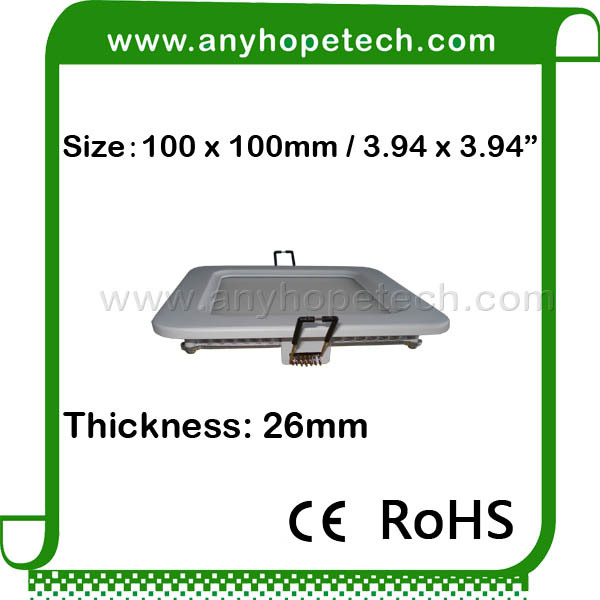

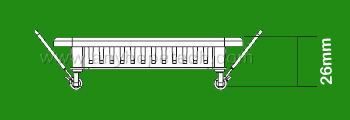

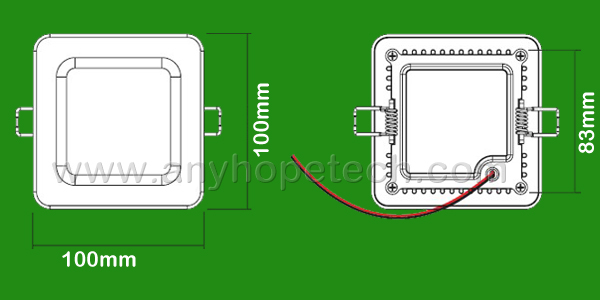

Size: L: 100mm/3.94",  W: 100mm / 3.94", H: 26mm / 1.02"



Punch: L / W: 85 ~ 90mm / 3.34 ~ 3.54 "







Luminous Flux: 320~340Lm



Color: White, Warm White


Color Temperature: 2400 - 7000K

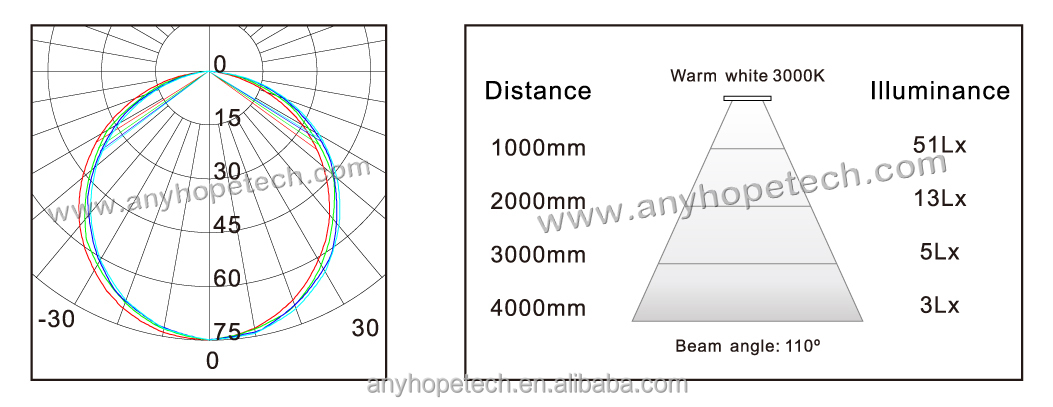

View Angle: 120 degree

Waterproof: IP52


Certificate: CE  RoHS

Life time: >50,000 Hours


Warranty: 2 years




LED Lumen Attenuation:


Operating timeLumen decrease (%)
5,000 hours2.30%
10000 hours5.40%
20000 hours11.50%
50000 hours25.20%






Energy saving up to 50%, even lighting output.

Instant start, no flicking, no humming.

Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.

No RF interference.






Company Information

          Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.




Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number






Why you should use LED lighting?


Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.








 Welcome to visit our website:  www.anyhopetech.com
