Best price 150LEDs dc24v warm white SMD 5050 led strip light connector

FOB Reference Price:Get Latest Price
US $1-2 / Meters | 2 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
5050SMD
Type:
Flex LED Strips
Input Voltage(V):
DC24V
Lamp Power:
36W/Roll
Lamp Luminous Flux(lm):
3375Lm
CRI (Ra>):
85
Color Temperature(CCT):
2000-10000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB+SMD5050
Certification:
CE, EMC, FCC, LVD, RoHS, CE RoHS
Emitting Color:
Warm White
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-5050WW-24-30
Power:
7.2Watt/meter, 36Watt/Roll
colors:
warm white, white, 2000-10000K
LED QTY:
30LEDs/Meter, 150LEDs/Roll, 5Meters/Reel
View Angle:
120 degrees
warranty:
2 years
Voltage:
DC24V
Lumens:
675lm/meter, 3375lm/Roll
LED Type:
SMD5050, fexible LED ribbon
IP Protetion:
IP20, IP65, IP67, IP68
Supply Ability
Supply Ability:
30000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
fexible LED ribbon:
5Meters/Roll, 1 Roll into anti-static bag
50Rolls/Carton, Carton Size: 50x40x30cm / 19.69x15.75x11.81"
Port
Shenzhen China
Lead Time :
within 5-7 days after receiving the payment



Product Description

Best price 150LEDs dc24v warm white SMD 5050 led strip light connector

Model: AH-5050WW-24-30



  • Emergency & security lighting, advertisement sign lighting
  • Decorative lights for holiday, event, show exhibition
  • Applicable for automobile and bicycle decoration, border or contour lighting

 AH-5050-24-30-IP20-38





LED Type: 5050SMD, Taiwan Chip-Epistar



LED QTY:  30LEDs/Meter, 5Meters/Roll, 150LEDs/Roll, 150LEDs/16.40Ft



Max Lumens per LED:

9lm(Red), 9lm(Yellow), 15lm(Green), 10.5lm(Blue), 22.5lm(White), 21lm(Warm White)

Color Temperature:
2000k, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Working Voltage:  DC24V

Power: 7.2W/Meter, 0.6A/M(12VDC), 0.3A/M(24VDC), 36W/Roll



Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-5050RGB-12/24-30

RGB

R90,G150,B105

30

12V
24V

7.2

AH-5050R-12/24-30

Red

270

AH-5050Y-12/24-30

Yellow

270

AH-5050B-12/24-30

Blue

315

AH-5050G-12/24-30

Green

450

AH-5050W-12/24-30

White

675

AH-5050WW-12/24-30

Warm White

630



AH-5050-24-30-IP20-29


Super Bright Warm White: 660Lm/Meter

Super Bright Cool White: 705Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional..

  5050-30RGB-2

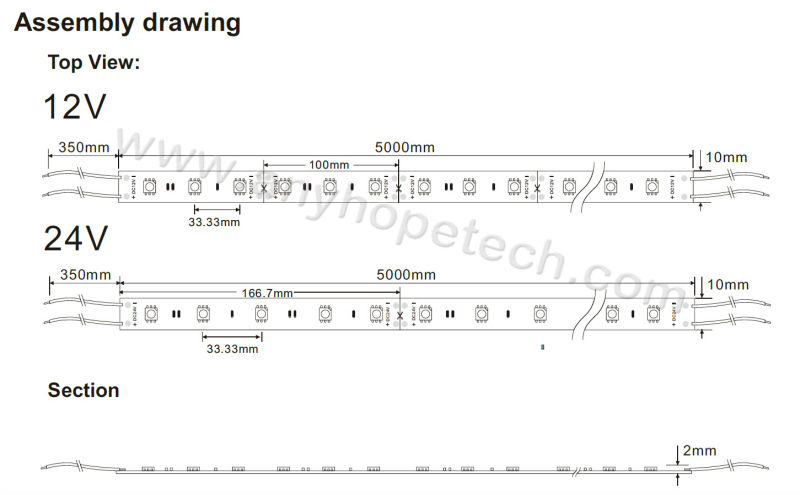

Pitch: 33.33mm / 1.31"

DC12V (Every 3 LEDs cut at 100mm / 3.94")

DC24V (Every 6 LEDs cut at 166.7mm / 6.56")

PCB Color: Brown, White, Black (Optional)

Cable length: 35cm / 13.78"

Dimension:  5000*10*2mm /197*0.39*0.08inches





5050-30RGB-1




LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

10 x 2mm

0.39 x 0.08"

AH-5050-12/24-30

Epoxy / Silicone series

IP65

10 x 2.5mm

0.39 x 0.09"

AH-E5050-12/24-30

Silicone tube series

IP67

12 x 4mm

0.47 x 0.16"

AH-F5050-12/24-30

U-shape silicone series

IP67

12 x 5mm

0.47 x 0.19"

AH-U5050-12/24-30

PVC Tube + Epoxy series

IP68

12 x 4mm

0.47 x 0.16"

AH-G5050-12/24-30

All silicone series

IP68

12 x 5mm

0.47 x 0.19"

AH-S5050-12/24-30




Free end cap: 1 Piece / Meter (Optional)

Free mounting clip: 2 Pieces / Meter (Optional)



 AH-5050-24-30-IP20-44



View angle: 120 degree

CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~ 122ºF)

Warranty: 2 years

Certification: CE RoHS, WEEE

5050-30leds-IP20-12



Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC12V/DC24V output



Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer







The flexible single color strip connect to power supply:



5050-30RGB-6







Company Information

         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED productsin Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.



Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx, bank information and terms & conditions for detailed check.



Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)



Step (4): Production Process



Step (5): Package and Shipping



Step (6): Air Way Bill Number









FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.
