Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: SMD3528
  • Warranty(Years): 2
  • Input Voltage(V): DC24V
  • Lamp Power(W): 42
  • Lamp Luminous Flux(lm): 3520lm
  • Lamp Luminous Efficiency(lm/w): 85
  • CRI (Ra>): 80
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP52
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-LP3528W-66-700
  • Size:: 60 x 60cm / 2 x 2 feet
  • Dimension:: 595 x 595 x 10.4mm / (23.43 x 23.43 x 0.41inches)
  • Voltage:: DC24V
  • Power:: 42W
  • Color:: White, Warm White,2400-7000K
  • Lumens:: 3520lm
  • View Angle:: 140 degrees
  • LED Type:: LED Panel Light 600 x 600mm, led panel light 42w
  • Cover Material:: Acrylic
  • warranty:: 2 years

Packaging & Delivery

Packaging Details each led panel light [ 600 * 600mm ] is 74 * 65 * 6cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 68 * 36 * 77cm.
Delivery Time Within 5-7 working days



Product Description

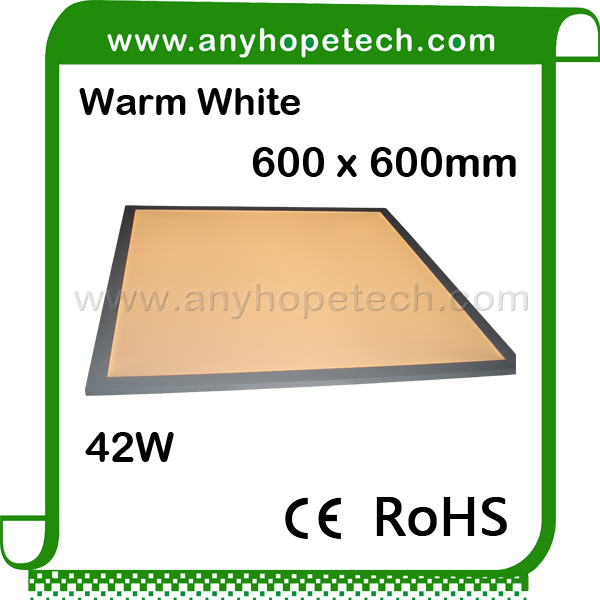

Alibaba Wholesale 600 600mm ultra thin 42W led wall panel

Model: AH-LP3528W-66-700

  • Using aluminum alloy, recycling rate is more than 98.5%.
  • Using SMD LED as light source, the lifespan of product is up to 50,000 hrs.

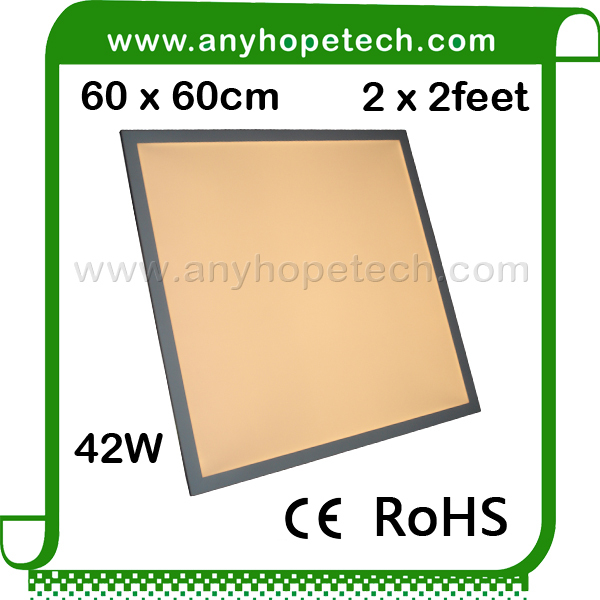

Ultra-thin Dimmable LED Panel Lights 600 x 600mm / (1.97 x 1.97ft)



Can be Constant Current Style, Input Voltage: DC55~70V(700mA).



Shell Material: Aluminium Alloy



LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: >80



CRI: >90 are available.



Up to 60% energy saving.



RGB, Warm White & cool white, natural white are available !







Color

Color
Temperature

Lumen Flux

Power
(W)

Voltage
(DC)

RGB

/

Red: 432LM
Green: 864Lm
B: 540Lm

52

24V

Cool White

6000K +

3520Lm

42

White

4000~6000K

3466Lm

Warm White

2400~4000K

2440Lm

Bi-Color

Warm White ~ Cool White
2400~6000K

Max 2400Lm

43







 Meterial: high transmission Acrylic, and high quantity aluminum alloy frame





Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)



Panel Size: 595 x 595 x 10.4mm / (23.43 x 23.43 x 0.41inches)



Net Weight: 3.8Kgs / (8.38Lbs)









Quantity

1Piece

5Pieces

Gross Weight

4.5Kgs
(9.92Lbs)

27Kgs
(59.52Lbs)

Package

74 x 65 x 6cm
(29.13 x 25.59 x 2.36")

79 x 69 x 37cm
(31.10 x 27.17 x 14.57")





 Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.

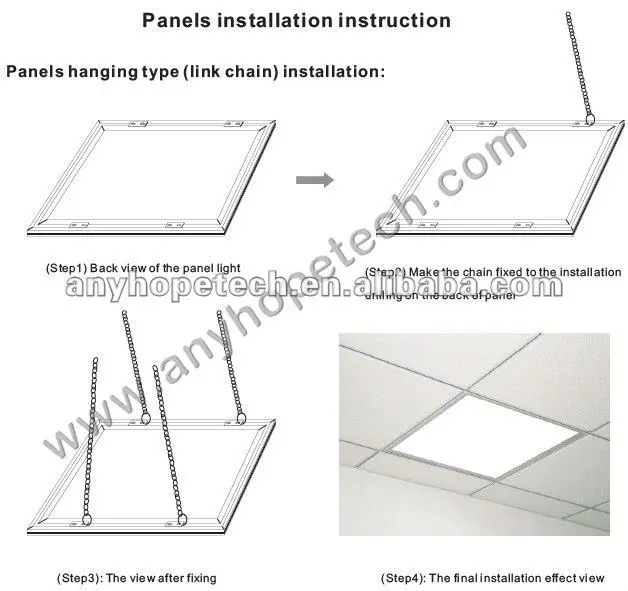

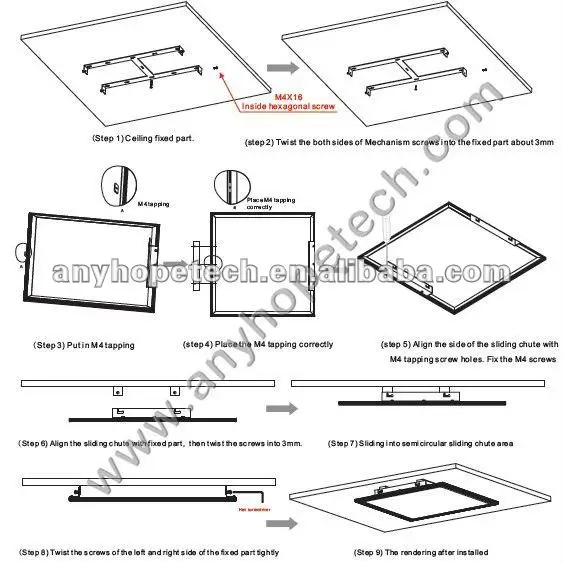

Installation way:  Suspending/Embedded/Wall hung










LED Lumen Attenuation:



Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2





Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs







Energy saving up to 50%,  soft and even lighting output.

Instant start, no flicking, no humming.



Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.



No RF interference.






Company Information



       Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services



Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.



Step (2): Sales Contract or Proforma Invoice

We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.



Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)



Step (4): Production Process



Step (5): Package and Shipping



Step (6): Air Way Bill Number





Certification:

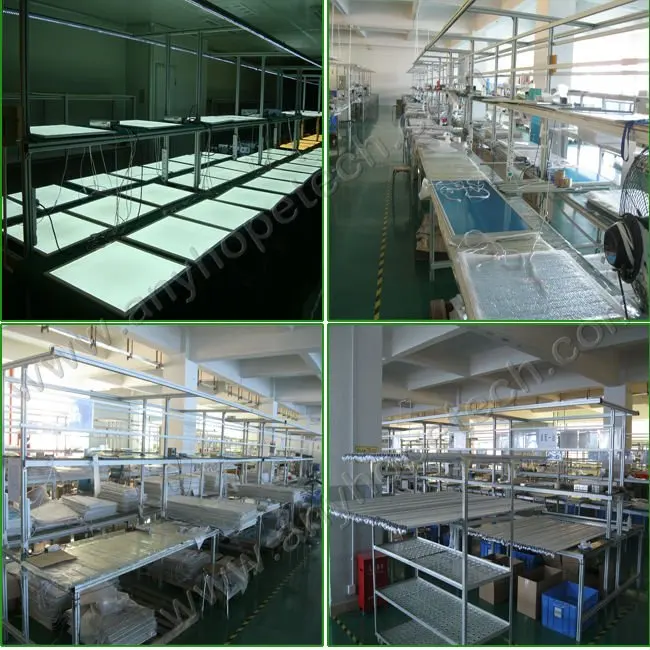

Factory:




  Welcome to visit our website: www.anyhopetech.com
