Super quality high light indoor SMD5050 led rigid bar

FOB Reference Price:Get Latest Price
$9.99 - $11.99 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Bar Lights
Input Voltage(V):
DC12V / DC24V
Lamp Power:
17.28W
Lamp Luminous Flux(lm):
R1216,G360,B252
CRI (Ra>):
85
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
Certification:
CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-RD-A5050W-12-72
Light Source:
LED
LED QTY::
72LEDs/meter
Size::
1000*15*7mm / 39*0.58*0.27 inches
Color::
Red/Green/Blue/Yellow/White/Warm white/Pink/RGB
Waterproof::
IP67 IP65 IP20
Certification::
CE RoHS
LED Type::
Rigid light, led light bar aluminium heat sink
Voltage::
DC12V / DC24V
Power::
17.28Watt
Lumen::
1620lm
Warranty:
2 years
Item Type:
Light Strips
Emitting Color:
Blue
Color Temperature(CCT):
2200-7000K
LED Light Source:
SMD5050
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Package:
1 piece at 1 Meter long, 0.17Kgs/(0.37Lbs)/Meter,
20pieces/Bag, 1 Bag into 1 Carton.
Port
shenzhen china
Lead Time :
Within 5-7 working days



Product Description

Super quality high light indoor SMD5050 led rigid bar

Model: AH-RD-A5050W-12-72



  • lead-free materials.
  • Easy installation. Instant start , no flickering , no humming, No buzzing noise.
  • Low power consumption,high intensity

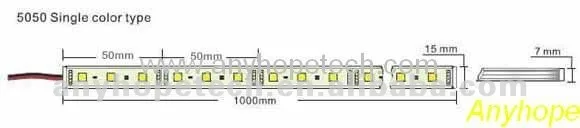

Waterproof Aluminium LED Bar - 5050SMD 72LEDs - 1 Meter Long



LED Type:  5050SMD, Taiwan Chip



LED QTY: 72LEDs/Meter



Length: 1,000mm / 3.28Ft



Type 1 Width & Thickness: 15mm/0.59" x 7mm(0.28")



Type 2 Width & Thickness: 20mm/0.78" x 12mm(0.47")



Pitch: 13.9mm / 0.55"




Max Lumens per LED:

9lm(Red), 9lm(Yellow), 15lm(Green), 10.5lm(Blue), 22.5lm(White), 21lm(Warm White)

Color Temperature: 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K+

12VDC: 17.28W/Meter, 1.44A/Meter

24VDC: 17.28W/Meter, 0.72A/Meter

DC12V (Every 3 LEDs cut at 41.5mm / 1.63")

DC24V (Every 6 LEDs cut at 83.3mm / 3.28")



CRI: >80

CRI: >90 are available

PCB Color: White

Material dropped on the PCB: Epoxy Resin

Shell Material: Aluminium Alloy

IP Protection: IP67

PCB type available with IP Protectoin: IP20













Company Information

         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.





Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number







Packaging & Shipping


Package:


1 piece at 1 Meter long, 0.17Kgs/(0.37Lbs)/Meter, 20Meters/Bag, 1 Bag into 1 Carton.

Operating driver: LED Transformer with DC12V/DC24V output


  Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer













Certificate:





Factory:


Welcome to visit our website:  www.anyhopetech.com
