Super Warm 2700K high cri 60 60cm 42W Acrylic Edge Lit LED Panels

FOB Reference Price:Get Latest Price
US $1-2 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD2835 Epistar chip
Warranty(Years):
2
Input Voltage(V):
DC24V
Lamp Luminous Flux(lm):
3600
Lamp Luminous Efficiency(lm/w):
85
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP55
Certification:
C-tick, CE, EMC, Energy Star, FCC, LVD, RoHS, SAA, SASO, UL
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP3528W-66
Size::
60 x 60cm / 2 x 2 feet
Dimension::
595 x 595 x 10.4mm / (23.43 x 23.43 x 0.41inches)
Voltage::
DC24V
Power::
42W
Color::
White, Warm White,2400-7000K
Lumens::
3520lm
View Angle::
140 degrees
LED Type::
LED Panel Light 600 x 600mm, led panel light 42w
Cover Material::
Acrylic
warranty::
2 years
Lamp Power(W):
42
Supply Ability
Supply Ability:
2000 Piece/Pieces per Week 600*600mm
Packaging & Delivery
Packaging Details
each led panel light [ 600 * 600mm ] is 74 * 65 * 6cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 68 * 36 * 77cm.
Port
ShenZhen China
Lead Time :
Within 5-7 working days



Product Description

Super Warm 2700K high cri 60 60cm 42W Acrylic Edge Lit LED Panels

Model: AH-LP3528W-123

  • Using aluminum alloy, recycling rate is more than 98.5%.
  • Using SMD LED as light source, the lifespan of product is up to 50,000 hrs.

 AH-Lp3528-66-ultrathin-06



Ultra-thin Dimmable LED Panel Lights 600 x 600mm / (1.97 x 1.97ft)



Can be Constant Current Style, Input Voltage: DC55~70V(700mA).



Shell Material: Aluminium Alloy



LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: >80



CRI: >90 are available.



Up to 60% energy saving.



RGB, Warm White & cool white, natural white are available !



AH-Lp3528-66-ultrathin-28





Color

Color
Temperature

Lumen Flux

Power
(W)

Voltage
(DC)

RGB

/

Red: 432LM
Green: 864Lm
B: 540Lm

52

24V

Cool White

6000K +

3520Lm

42

White

4000~6000K

3466Lm

Warm White

2400~4000K

2440Lm

Bi-Color

Warm White ~ Cool White
2400~6000K

Max 2400Lm

43








 Meterial: high transmission Acrylic, and high quantity aluminum alloy frame






Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)



Panel Size: 595 x 595 x 10.4mm / (23.43 x 23.43 x 0.41inches)



Net Weight: 3.8Kgs / (8.38Lbs)




AH-Lp3528-66-ultrathin-30





Quantity

1Piece

5Pieces

Gross Weight

4.5Kgs
(9.92Lbs)

27Kgs
(59.52Lbs)

Package

74 x 65 x 6cm
(29.13 x 25.59 x 2.36")

79 x 69 x 37cm
(31.10 x 27.17 x 14.57")





 Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.

Panel Light Testing

Installation way:  Suspending/Embedded/Wall hung


empeded installation


Panels Installation Instruction






LED Lumen Attenuation:



Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2





Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs




led panel connection

led panel rgb connection


Energy saving up to 50%,  soft and even lighting output.

Instant start, no flicking, no humming.



Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.



No RF interference.






Company Information



       Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services



Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.



Step (2): Sales Contract or Proforma Invoice

We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.



Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)



Step (4): Production Process



Step (5): Package and Shipping



Step (6): Air Way Bill Number





Certification:

Certificate - LED Panel Light -  - Logo - 0820

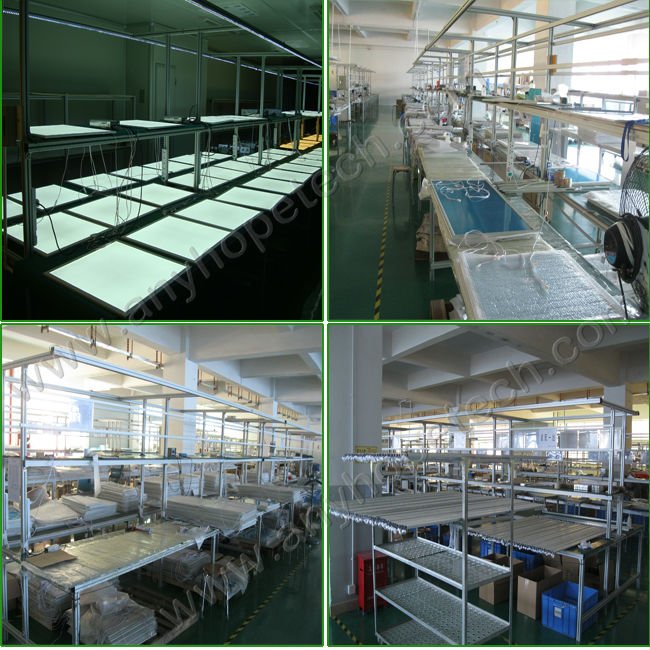

Factory:
