Ultra-thin square 2 years warranty high output 600x600 led panel

FOB Reference Price:Get Latest Price
US $59.99-69.99 / Pieces | 1 Piece/Pieces Customized size are available. (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD3528
Warranty(Years):
2
Input Voltage(V):
DC24V
Lamp Luminous Flux(lm):
3450Lm
Lamp Luminous Efficiency(lm/w):
75
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP52
Certification:
CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP3528WW-FL-66
Size::
600x600mm
Thickness::
14.5mm / 0.57"
LED Type::
SMD3528, Frameless LED Panel
Color::
White, Warm White, Cool White, 2400-7000K
Certification::
CE ( EMC, LVD) RoHS
Base Material:
Alluminium Alloy
Voltage::
DC 24V
Power::
47watt
Lumens::
3450lm
Warranty::
2 years
Lamp Power(W):
47
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
each led panel light [ 600 * 600mm ] is 74 * 65 * 6cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 68 * 36 * 77cm.
Port
Shenzhen China
Lead Time :
Within 5-7 working days after receiving the payment.



Product Description

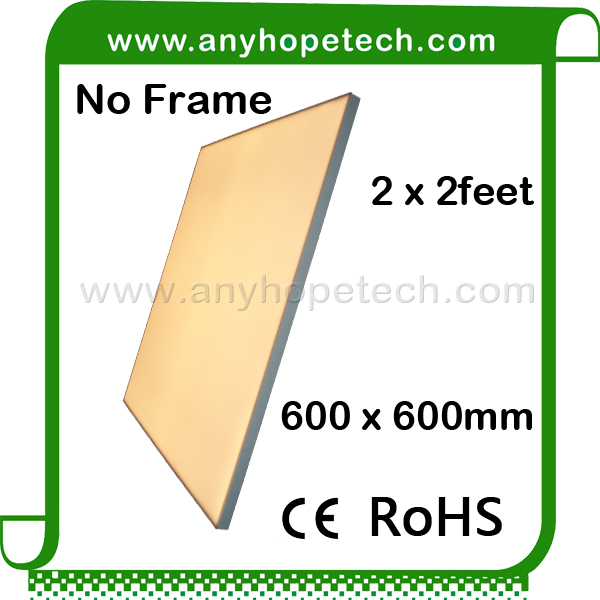

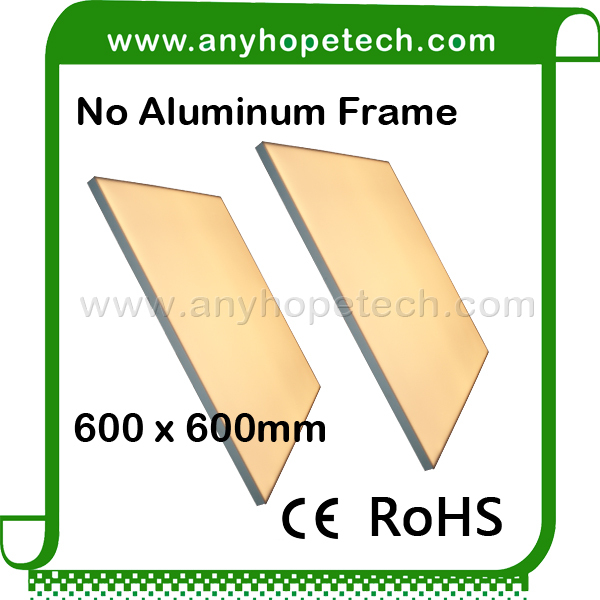

Ultra-thin square 2 years warranty high output 600x600 led panel

Model: AH-LP3528WW-FL-66



Constant current and constant voltage
No mercury,UV,IR and other toxic substances, it is environment-friendly.



600600-15





Front Size:



Frameless LED Panel Light Front Size.jpg



Back Size:



Frameless LED Panel Light Back Size.jpg



Thickness is only 14.5mm / 0.57 inches.



 Frameless led panel light thickness







Panel Light Testing



Model:   AH-LP3528WW-FL-66

(Constant Voltage can be dimmable)

Input Voltage: AC100~240V
Working Voltage: DC24V
LED Source: SMD3528
Power: 47W
Color: White, Warm white
Color Temperature: 2400-4000K, 4000-7500K
Lumen: 3450Lm (White), 2990Lm (Warm white)
View Angle: 120 degree
Certification: CE [ EMC, LVD], RoHS
Dimension: 595*595*14.5mm / 23.4*23.4*0.57inches
Packing Size: 740*650*60mm / 29.2*25.6*2.4 inches
Weight: 3.8kgs/pc; 8.36lbs/pc
Fixture Material: Aluminum Housing

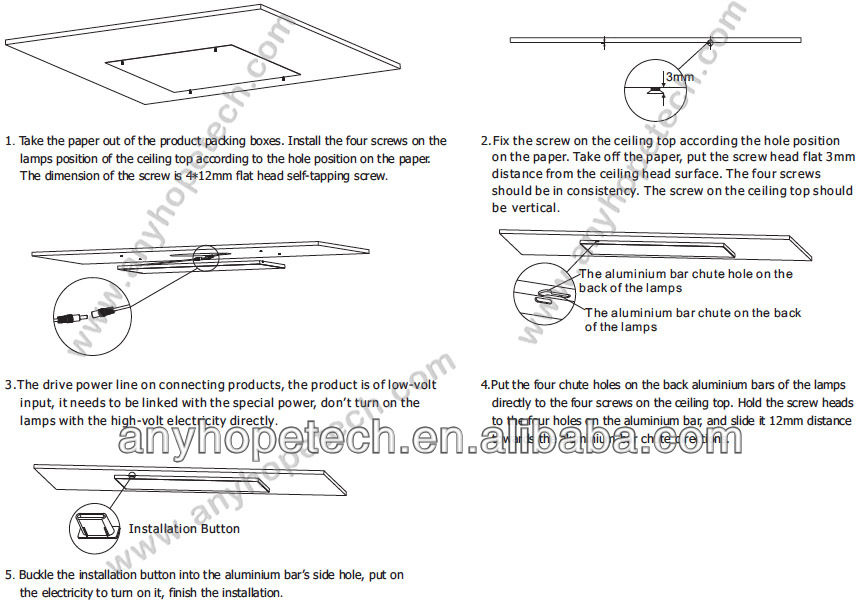

Installation way: Suspending / Embedded / Wall hung



Material: high transmission Acrylic with high quanlity aluminum alloy frame



600600-21


Certification: CE  [EMC, LVD] RoHS



Color Temperature: 2400K ~ 7500K / Warm White  ~ Cool White.



Size: 600 x 600mm / 2 x 2ft,   Power:47W



Size: 600 x 300mm / 2 x 1ft,   Power:24W



Size: 300 x 300mm / 1 x 1ft,   Power:13W





600600-29


CRI: >80



CRI: >90 are available

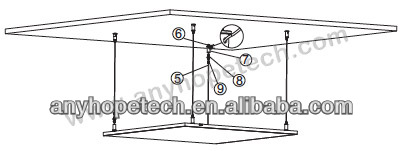

Installation way:  Suspending/Embedded/Wall hung

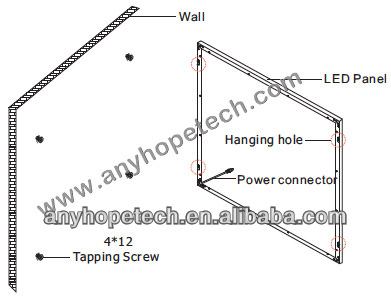

led panel hanging in wall.jpg

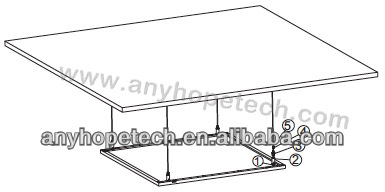

led panel hanging in Ceiling.jpg







led panel hang type 1.jpgled panel hang type 2.jpg
 Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse
