High voltage indoor 30 30 cm led rgb panel

FOB Reference Price:Get Latest Price
US $19.99-21.99 / Pieces | 1 Piece/Pieces Size:300*300mm, Can be dimmable. (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD3528
Warranty(Years):
2
Input Voltage(V):
DC24V
Lamp Luminous Flux(lm):
Red(128Lm),Green(265Lm),Blue(160Lm)
Lamp Luminous Efficiency(lm/w):
60
CRI (Ra>):
80
Color Temperature(CCT):
RGB
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP52
Certification:
CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP3528RGB-300
Voltage::
DC24V
Size::
300x300x10.4mm / 11.6x11.6x0.40 inches
Power::
13Watt
LED Type::
led square panel light 300*300mm
Color::
RGB, White, Warm White,Cool White,2500K-7000K
Certification::
CE(EMC,LVD)RoHS
Weight::
1.1kgs/pc; 2.42lbs/pc
Base Material:
Aluminium Alloy
View angle::
120 degrees
Warranty::
2 years
Lamp Power(W):
13
Supply Ability
Supply Ability:
3500 Piece/Pieces per Week Constant Current version available.
Packaging & Delivery
Packaging Details
each led panel light [ 300 * 300mm ] is 32 * 7 * 36cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 37 * 32 * 39cm
Port
Shenzhen China
Lead Time :
Within 8-10 working days



Product Description

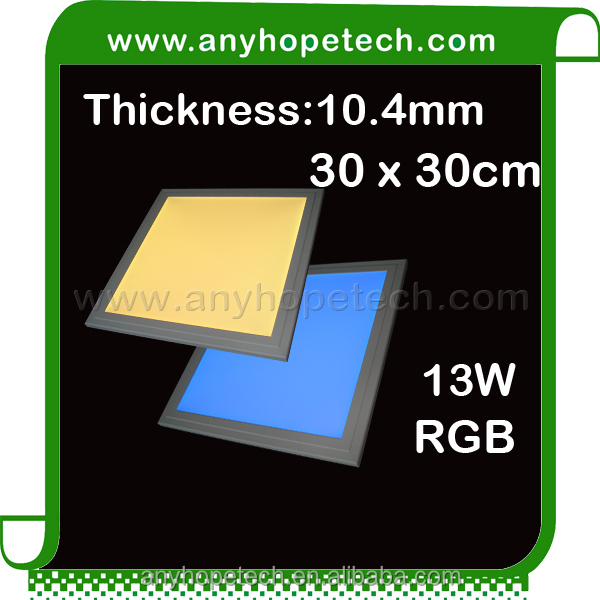

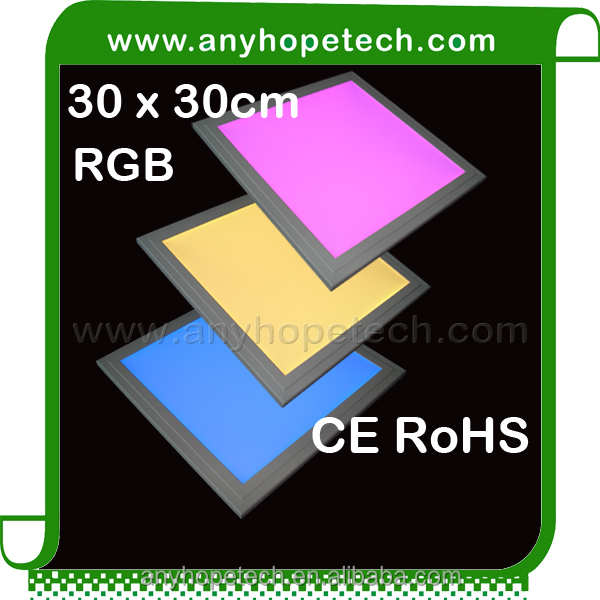

High voltage indoor 30 30 cm led rgb panel

Model: AH-LP3528RGB-300



 Constant current and constant voltage
 No mercury,UV,IR and other toxic substances, it is environment-friendly.



AH-LP3528RGB-300-29

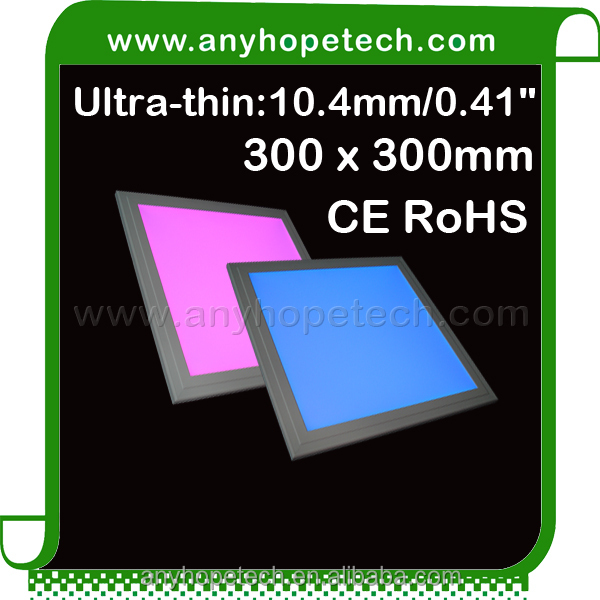

Ultra-thin Dimmable LED Panel Lights 300 x 300mm / (1 x 1ft)



Can be Constant Current Style, Input Voltage: DC25~35V(350mA).





LGP: Acrylic from Japan



Shell Material: Aluminium Alloy







Thickness: 10.4mm / (0.41inches)



LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: >80,



CRI: >90 are available.



AH-LP3528RGB-300-27





Color

Color
Temperature

Lumen Flux

Power
(W)

Voltage
(DC)

RGB

/

Red: 128LM
Green: 265Lm
B: 160Lm

13

24V

Cool White

6000K +

700Lm

10

White

4000~6000K

643Lm

Warm White

2400~4000K

480Lm

Bi-Color

Warm White ~ Cool White
2400~6000K

Max 650Lm

13



Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)



Panel Size: 295 x 295 x 10.4mm / (11.61 x 11.61 x 0.41inches)



Net Weight: 1.1Kgs / (2.42Lbs)



Installation way: Suspending / Embedded / Wall hung




LED Lumen Attenuation:



Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2



Lumen maintenance at 10,000hrs: 95%



Average life time: 50,000hrs



Energy saving up to 50%,  soft and even lighting output.
Instant start, no flicking, no humming.
Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
No RF interference.



AH-LP3528RGB-300-26



Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.
