Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: 2835SMD
  • Warranty(Years): 2
  • Input Voltage(V): DC24V
  • Lamp Power(W): 24
  • Lamp Luminous Flux(lm): 1580 ~ 1737 Lumen
  • Lamp Luminous Efficiency(lm/w): 75
  • CRI (Ra>): 85
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP52
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-LP3528-63-FL
  • Size:: 600 x 300mm / ( 1.97 x 0.98ft )
  • Thickness:: 15mm
  • Power:: 24Watt
  • Color:: White, Warm White
  • Color Temperature: 2400-4000K,4000-6000K,6000-8000K
  • Lumen: 1580 ~ 1737 Lumen
  • Base Material:: Aluminum Alloy
  • LED Type:: 2835SMD
  • View Angle:: 120 degree
  • Certification:: CE RoHS

Packaging & Delivery

Packaging Details Each panel in one box: Size:62*7*36CM
5pcs in one outer carton, size: 37*32*70CM
Delivery Time Within 5-7 working days


Product Description

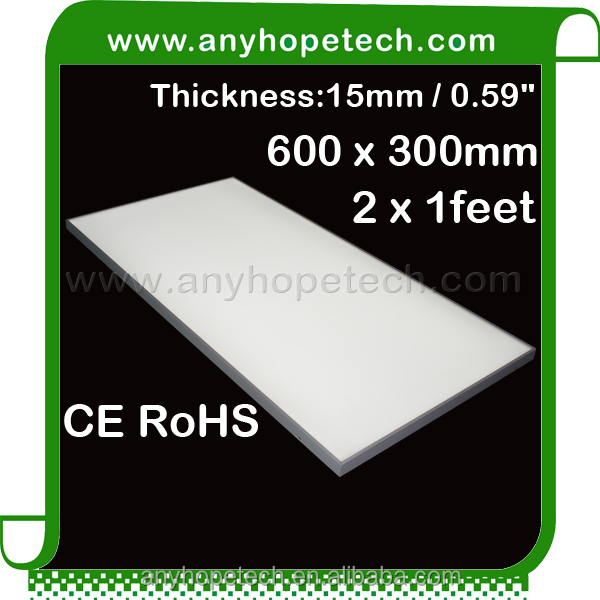

Cheap price embedded 60 30cm 24 wtt dc24v flexible led panel film
Model:  AH-LP3528-63-FL

  • Green environmental protection, lead-free material ,conforming to RoHS.
  • It's can be widely installed at home and public areas: Lliving room, bedroom, kitchen, hotel, meeting room ,show room, shop, telephone booth ,etc.



Shell Material: Aluminium Alloy


Thickness: 15mm / ( 0.66inches )


LED Type: 2835SMD ( Epistar 10*23 )


Max Lumens per LED: 21~23Lm (White), 20~22Lm (Warm White)


Beam Angle: 120 degree


CRI > 80


CRI: >90 are available.





SizeLumen Flux & Color




600 x 300mm

2 x 1 ft

> 1580 ~ 1737 Lumen24 Watt24V



Certification: CE (EMC, LVD) RoHS


Warranty: 2 years


IP Protection: IP52, Indoor Use


Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)


Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)



LED Lumen Attenuation:

Operating time

Lumen Decrease










Lumen maintenance at 10,000hrs: 95%
Average life time: 50,000hr
Installation way: Suspending / Embedded / Wall hung

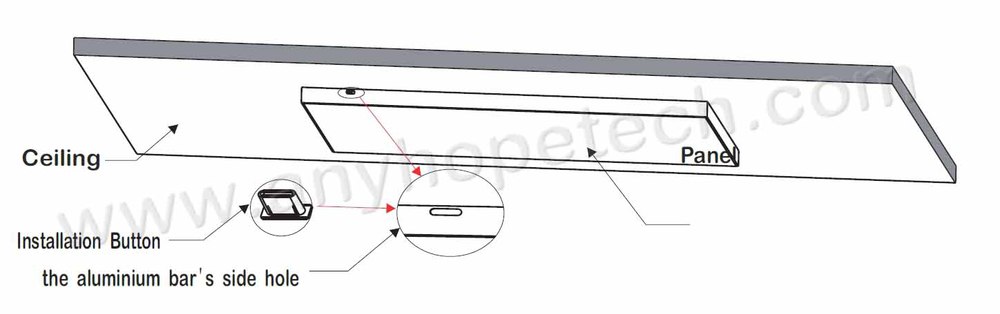

  • Both Power cord connectors of the panel light to be connected and electrified.   Turn off the power supply after the products lighten up

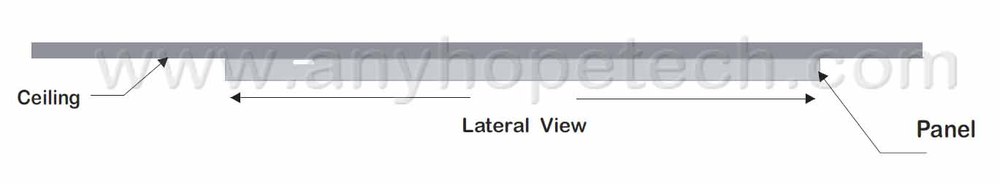

  • The four convex screw heads of the ceiling sink into the four holes of  the back side of the aluminum bar separately as the directions, The back side of the panel light goes smoothly with the outside of the oeiling



  • The panel light can slide to the either side of the arrows, slide distance 15mm.




  • Take out the installation button from the accessories; buckle the installation button into the aluminum bar's side hole, each panel light buckle two installation buttons. Buckle two sides of panel light separately.




Company Information

          Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.




Our Services


Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.


Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.


Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)


Step (4): Production Process


Step (5): Package and Shipping


Step (6): Air Way Bill Number



Packaging & Shipping





Why you should use LED lighting?


Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.
