New Promotion super silm 600 300mm thickness 15mm high quality lights panel flexible led

FOB Reference Price:Get Latest Price
US $29.99-35.99 / Pieces | 1 Piece/Pieces 900*300mm available. (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Panel Lights
LED Light Source:
SMD2835
Warranty(Years):
2
Input Voltage(V):
DC24V
Lamp Luminous Flux(lm):
1580 ~ 1737 Lumen
Lamp Luminous Efficiency(lm/w):
75
CRI (Ra>):
85
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP52
Certification:
CE, EMC, FCC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
Model Number:
AH-LP3528-63-FL
Size::
600 x 300mm / ( 1.97 x 0.98ft )
Thickness::
15mm
Power::
24Watt
Color::
White, Warm White
Color Temperature:
2400-4000K,4000-6000K,6000-8000K
Lumen:
1580 ~ 1737 Lumen
Base Material::
Aluminum Alloy
LED Type::
2835SMD
View Angle::
120 degree
Certification::
CE RoHS
Lamp Power(W):
24
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Week Size:510*510mm available
Packaging & Delivery
Packaging Details
Each panel in one box: Size:62*7*36CM
5pcs in one outer carton, size: 37*32*70CM
Port
Shenzhen China
Lead Time :
Within 5-7 working days



Product Description

New Promotion super silm 600 300mm thickness 15mm high quality lights panel flexible led
Model:  AH-LP3528-63-FL

  • Green environmental protection, lead-free material ,conforming to RoHS.
  • It's can be widely installed at home and public areas: Lliving room, bedroom, kitchen, hotel, meeting room ,show room, shop, telephone booth ,etc.


0SuperSlimFramePanelLight-600x600-15mm-13





Shell Material: Aluminium Alloy



Thickness: 15mm / ( 0.66inches )



LED Type: 2835SMD ( Epistar 10*23 )



Max Lumens per LED: 21~23Lm (White), 20~22Lm (Warm White)



Beam Angle: 120 degree



CRI > 80



CRI: >90 are available.



0SuperSlimFramePanelLight-600x600-15mm-16







SizeLumen Flux & Color

Power

(W)

Voltage
(DC)

600 x 300mm

2 x 1 ft

> 1580 ~ 1737 Lumen24 Watt24V





Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)





LED Lumen Attenuation:

Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2



Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hr

0SuperSlimFramePanelLight-600x600-15mm-27

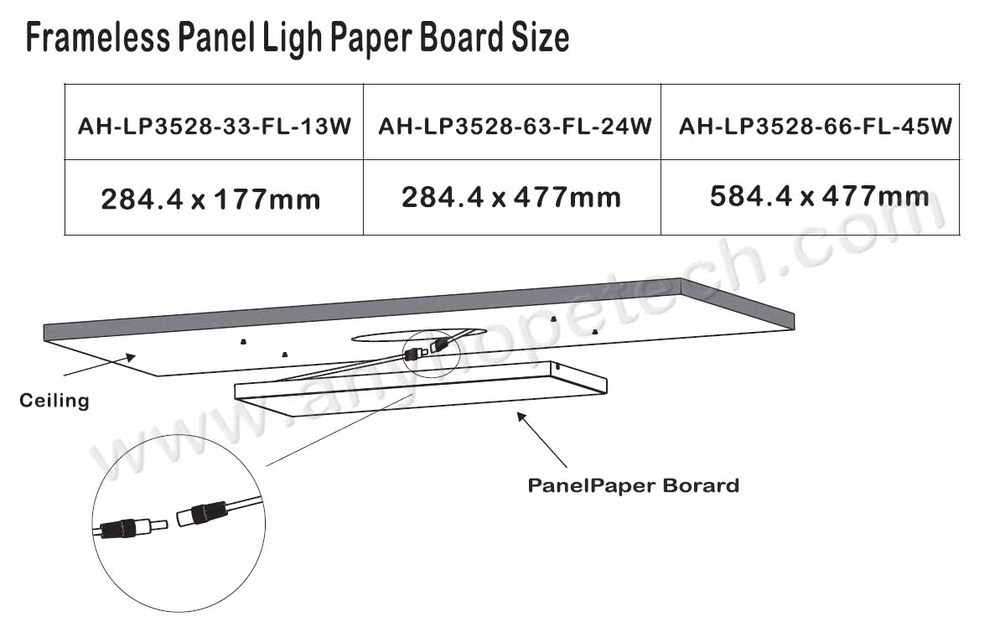

Installation way: Suspending / Embedded / Wall hung


Panel light-01

  • Both Power cord connectors of the panel light to be connected and electrified.   Turn off the power supply after the products lighten up


 Panel light-02



  • The four convex screw heads of the ceiling sink into the four holes of  the back side of the aluminum bar separately as the directions, The back side of the panel light goes smoothly with the outside of the oeiling



Panel light-03



  • The panel light can slide to the either side of the arrows, slide distance 15mm.



  Panel light-04



  • Take out the installation button from the accessories; buckle the installation button into the aluminum bar's side hole, each panel light buckle two installation buttons. Buckle two sides of panel light separately.







Company Information

          Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.



Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.



Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)



Step (4): Production Process



Step (5): Package and Shipping



Step (6): Air Way Bill Number





Packaging & Shipping

 Frameless600x300-01Frameless600x300-02Frameless600x300-03



FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.
