Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: 2835SMD
  • Type: Flex LED Strips
  • Input Voltage(V): 24
  • Lamp Power: 132W/Roll
  • Lamp Luminous Flux(lm): 2580lm/Meter
  • CRI (Ra>): 85
  • Color Temperature(CCT): 3000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+2835SMD
  • Certification: BV, C-tick, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Emitting Color: Warm White
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-2835W-24-120
  • LED QTY:: 120LEDs/Meter, 600LEDs/Roll
  • Color:: White, Warm White
  • Power:: 26.4W/Meter, 132W/Reel
  • View Angle:: 120 degrees
  • LED Type:: SMD2835, led flexible strip light
  • Lumens:: 2580lm/Meter
  • IP Protetion:: IP20, IP65, IP67, IP68
  • Warranty:: 3 years

Packaging & Delivery

Packaging Details 5 meters / Reel
Each reel in anti-static bag,
Weight: 0.195kgs/Roll
Package: 25Reels/Carton
Delivery Time Shipped in 3 days after payment





Product Description

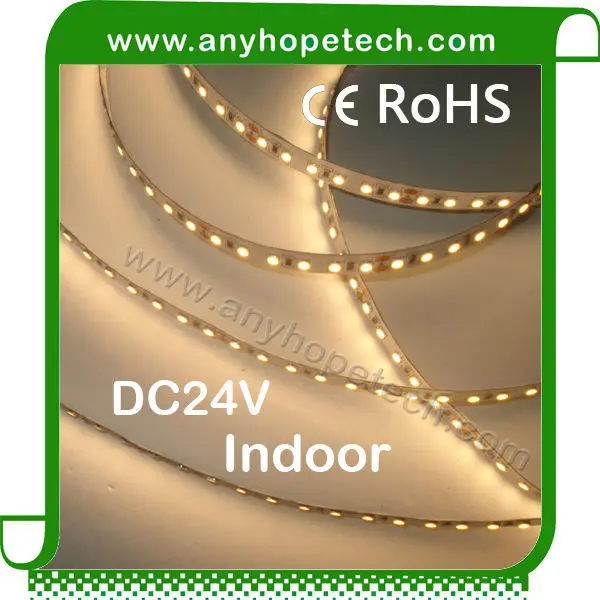

UL CE RoHS Ra 80 SMD2835 120 LED per meter LED Flexible Tape Lighting

Model: AH-2835W-24-120



  • Decorative lights for holiday, event, show exhibition
  • Applicable for automobile and bicycle decoration, border or contour lighting
  • Widely used for home decoration use, hotels, clubs, shopping malls
  • Architectural decorative lighting, boutique atmosphere lighting





LED Type: 2835SMD, Taiwan Chip - Epistar

LED QTY: 120LEDs/Meter, 5Meters/Roll, 600LEDs/Roll

Pitch: 8.34mm / 0.33"

Max Lumens per LED: 20~22lm(warm white) 21.5~23lm (White)

Color Temperature: 2400K, 2700K, 3000K, 4000K, 6000K

Power: 26.4W/Meter, 1.1A/M(24VDC), 132W/Roll

DC24V (Every 6 LEDs cut at 50mm / 1.97")

PCB Color: Brown, White, Black (Optional)















Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-2835W-24-120

White

2580

120

24V

26.4



Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.

Cable length: 35cm / 13.77"


LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

10 x 1.5mm

0.39 x 0.06"

AH-2835-24-120

Silicone tube series

IP67

12.5 x 4.5mm

0.49 x 0.18"

AH-2835-24-120






Free end cap: 1 Piece / Meter (Opitional)

Free mounting clip: 2 Pieces / Meter (Opitional)

View angle: 120 degree

CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ + 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~ + 122ºF)

Warranty: 3 years

Certification: CE RoHS









Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC24V output



Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer






The flexible single color strip connect to power supply:









Company Information

         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx,bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number







FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.



Packaging & Shipping



    5Meters/Roll, 1 Roll into anti-static bag
    50Rolls/Carton, Carton Size: 50x40x30cm / 19.69x15.75x11.81"







Accessories(Optional):







































































Certificate:



Factory:
