Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: SMD3528
  • Warranty(Years): 2
  • Input Voltage(V): DC24V
  • Lamp Power(W): 42
  • Lamp Luminous Flux(lm): 3520Lm
  • Lamp Luminous Efficiency(lm/w): 85
  • CRI (Ra>): 85
  • Color Temperature(CCT): Pure White
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-LP3528W-66-700
  • Size:: 60 x 60cm / 2 x 2 feet
  • Dimension:: 595 x 595 x 10.4mm / (23.43 x 23.43 x 0.41inches)
  • Voltage:: DC24V
  • Power:: 42Watt
  • Color:: White, Warm White,2400-7000K
  • Lumens:: 3520lm
  • IP Protection:: IP65
  • LED Type:: LED Panel Light 600 x 600mm
  • Cover Material:: Acrylic
  • warranty:: 2 years

Packaging & Delivery

Packaging Details each led panel light [ 600 * 600mm ] is 74 * 65 * 6cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 68 * 36 * 77cm.
Delivery Time Within 5-7 working days



Product Description

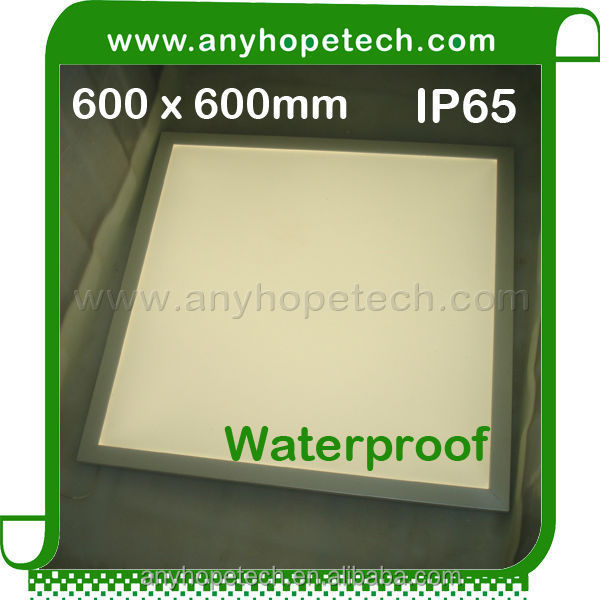

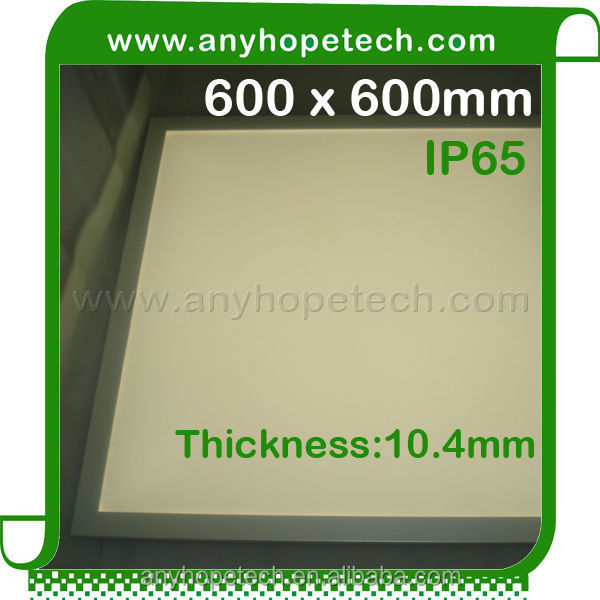

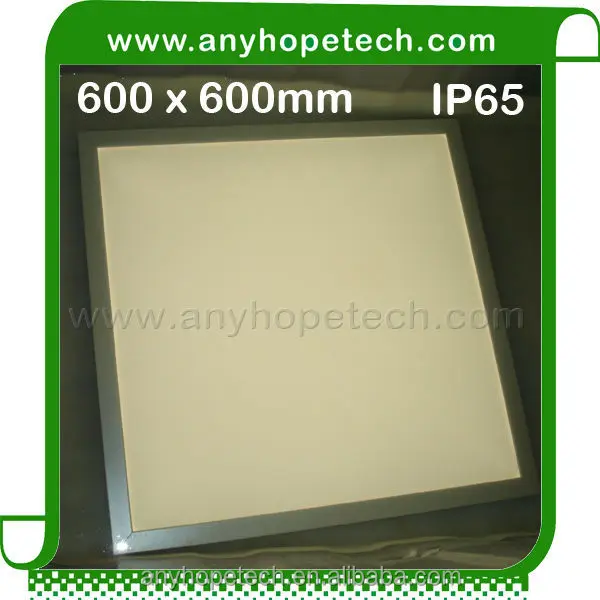

IP65 LED panels 60x60 cm with small thickness

  • The special color available to meet different requirements.
  • Constant current and constant voltage
  • No mercury,UV,IR and other toxic substances, it is environment-friendly.







Beam Angle: 140°



Voltage: 24 Volt



Power Factor: 0.95



CRI: >80

CRI: >90 are available.



Operating Life Hours: 50,000hrs



Lumens: 3500 lumen



Up to 60% energy saving.



LED Source from Epistar Taiwan Chip



RGB, Warm White & cool white, natural white are available !













Model:   AH-LP3528WW-66-700

 (Constant Voltage can be dimmable / dimbare)

Input Voltage:

 AC100~240V

Working Voltage:

 DC24V

LED Source:

 SMD3528 ( Epistar )

Power:

  42Watt

Color:

 White, Warm White

Color Temperature:

 2400-4000K, 4000-7000K

Lumen:

3520Lm (White),

2520Lm (Warm White)

View Angle:

 140 degrees

Certification:

 CE, EMC, LVD, RoHS, FCC

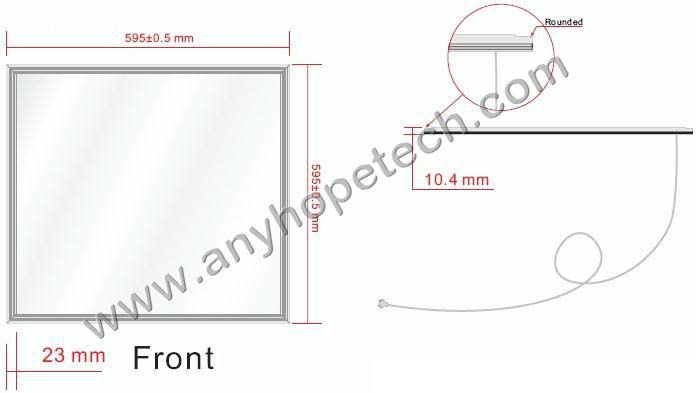

Dimension:

595*595*10.4mm

23.4*23.4*0.40 inches

Packing Size:

740*650*60mm /

29.2*25.6*2.4 inches

Weight:

3.8kgs/pc; 8.36lbs/pc

Fixture Material:

Aluminum Alloy Housing

Installation way:

Suspending / Embedded /

Wall hung







 Meterial: high transmission Acrylic, and high quantity aluminum alloy frame




 Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.



CRI: >80

CRI: >90 are available

Installation way:  Suspending/Embedded/Wall hung


















Company Information

       Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.





Our Services



Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.



Step (2): Sales Contract or Proforma Invoice

We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.



Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)



Step (4): Production Process



Step (5): Package and Shipping



Step (6): Air Way Bill Number







FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.





  Certificate:


Factory:
