Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: SMD5050
  • Warranty(Years): 3
  • Input Voltage(V): 24VDC
  • Lamp Power(W): 10
  • Lamp Luminous Flux(lm): 643Lm
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 80
  • Color Temperature(CCT): Pure White
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP55
  • Certification: BV, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-LP3528-33-160
  • Size:: 300x300x10.4mm / 11.6x11.6x0.40 inches
  • Color:: White, Warm White,Cool White,RGB, Bi-color,2500K-7000K
  • Weight:: 1.1kgs/pc; 2.42lbs/pc
  • Base Material: Aluminium Alloy
  • View angle:: 120 degrees

Packaging & Delivery

Packaging Details each led panel light [ 300 * 300mm ] is 32 * 7 * 36cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 37 * 32 * 39cm
Delivery Time Within 8-10 working days



Product Description

Widely Used Popular Wholesale 300 300mm 24V custom rgb led edge lit panel

Model:AH-LP3528WW-33-160



 Constant current and constant voltage
 No mercury,UV,IR and other toxic substances, it is environment-friendly.

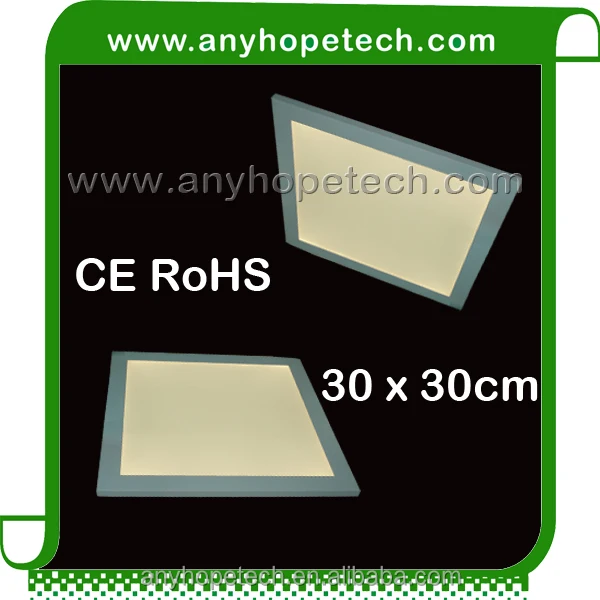

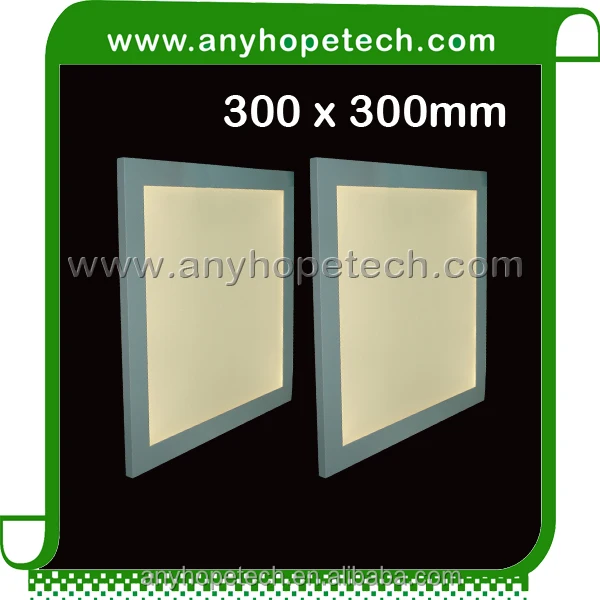

Ultra-thin Dimmable LED Panel Lights 300 x 300mm / (1 x 1ft)



Can be Constant Current Style, Input Voltage: DC25~35V(350mA).



Thickness: 10.4mm / (0.41inches)



LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: >80, CRI: >90 are available.





Model:   AH-LP3528WW-33-160

 (Constant Voltage can be dimmable)

Input Voltage: AC100~240V
Working Voltage: DC24V
LED Source: SMD3528
Power: 10W
Color: Cool White, White, Warm white, RGB, Bi-color
Color Temperature: 2400-4000K, 4000-7000K
Lumen: 700Lm(Cool White), 643(White), 480Lm(Warm white), Max 650Lm(Bi-color), RGB: 128Lm(Red),265Lm(Green),160Lm(Blue)
View Angle: 120 degrees
Certification: CE, RoHS

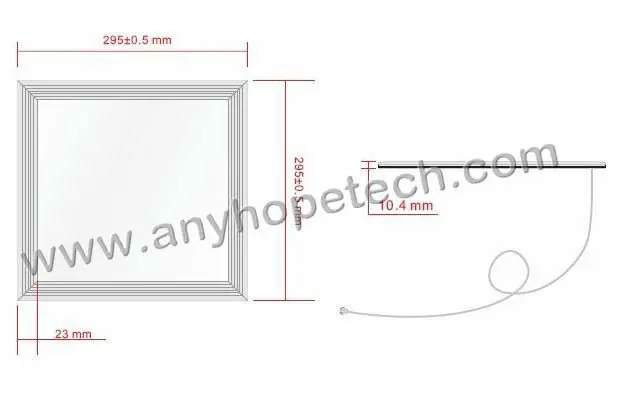

Dimension: 295*295*10.4mm / 11.6*11.6*0.40 inches
Packing Size: 370*350*60mm / 14.6*13.8*2.4 inches
Weight: 1.1kgs/pc,2.42lbs/pc; 5pcs/Carton
Fixture Material: Aluminum Housing
Installation way: Suspending / Embedded / Wall hung









Certification: CE (EMC, LVD) RoHS



Warranty: 3 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)



Panel Size: 295 x 295 x 10.4mm / (11.61 x 11.61 x 0.41inches)









LED Lumen Attenuation:



Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2



Lumen maintenance at 10,000hrs: 95%



Average life time: 50,000hrs



Energy saving up to 50%,  soft and even lighting output.
Instant start, no flicking, no humming.
Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
No RF interference.







Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.







Company Information

            Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in

Shenzhen China.

          Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly
lines.





Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,

FedEx, bank information and terms & conditions for detailed check.



Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)



Step (4): Production Process



Step (5): Package and Shipping



Step (6): Air Way Bill Number



Welcome to visit our website: www.anyhopetech.com
