Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD3528
  • Type: Flex LED Strips
  • Input Voltage(V): DC24V
  • Lamp Power: 96W/Roll
  • Lamp Luminous Flux(lm): 8400Lm
  • CRI (Ra>): 85
  • Color Temperature(CCT): 2000-10000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD3528
  • Certification: CE, FCC, LVD, RoHS
  • Emitting Color: Warm White
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-F3528WW-24-240
  • Power:: 19.2W/Meter, 96W/Roll
  • Color:: White,Warm White,Pink,Purple,Red,Green,Blue,Yellow,
  • LED Type:: SMD3528, Waterproof led flexible strip light
  • LED QTY:: 240LEDs/Meter, 1200LEDs/Roll
  • Lumen:: 8400Lm/Roll
  • Voltage:: DC24V
  • IP Protetion:: IP20, IP67, IP68
  • View Angle:: 120 degree
  • Certification:: CE RoHS
  • Warranty:: 2 years

Packaging & Delivery

Packaging Details 5 meters / roll
1 roll / anti-static bag
Weight: 0.21kgs/Roll
Package: 25Rolls/Carton
Delivery Time Within 3-5 working days after receiving the payment.



Product Description

Fashionable most popular  warm white 240ledm waterproof smd flexible led strip

Model: AH-F3528WW-24-240

  • Widely used for home decoration use, hotels, clubs, shopping malls
  • Architectural decorative lighting, boutique atmosphere lighting
  • Extensively applied in Backlighting, concealed lighting, channel letter lighting
  • Emergency & security lighting, advertisement sign lighting





LED Type: 3528SMD, Taiwan Chip - Epistar



LED QTY: 240LEDs/Meter, 5Meters/Roll, 1200LEDs/Roll, 1200LEDs/16.40Ft



Power: 19.2W/Meter, 0.8A/M(24VDC) 96W/Roll



Max Lumens per LED:

3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Pitch: 4.2mm / 0.17"

DC24V (Every 6 LEDs cut at 25mm / 0.98")

PCB Color: Brown, White, Black (Optional)

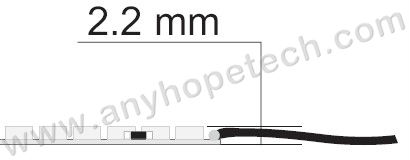

Dimension:  5000 x 10 x 2.2mm /195 x 0.39 x 0.09"













Model Number

Color

Typ.Flux
(LM/M)

(LEDs/M)

(DC)

(W/M)

AH-3528R-24-240-S

Red

720

240

24V

19.2

AH-3528Y-24-240-S

Yellow

720

AH-3528B-24-240-S

Blue

840

AH-3528G-24-240-S

Green

1200

AH-3528W-24-240-S

White

1680

AH-3528WW-24-240-S

Warm White

1440






Super Bright Warm White: 1680Lm/Meter

Super Bright Cool White: 1920Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.












Cable length: 35cm / 13.78"

View angle: 120 degree

CRI: >80,

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 2 years

Certification: CE  RoHS  WEEE




Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC24V output



Compatible with Dimmer


The flexible single color strip connect to power supply:
