Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD3528
  • Type: LED Bar Lights
  • Input Voltage(V): DC24V
  • Lamp Power: 14.4W
  • Lamp Luminous Flux(lm): 540lm
  • CRI (Ra>): 80
  • Color Temperature(CCT): 2200-8000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Emitting Color: Red
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-RD-3528R-24-180
  • Working Voltage:: DC24V
  • Size:: 1000*15*7mm
  • LED QTY:: 180LEDs/Meter
  • Color:: Red/Blue/White/Warm white/RGB
  • Color Temperature:: White(6000-7000K)/ Warmwhit(3000-3500K)
  • Certification:: CE RoHS
  • Waterproof:: IP20, IP67
  • LED Type:: Aluminum Rigid Bar
  • Power:: 14.4W/meter
  • Warranty:: 2 years

Packaging & Delivery

Packaging Details Dimension: 1000x14x7mm
Weight:160g/meter
Package: 20m/bag
Delivery Time Within 5-7 working days

Specifications

led bar backlight
3528SMD,180LEDs
DC24V,14.4W/Meter
waterproof,IP67,Red,Blue
High brightness, Aluminum Ba



Product Description

Promotion Cheap Wholesale 24V 3528SMD 180LEDs led bar backlight

Model: AH-RD-3528R-24-180

  • Interior decorative lighting (cove lighting, backlighting)
  • Bar and freezer cabinets
  • Back lighting for light box, advertising signboard, display case.

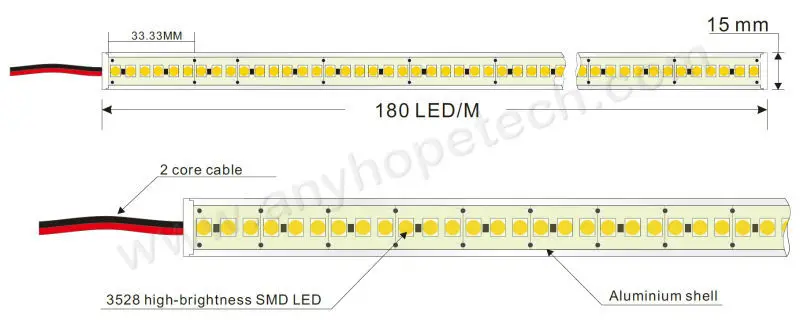

Waterproof Aluminium LED Bar - 3528MD 180LEDs - 1 Meter Long



LED Type:  3528SMD, Taiwan Chip - Epistar



LED QTY: 180LEDs/Meter



Length: 1,000mm / 3.28Ft



Width & Thickness: 15mm(0.59") x 7mm(0.28")



Color: Red, Green, Blue, Yellow, White, Warm White



Pitch: 5.6mm / 0.22"





Max Lumens per LED:
3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature:
2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K+

24VDC: 14.4W/Meter

DC12V (Every 6 LEDs cut at 33.33mm / 1.31")





PCB Color: White

Material dropped on the PCB: Epoxy Resin

Shell Material: Aluminium Alloy

IP Protection: Waterproof, IP67


Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-RD-A3528R-12/24-180

Red

540

180

12V

24V

14.4

AH-RD-A3528Y-12/24 -180

Yellow

540

AH-RD-A3528B-12/24 -180

Blue

630

AH-RD-A3528G-12/24 -180

Green

900

AH-RD-A3528W-12/24 -180

White

1260

AH-RD-A3528WW-12/24 -180

Warm White

1080




Note: Amber, Orange, Pink, Purple color are optional.

Max Length Connection: 5 Meters, Feed power to both ends at every 3 meters to minimize the voltage drop.

Free metallic mounting clip: 2 Pieces / Meter

View angle: 120 degree

CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ + 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~ + 122ºF)

Certification: CE RoHS
