Quick Details

  • Light Source: LED
  • Item Type: Ceiling Lights
  • LED Light Source: SMD3528
  • Install Style: Surface Mounted
  • Input Voltage(V): DC24V
  • Lamp Power(W): 34
  • Lamp Luminous Flux(lm): 2070~2310Lm
  • Lamp Luminous Efficiency(lm/w): 65
  • CRI (Ra>): 80
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): 20 - 60
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP54
  • Certification: CE, EMC, LVD, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-CP330Y
  • Size:: Diameter: 330 x H26mm / 12.99" x H1.02"
  • Punch size:: 310~315mm
  • Luminous Flux:: 2070~2310Lm
  • Color:: White, Warm White,Red,Blue,Green,Pink,2400 -7000K
  • Power:: 34W
  • Voltage:: DC24V
  • View Angle:: 120 degrees
  • Certificate:: CE RoHS
  • Type:: round ceiling light, led ceiling light supplier
  • Base Material:: Aluminum Alloy

Packaging & Delivery

Packaging Details Carton packing.
Weight: 0.96kgs
1pc/white box
Delivery Time Within 5-7 working days.



Product Description

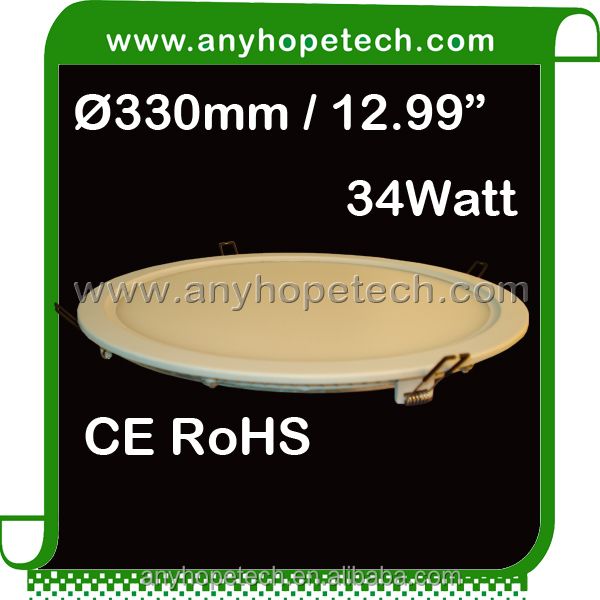

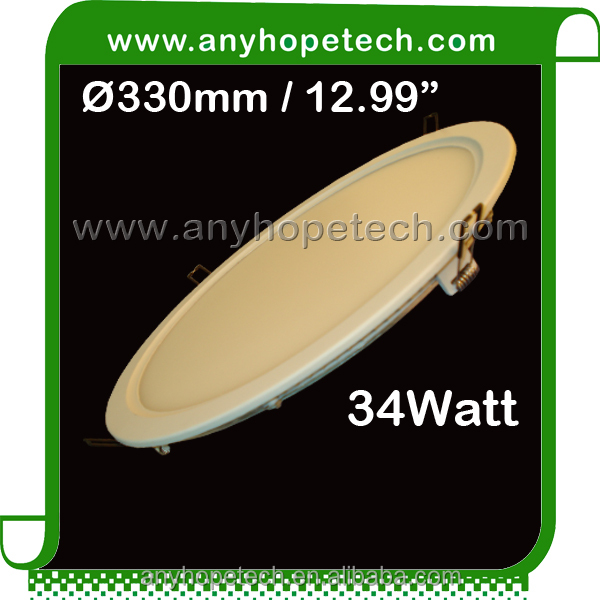

Diameter 330mm 34W super bright round led ceiling light supplier

Model:  AH-CP330Y



  • Certificate of standard:  EN 62471:2008
  • Aluminum alloy material: good to dissipate heat and prolong its lifespan.
  • Wide application range: can be installed on walls and ceilings in meeting rooms, hotels, offices,homes and so on.

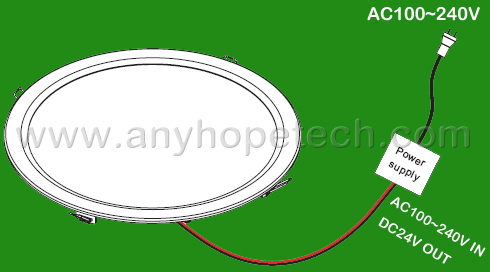

Input Voltage: AC100-240V


Ceiling light  input voltage: DC24V



Luminous Flux: 1370-1416Lm


Color: White, Warm White


Color Temperature: 2000 - 7000K







Weight: 0.96kgs


View Angle: 120 degree


Waterproof: IP52


Certificate: CE RoHS


Life time: >50,000 Hours



Warranty: 2 years

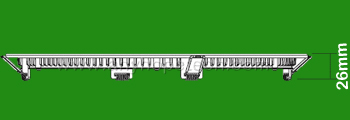

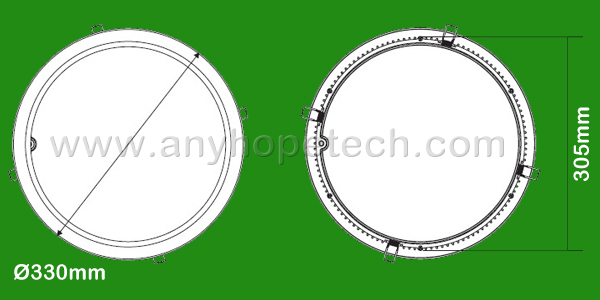

Size: Ø330 x H26mm / (Ø12.99 x H1.02")



Punch: Ø310~315mm / (12.20~12.40")

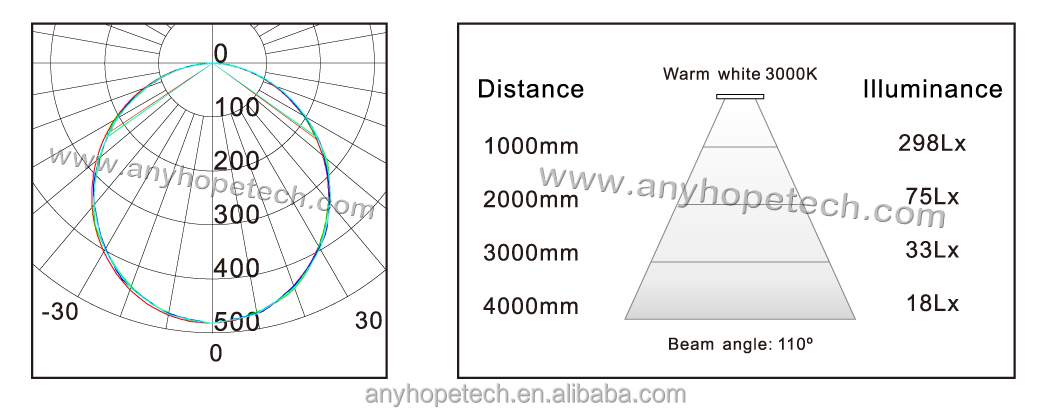

Indoor lamps and lanterns light distribution curve

Average illuminance figure





Model Number

SIZE

Voltage

Power

Color

Color Temperature

Luminous
Flux

AH-CP330Y

Ø330mm x H26mm

/Ø12.99" x H1.02"

DC24V

34 W

Warm white
Cool White

2400-7000K

2070~2310 lm





LED Lumen Attenuation:

Operating timeLumen Decrease
(Hours)(%)
5,0002.3
10,0005.4
20,00011.5
50,00025.2









Energy saving up to 50%, even lighting output.


Instant start, no flicking, no humming.


Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.


No RF interference.













Company Information

          Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

         Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.







Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number









FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.

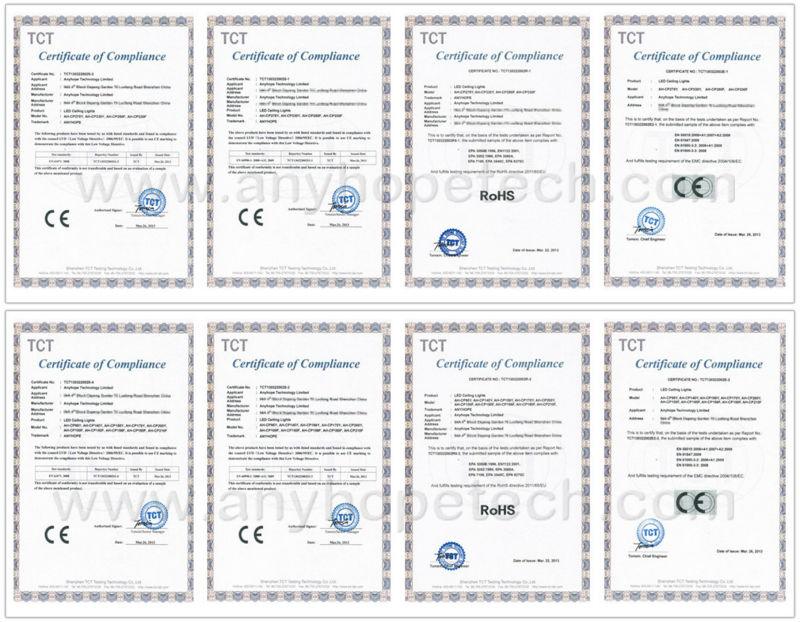

Certificates:

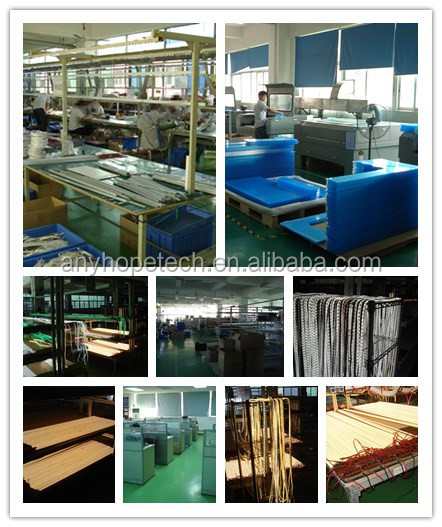

 Factory:
