Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: SMD3528
  • Warranty(Years): 2
  • Input Voltage(V): DC24V
  • Lamp Power(W): 42
  • Lamp Luminous Flux(lm): 2440-3520lm
  • Lamp Luminous Efficiency(lm/w): 75
  • CRI (Ra>): 82
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP52
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-LP3528W-66-700
  • Size:: 600*600mm / 1.97 x 1.97ft
  • Power:: 42W(White), 52W(RGB), 43W(Bi-Color)
  • Color:: 2400-7500K
  • Certification:: CE [EMC,LVD] RoHS
  • Input Voltage: DC24V
  • Luminous Flux:: 2440-3520lm
  • LED Type:: Panel light, led suspended ceiling light panels
  • View Angle:: 120 degree
  • Base Material:: Aluminum
  • Warranty:: 2 years

Packaging & Delivery

Packaging Details each led panel light [ 600 * 600mm ] is 74 * 65 * 6cm
every 5 pieces into a big outer carton,
the size of 5 pieces outer carton is 68 * 36 * 77cm.
Delivery Time Within 8-10 days after receiving the payment



Product Description

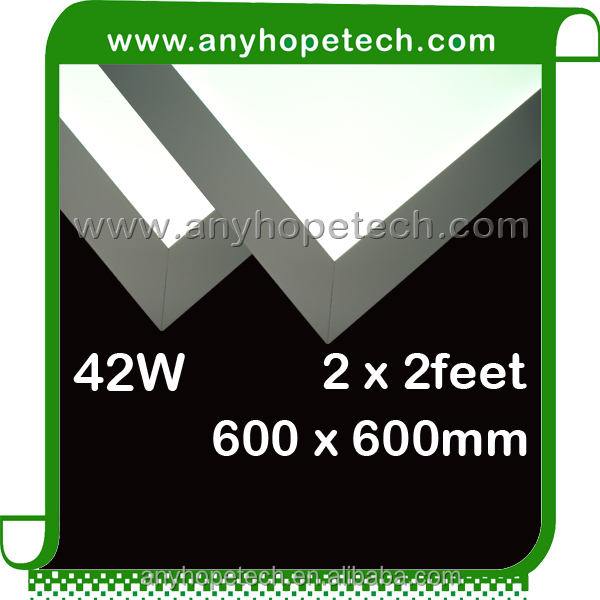

High quality beautiful surface 42W 60 60cm square led ceiling light

Model:   AH-LP3528W-66-700

  • 100% Brand New & High Quality!
  • he special color available to meet different requirements.
  • Constant current and constant voltage
  • No mercury,UV,IR and other toxic substances, it is environment-friendly.







Ultra-thin Dimmable LED Panel Lights 600 x 600mm / (1.97 x 1.97ft)



Can be Constant Current Style, Input Voltage: DC55~70V(700mA).



Shell Material: Aluminium Alloy



LED Type: 3528SMD or 3014SMD ( Epistar 10*23 )



Max Lumens per LED: 7~8Lm (White), 6.5~7.5Lm (Warm White)



Beam Angle: 120 degree



CRI: >80



CRI: >90 are available.



Up to 60% energy saving.



RGB, Warm White & cool white, natural white are available !







Color

Color
Temperature

Lumen Flux

Power
(W)

Voltage
(DC)

RGB

/

Red: 432LM
Green: 864Lm
B: 540Lm

52

24V

Cool White

6000K +

3520Lm

42

White

4000~6000K

3466Lm

Warm White

2400~4000K

2440Lm

Bi-Color

Warm White ~ Cool White
2400~6000K

Max 2400Lm

43













Certification: CE (EMC, LVD) RoHS



Warranty: 2 years



IP Protection: IP52, Indoor Use



Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~ + 122ºF)



Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~ + 140ºF)



Panel Size: 595 x 595 x 10.4mm / (23.43 x 23.43 x 0.41inches)









 Application:

  • As the ceilling or wall light used in the office,hotel,restaurant,cafes,bar,warehouse lighting,supermarket,hospital and so on places.





Installation way:  Suspending/Embedded/Wall hung











LED Lumen Attenuation:



Operating time
(Hours)

Lumen Decrease
(%)

5,000

2.3

10,000

5.4

20,000

11.5

50,000

25.2





Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs







Company Information

          Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

         Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.





Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx,bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number









FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.





Certificate:

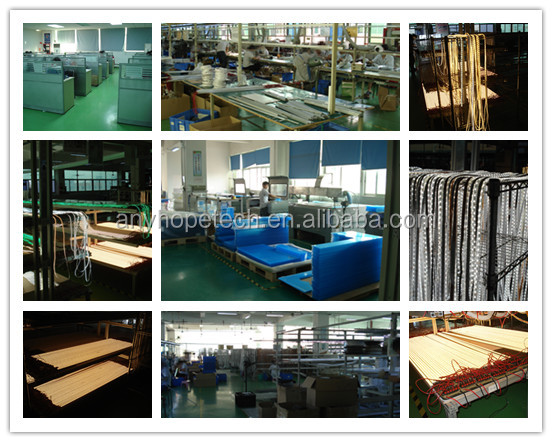

Factory:



Welcome to visit our website: www. anyhopetech.com



Hot-sale products:











Transaction History of the Supplier

Below is the information about the supplier's transactions conducted via Alibaba.com. If you require further details regarding the transaction data, please contact the supplier directly.

Transaction Overview

Transactions

Transaction Details

This supplier has completedtransactions with buyers from .

Shipping Destination
Transaction Value
Transaction Date
Email to this supplier
China (Mainland)
Transaction Level:
Supplier Assessments:
The supplier supports Trade Assurance – A free service that protects your orders from payment to delivery.
Supplier's Trade Assurance Limit: US $
Learn More

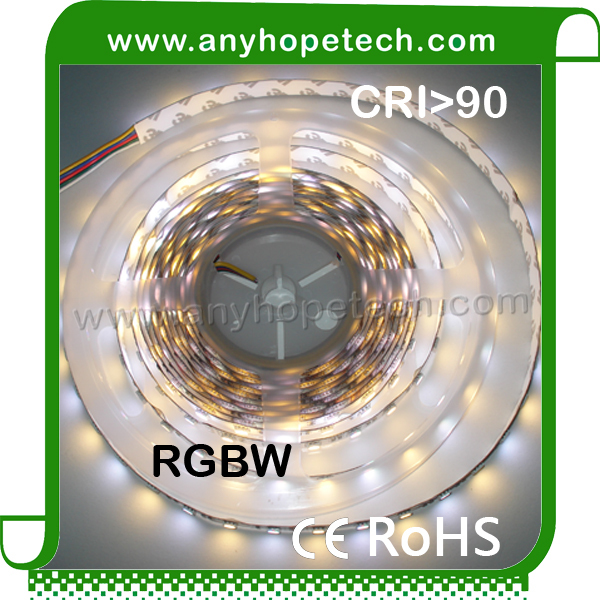

1. Flexible LED Strip can be customized length.
