Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD5050
  • Type: Flex LED Strips
  • Input Voltage(V): 24VDC
  • Lamp Power: 72w
  • Lamp Luminous Flux(lm): R90lm,G150lm,B105lm, W675lm
  • CRI (Ra>): 85
  • Color Temperature(CCT): 2200K-6500K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD5050
  • Certification: BV, C-tick, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Emitting Color: RGBW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-5050RGBW-24-60
  • Dimension:: 5000*10*2.2mm /195*0.39*0.09inches
  • Color:: RGB, Red,Green,Blue,White, 2200~6500K
  • Lumen:: R90lm,G150lm,B105lm, W675lm
  • Power:: 14.4W/meter, 72W/Roll
  • LED QTY:: 60LEDs/Meter, 300LEDs/Roll
  • LED Type:: SMD5050 strip light, Color LED Lighting
  • IP Protetion:: IP20, IP65, IP68
  • Warranty:: 3 years

Packaging & Delivery

Packaging Details 5 meters / roll
1 roll / anti-static bag
Weight: 0.26kgs/Roll
Package: 25Rolls/Carton
Delivery Time Shipped in 3 days after payment



Product Description

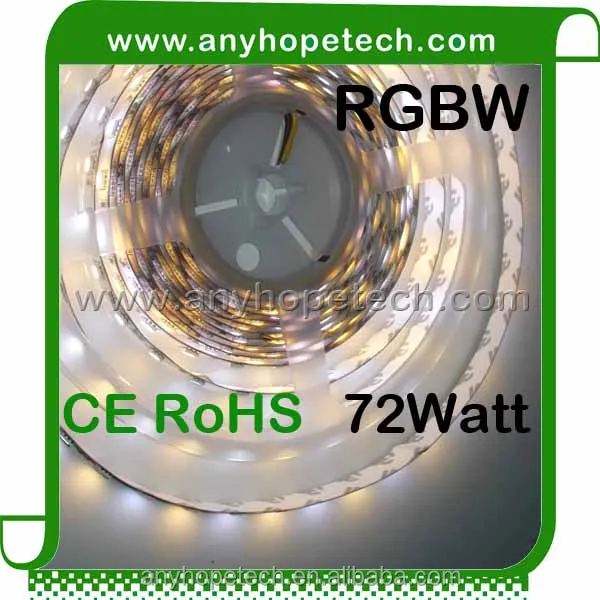

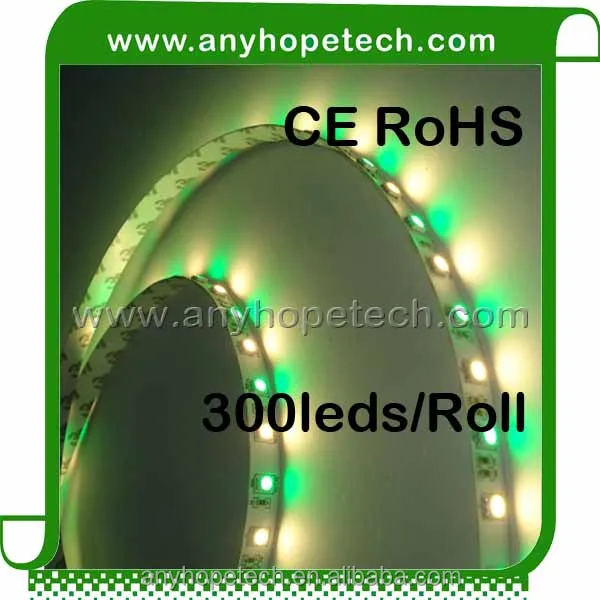

SMD5050 60 LED per meter 14.4W 24V RGBW LED Strip Lighting



Model: AH-5050RGBW-24-60

  • Emergency & security lighting, advertisement sign lighting
  • Decorative lights for holiday, event, show exhibition
  • Applicable for automobile and bicycle decoration, border or contour lighting
  • Architectural decorative lighting, boutique atmosphere lighting
  • Widely used for home decoration use, hotels, clubs, shopping malls









RGBW Flexible LED Strips - 5050SMD 60LEDs

LED Type: 5050SMD, Taiwan Chip - Epistar

LED QTY: 60LEDs/Meter, 5Meters/Roll, 300LEDs/Roll, 300LEDs/16.40Ft

14.4W/Meter, 0.6A/M(24VDC), 72W/Roll

Max Lumens per LED:
9lm(Red), 9lm(Yellow), 15lm(Green), 10.5lm(Blue), 22.5lm(White), 21lm(Warm White)

Color Temperature: 2000, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K


14.4W/Meter, 0.6A/M(24VDC), 72W/Roll

DC24V (Every 12 LEDs cut at 200mm / 7.87")

PCB Color: Brown, White, Black (Optional)




Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

   AH-5050RGBW-24-60

RGBW

RGB + White

R90,G150,B105,

W675

60

24V

14.4



Note:  RGB + Red, RGB + Green, RGB + Blue, RGB + Yellow
            RGB + Amber, RGB + Orange, RGB + Pink, RGB + Purple color are optional.

Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



LED Flex Strip Type

IP

Size

Reference

Protection

Model Number

Non waterproof

IP20

12 x 2mm

AH-5050RGBW-24-60

0.47 x 0.08"

Epoxy / Silicone series

IP65

14 x 2.5mm

AH-E5050RGBW-24-60

0.55 x 0.09"

Silicone tube series

IP67

14 x 4mm

AH-F5050RGBW-24-60

0.55 x 0.16"

U-shape silicone series

IP67

14 x 5mm

AH-U5050RGBW-24-60

0.55 x 0.19"

PVC Tube + Epoxy series

IP68

14 x 4mm

AH-G5050RGBW-24-60

0.55 x 0.16"

All silicone series

IP68

14 x 5mm

AH-S5050RGBW-24-60

0.55 x 0.19"




Cable length: 35cm / 13.78"

Free end cap: 1 Piece / Meter (Opitional)

Free mounting clip: 2 Pieces / Meter (Opitional)

View angle: 120 degree

CRI: >80,

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ + 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~ + 122ºF)

Warranty: 3 years

Certification: CE RoHS





Operating driver: LED Transformer with DC12V/DC24V output



Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer



Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop





The flexible RGBW strip connect to power supply:
