Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD3528
  • Type: Flex LED Strips
  • Input Voltage(V): DC12V/24V
  • Lamp Power: 48W
  • Lamp Luminous Flux(lm): 4200lm
  • CRI (Ra>): 90
  • Color Temperature(CCT): 2700K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD3528
  • Certification: BV, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Emitting Color: White
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-3528W-12/24-120
  • LED Qty:: 120LEDs/Meter
  • Power:: 9.6W/Meter
  • Certification:: CE RoHS
  • IP Rating: IP20, IP65, IP67, IP68
  • Size:: 5000*8*2.2mm /196*0.32*0.09inches
  • Color:: Red, Green, Blue, Yellow, White, Warm White, Pink
  • Life time:: 50,000hhous
  • Warranty:: 3 years

Packaging & Delivery

Packaging Details 5 meters / Reel,
Each reel in anti-static bag,
Weight: 0.195kgs/Roll
Package: 25Reels/Carton
Delivery Time Shipped in 3 days after payment



Product Description

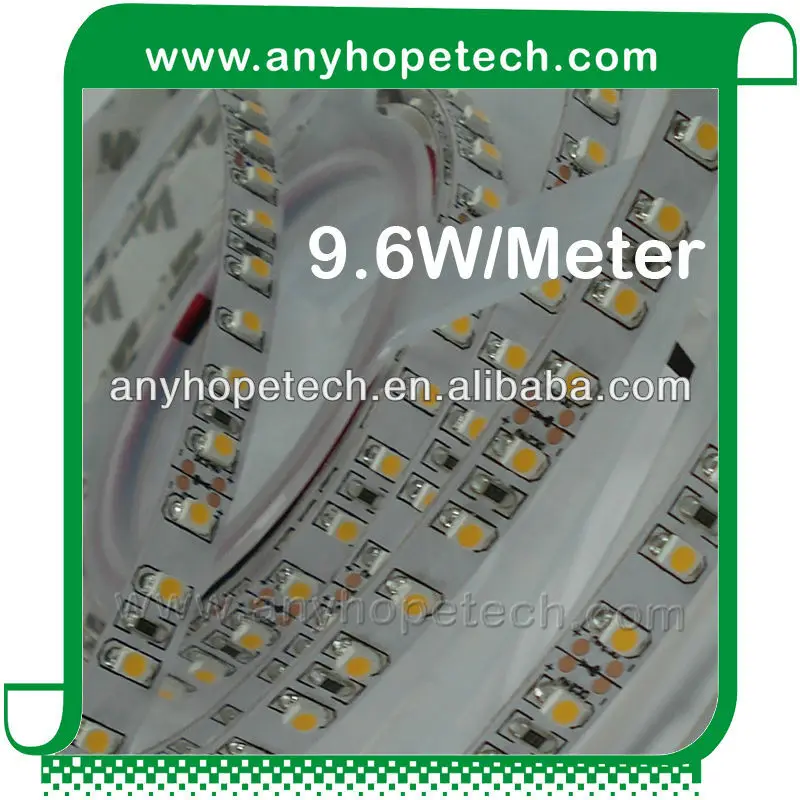

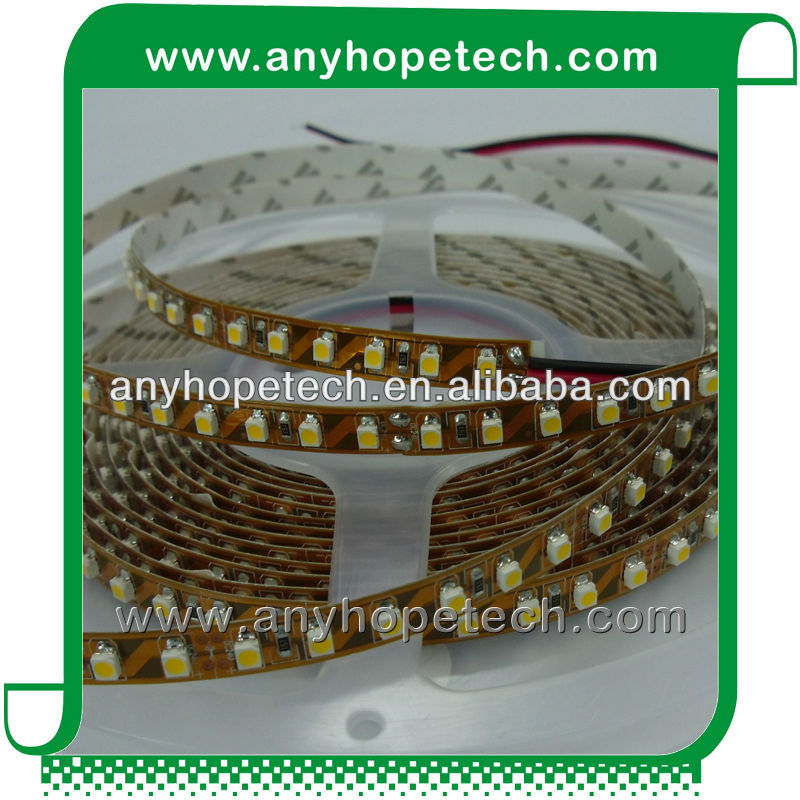

UL SMD3528 9.6W 120 LED per meter 24V Ra 90 warm white 2700K flexible led strips

Model: AH-3528R-24-120



Flexible LED Light Stripe - 3528SMD 120LEDs



LED Type: 3528SMD, Taiwan Chip



LED QTY: 120LEDs/Meter, 5Meters/Roll, 600LEDs/Roll, 600LEDs/16.40Ft



Max Lumens per LED:

3lm(Red),3lm(Yellow),5lm(Green),3.5lm(Blue),7lm(White),6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Power: 9.6W/Meter, 0.8A/M(12VDC), 0.4A/M(24VDC), 48W/Roll



Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-3528R-12/24-120

Red

360

120

12V
24V

9.6

AH-3528Y-12/24-120

Yellow

360

AH-3528B-12/24-120

Blue

420

AH-3528G-12/24-120

Green

600

AH-3528W-12/24-120

White

840

AH-3528WW-12/24-120

Warm White

720


Super Bright Warm White: 840Lm/Meter

Super Bright Cool White: 960Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.



Pitch: 8.3mm / 0.33"

DC12V (Every 3 LEDs cut at 25mm / 0.98")

DC24V (Every 6 LEDs cut at 50mm / 1.97")

PCB Color: Brown, White, Black (Optional)

Dimension:  5000*8*2.2mm /195*0.31*0.09inches








Cable length: 35cm / 13.78"

Free end cap: 1 Piece / Meter (Opitional)

Free mounting clip: 2 Pieces / Meter (Opitional)





LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 2.2mm

0.31 x 0.08"

AH-3528-12/24-120

Epoxy / Silicone series

IP65

8 x 2.5mm

0.31 x 0.09"

AH-E3528-12/24-120

Silicone tube series

IP67

10 x 4mm

0.39 x 0.16"

AH-F3528-12/24-120

U-shape silicone series

IP67

10 x 5mm

0.39 x 0.19"

AH-U3528-12/24-120

PVC Tube + Epoxy series

IP68

10 x 4mm

0.39 x 0.16"

AH-G3528-12/24-120

All silicone series

IP68

10 x 5mm

0.39 x 0.19"

AH-S3528-12/24-120




View angle: 120 degree

CRI: >80

CRI: >90 are available.

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 3 years

Certification: UL CE RoHS




Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC12V/DC24V output



Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer




The flexible single color strip connect to power supply:




Company Information

        Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

        Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.



Our Services

Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice.

We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number





FAQ



Why you should use LED lighting?



Some basic advantages of LEDs:

1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.

 You and our environment will be able to benefit in many ways with this type of lighting.





Certificate:




Factory:





Packaging & Shipping



5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton




 Accessories(Optional):





































































Welcome to visit our website: www.anyhopetech.com



Transaction History of the Supplier

Below is the information about the supplier's transactions conducted via Alibaba.com. If you require further details regarding the transaction data, please contact the supplier directly.

Transaction Overview

Transactions

Transaction Details

This supplier has completedtransactions with buyers from .

Shipping Destination
Transaction Value
Transaction Date
Email to this supplier
China (Mainland)
Transaction Level:
Supplier Assessments:
The supplier supports Trade Assurance – A free service that protects your orders from payment to delivery.
Supplier's Trade Assurance Limit: US $
Learn More

1. Flexible LED Strip can be customized length.



2. Waterproof flexible led strip, we could make the final products with exactly color kelvin, not only LED color kelvin.



3. All the flexible LED strip with CRI>80 (Ra80), CRI>90 (Ra90).



4. We could match the exactly color with different orders if you want to mix different orders in same project.



5. Welcome to visit our website www.anyhopetech.com for more.
