UL 240led 19.2W CRI95 R9>90 2700K DC24V Flexible LED light strips

FOB Reference Price:Get Latest Price
US $5-8 / Meters | 5 Meter/Meters (Min. Order)
Support Dimmer:
Yes
Wattage:
20W
Emitting Color:
Blue Cold White Red RGB White Yellow Green Warm White
Model Number:
AH-3528ww-24-240
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Light Strips
LED Light Source:
SMD3528
Type:
Flex LED Strips
Input Voltage(V):
24
Lamp Power:
96W
Lamp Luminous Flux(lm):
8400lm
CRI (Ra>):
90
Color Temperature(CCT):
Amber 2000K
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
PCB+SMD3528
Certification:
CE, EMC, LVD, RoHS, UL
Emitting Color:
Amber
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anyhope
LED Quantity:
240LEDs / Meter
Supply Ability
Supply Ability:
10000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
5 meters / roll
1 roll / anti-static bag
Weight: 0.20kgs/Roll
Package: 25Rolls/Carton
Port
shenzhen china
Product Description

UL 240led 19.2W CRI95 R9>90  2700K DC24V Flexible LED light strips



19.2W





CRI>85, CRI>90, 24VDC, 1200 LEDs,1680 lumen, 19.2W/m



DC 24V led strip 96watt per 5Meters / 16 feet



CRI>90, Super bright CRI>90 are available.

LED Type: 3528SMD, Epistar Chip


LED QTY: 240LEDs/Meter, 5Meters/Roll, 1200LEDs/Roll, 1200LEDs/16.40Ft

Max Lumens per LED:
3lm(Red),3lm(Yellow),5lm(Green),3.5lm(Blue),7lm(White),6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Power: 19.2W/Meter, 0.8A/M(24VDC) 96W/Roll


Model Number

Color

Typ.Flux
(LM/M)

(LEDs/M)

(DC)

(W/M)

AH-3528R-24-240-S

Red

720

240

24V

19.2

AH-3528Y-24-240-S

Yellow

720

AH-3528B-24-240-S

Blue

840

AH-3528G-24-240-S

Green

1200

AH-3528W-24-240-S

White

1680

AH-3528WW-24-240-S

Warm White

1440


 AH-F3528-12-240-IP67-99

Super Bright Warm White: 1680Lm/Meter

Super Bright Cool White: 1920Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.





3528-24-240 thick.jpg







3528-24-240 wide.jpg





For Blue, Green, Yellow, Red



3528-24-240 for r g b y.jpg







For White



3528-24-240 for w.jpg









3528-24-240 ies.jpg









Pitch: 4.2mm / 0.17"

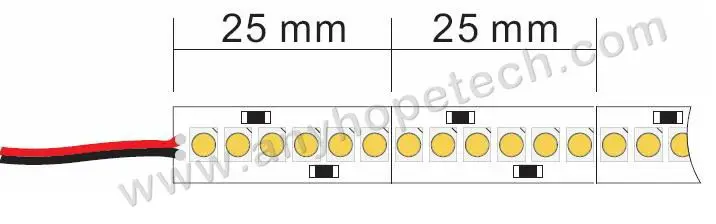

DC24V (Every 6 LEDs cut at 25mm / 0.98")



PCB Color: Brown, White, Black (Optional)

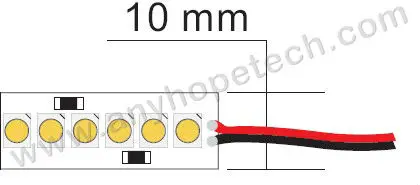

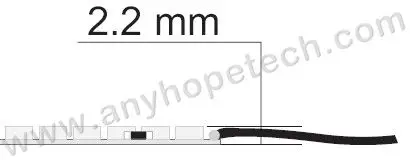

Dimension:     5000 x 10 x 2.2mm /195 x 0.39 x 0.09"



3528-24-240 cut.jpg












LED Flex Strip Type

IP
Protection

Size

Reference
Model Number

Non waterproof

IP20

10 x 2.2mm
0.39 x 0.08"

AH-3528-24-240-S


Cable length: 35cm / 13.78"

View angle: 120 degree

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 3 years

Certification: CE  RoHS  WEEE






Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC24V output

Compatible with Dimmer

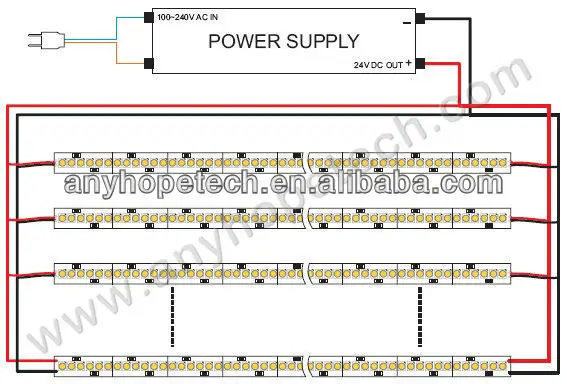

The flexible single color strip connect to power supply:





 3528-24-240 connect.jpg









Packaging & Shipping





5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton


 pack


Accessories(Optional):



accessories





Company Information

  Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

         Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.

 LED Strip - CE & RoHS - Anyhope Technology Limited--Logo-0820

  Our website:  http://www.anyhopetech.com Hot-Sale products



AH-5050W-24-280-IP20-16
