Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD3528
  • Type: Flex LED Strips
  • Input Voltage(V): 24
  • Lamp Power: 96W
  • Lamp Luminous Flux(lm): 8400lm
  • CRI (Ra>): 90
  • Color Temperature(CCT): Amber 2000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD3528
  • Certification: BV, C-tick, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, RoHS, SAA, SASO, UL, VDE
  • Emitting Color: Amber
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-3528ww-24-240
  • LED Quantity:: 240LEDs / Meter
  • Voltage:: DC24V
  • Non waterproof: IP20
  • Color:: Amber 2000K
  • Lumen / Meter: 1680
  • View Angle: 120 degree
  • LED Chip: Epistar

Packaging & Delivery

Packaging Details 5 meters / roll
1 roll / anti-static bag
Weight: 0.20kgs/Roll
Package: 25Rolls/Carton
Delivery Time Shipped in 3 days after payment
Product Description

  UL 240 led per meter 19.2W CRI90 2700K DC24V Flexible LED light strips







CRI>85, CRI>90, 24VDC, 1200 LEDs,1680 lumen, 19.2W/m



DC 24V led strip 96watt per 5Meters / 16 feet



CRI>90, Super bright CRI>90 are available.

LED Type: 3528SMD, Epistar Chip


LED QTY: 240LEDs/Meter, 5Meters/Roll, 1200LEDs/Roll, 1200LEDs/16.40Ft

Max Lumens per LED:
3lm(Red),3lm(Yellow),5lm(Green),3.5lm(Blue),7lm(White),6lm(Warm White)

Color Temperature:
2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Power: 19.2W/Meter, 0.8A/M(24VDC) 96W/Roll


Model Number

Color

Typ.Flux
(LM/M)

(LEDs/M)

(DC)

(W/M)

AH-3528R-24-240-S

Red

720

240

24V

19.2

AH-3528Y-24-240-S

Yellow

720

AH-3528B-24-240-S

Blue

840

AH-3528G-24-240-S

Green

1200

AH-3528W-24-240-S

White

1680

AH-3528WW-24-240-S

Warm White

1440




Super Bright Warm White: 1680Lm/Meter

Super Bright Cool White: 1920Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.















For Blue, Green, Yellow, Red









For White



















Pitch: 4.2mm / 0.17"



DC24V (Every 6 LEDs cut at 25mm / 0.98")



PCB Color: Brown, White, Black (Optional)



Dimension:     5000 x 10 x 2.2mm /195 x 0.39 x 0.09"













LED Flex Strip Type

IP
Protection

Size

Reference
Model Number

Non waterproof

IP20

10 x 2.2mm
0.39 x 0.08"

AH-3528-24-240-S


Cable length: 35cm / 13.78"

View angle: 120 degree

Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~ 176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 3 years

Certification: CE  RoHS  WEEE







Max Length Connection: 5 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC24V output

Compatible with Dimmer

The flexible single color strip connect to power supply:

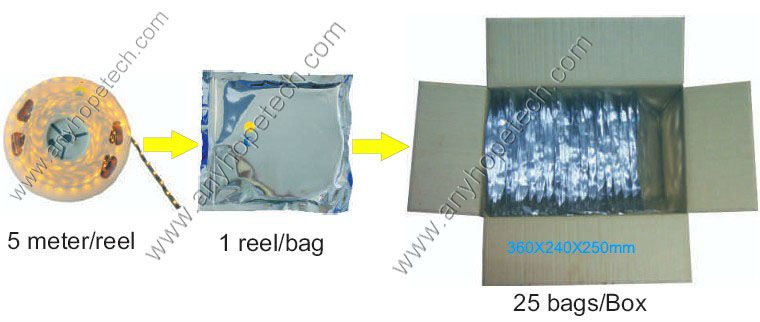

Packaging & Shipping





5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton





Accessories(Optional):







Company Information

  Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.

         Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.
