Quick Details

  • Light Source: LED
  • Item Type: Light Strips
  • LED Light Source: SMD3528
  • Type: Flex LED Strips
  • Input Voltage(V): 24V
  • Lamp Power: 31.2W
  • Lamp Luminous Flux(lm): 2730lm
  • CRI (Ra>): 75
  • Color Temperature(CCT): 2000-10000K
  • Working Temperature(℃): -20 - 50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: PCB+SMD3528
  • Certification: CE, EMC, FCC, LVD, RoHS
  • Emitting Color: Red
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-3528B-24-78
  • LED Type:: SMD3528
  • LED Qty:: 78LEDs/Meter, 390LEDs/Roll
  • Power:: 6.24Watt/Meter, 31.2Watt/Roll
  • Certification:: CE RoHS
  • wateproof: IP65/IP67/IP68 option
  • Size:: 5000*8*2.2mm / 195*0.31*0.09inches
  • Color:: Red, Green, Blue, Yellow, White, Warm White, Pink
  • Input Voltage: 24v
  • Life: 50,000h

Packaging & Delivery

Packaging Details 0.13kgs/Roll, 25Rolls/Carton.
Carton size for 50 rolls: 50*27*39cm
Gross Weight: 8kgs
Delivery Time Within 5-7 working days

Specifications

thin flexible waterproof led strip
SMD3528,78leds/Meter, 390leds/Roll
24vdc,6.24W/Meter, 31.2W/Roll
IP20, 120degree
CE RoHS



Product Description

  Super bright ! CE RoHS 24vdc SMD3528 thin flexible waterproof led strip

  Model: AH-3528B-24-78





Flexible LED Light Stripe - 3528SMD 78LEDs



LED Type: 3528SMD, Taiwan Chip(Epistar)


LED QTY: 78LEDs/Meter, 5Meters/Roll, 390LEDs/Roll, 390LEDs/16.40Ft

Power: 6.24W/Meter, 0.52A/M(12VDC) 31.2W/Roll









Max Lumens per LED: 3lm(Red), 3lm(Yellow), 5lm(Green), 3.5lm(Blue), 7lm(White), 6lm(Warm White)

Color Temperature: 2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K


Pitch: 12.8mm / 0.50"





DC12V (Every 3 LEDs cut at 38.5mm / 1.52")

PCB Color: Brown, White, Black (Optional)




Cable length: 35cm / 13.78"

Free end cap: 1 Piece / Meter (Opitional)

Free mounting clip: 2 Pieces / Meter (Opitional)

View angle: 120 degree

CRI: >80

CRI: >90 are available.



Model Number

Color

Typ.Flux
(LM/M)

LED QTY
(LEDs/M)

Voltage
(DC)

Power
(W/M)

AH-3528R-12-78

Red

156

78

12V

6.24

AH-3528Y-12-78

Yellow

156

AH-3528B-12-78

Blue

195

AH-3528G-12-78

Green

312

AH-3528W-12-78

White

546

AH-3528WW-12-78

Warm White

468





Super Bright Warm White: 546Lm/Meter

Super Bright Cool White: 624Lm/Meter are available.

Note: Amber, Orange, Pink, Purple color are optional.





LED Flex Strip Type

IP

Protection

Size

Reference
Model Number

Non waterproof

IP20

8 x 2.2mm

0.31 x 0.08"

AH-3528-12-78

Epoxy / Silicone series

IP65

8 x 2.5mm

0.31 x 0.09"

AH-E3528-12-78

Silicone tube series

IP67

10 x 4mm

0.39 x 0.16"

AH-F3528-12-78

U-shape silicone series

IP67

10 x 5mm

0.39 x 0.19"

AH-U3528-12-78

PVC Tube + Epoxy series

IP68

10 x 4mm

0.39 x 0.16"

AH-G3528-12-78

All silicone series

IP68

10 x 5mm

0.39 x 0.19"

AH-S3528-12-78



Lumen maintenance at 10,000hrs: 95%

Average life time: 50,000hrs

Storage temperature: -30°C~80°C / (-22ºF ~  176ºF)

Operating temperature: -20°C~50°C / (-4ºF ~  122ºF)

Warranty: 2 years

Certification: CE RoHS





Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop.



Operating driver: LED Transformer with DC12V/DC24V output

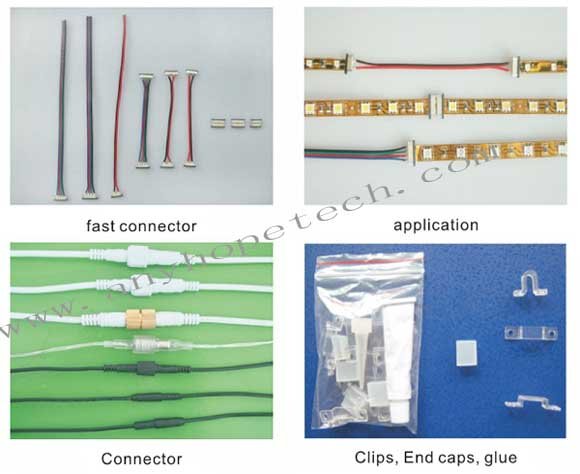

Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer







The flexible single color strip connect to power supply:















Company Information

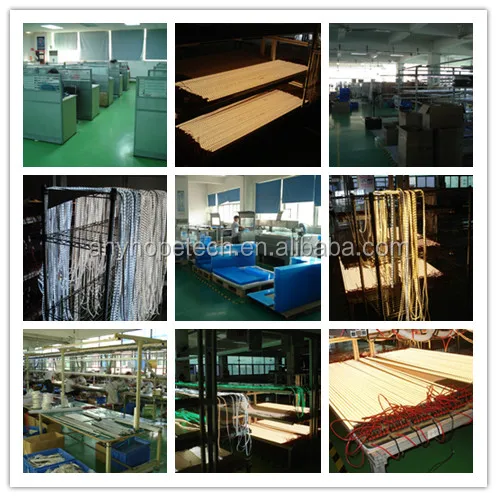

            Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products

in Shenzhen China.

           Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.








Our Services



Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number







Packaging & Shipping

 5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton







Welcome to visit our website: www.anyhopetech.com



Transaction History of the Supplier

Below is the information about the supplier's transactions conducted via Alibaba.com. If you require further details regarding the transaction data, please contact the supplier directly.

Transaction Overview

Transactions

Transaction Details

This supplier has completedtransactions with buyers from .

Shipping Destination
Transaction Value
Transaction Date
Email to this supplier
China (Mainland)
Transaction Level:
Supplier Assessments:
The supplier supports Trade Assurance – A free service that protects your orders from payment to delivery.
Supplier's Trade Assurance Limit: US $
Learn More

1. Flexible LED Strip can be customized length.



2. Waterproof flexible led strip, we could make the final products with exactly color kelvin, not only LED color kelvin.



3. All the flexible LED strip with CRI>80 (Ra80), CRI>90 (Ra90).



4. We could match the exactly color with different orders if you want to mix different orders in same project.
