Quick Details

  • Light Source: LED
  • Item Type: Ceiling Lights
  • LED Light Source: SMD2835 Epistar chip
  • Install Style: Embeded
  • Input Voltage(V): 24VDC
  • Lamp Power(W): 6
  • Lamp Luminous Flux(lm): 340
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 95
  • Color Temperature(CCT): Cool White
  • Working Temperature(℃): -20 - 60
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum Alloy
  • IP Rating: IP54
  • Certification: BV, C-tick, CE, EMC, Energy Star, ETL, FCC, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Anyhope
  • Model Number: AH-CP100F
  • Size:: L: 100mm, W: 100mm, H: 26mm
  • Punch size:: L: 90mm, W: 90mm
  • Color:: Warm White,Pink,Red,Green,Blue
  • Color Temperature:: 2400-7000K
  • View Angle: 120 degrees
  • Warranty: 5 years

Packaging & Delivery

Packaging Details Inner box:20*18.5*6 CM
10pcs/carton, 63.5*22*39.5 CM
Delivery Time Shipped in 5 days after payment


Product Description

   ETL CE RoHS Ra95 24V Aluminum led flat panel

  Model:  AH-CP100F


  •   With 120 degree beam angle and send out light evenly.




Input  Voltage: AC100-240V


Ceiling light input voltage: 24V



Power: 6Watt

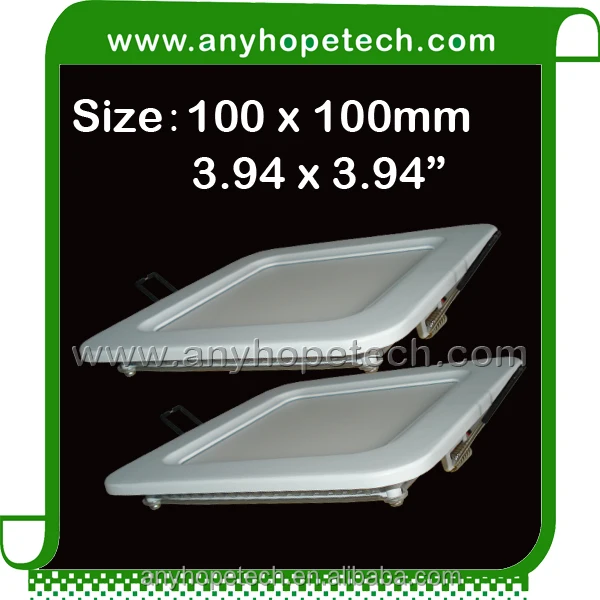

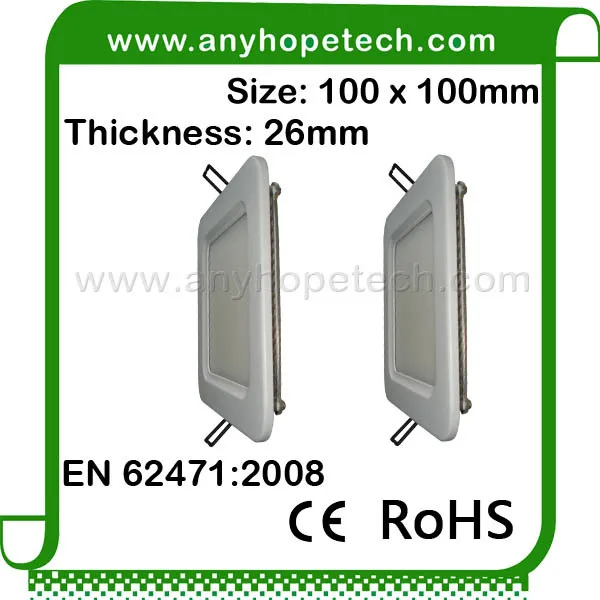

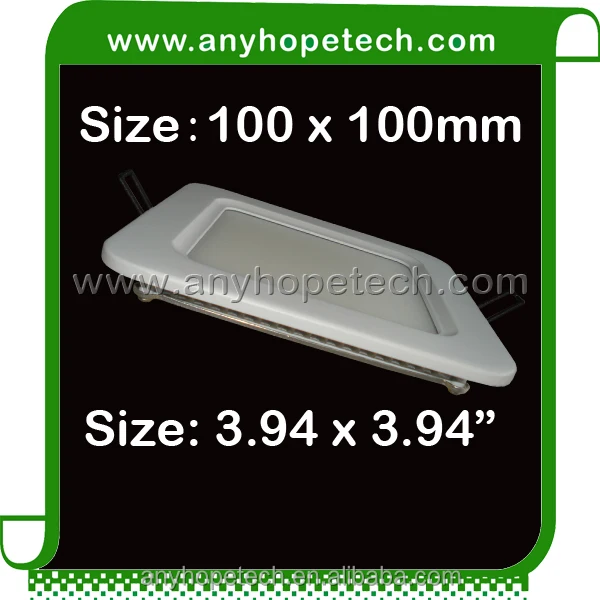

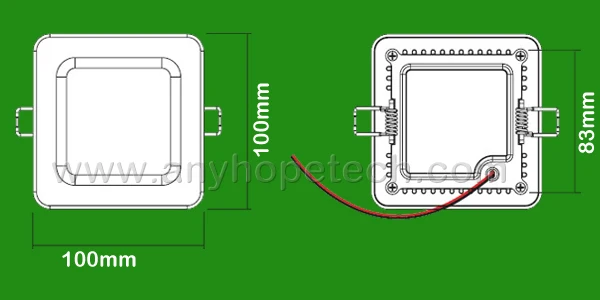

Size: L: 100mm/3.94",  W: 100mm / 3.94", H: 26mm / 1.02"



Punch: L / W: 85 ~ 90mm / 3.34 ~ 3.54 "








Luminous Flux: 320~340Lm



Color: White, Warm White


Color Temperature: 2400 - 7000K




Weight: 0.13kgs

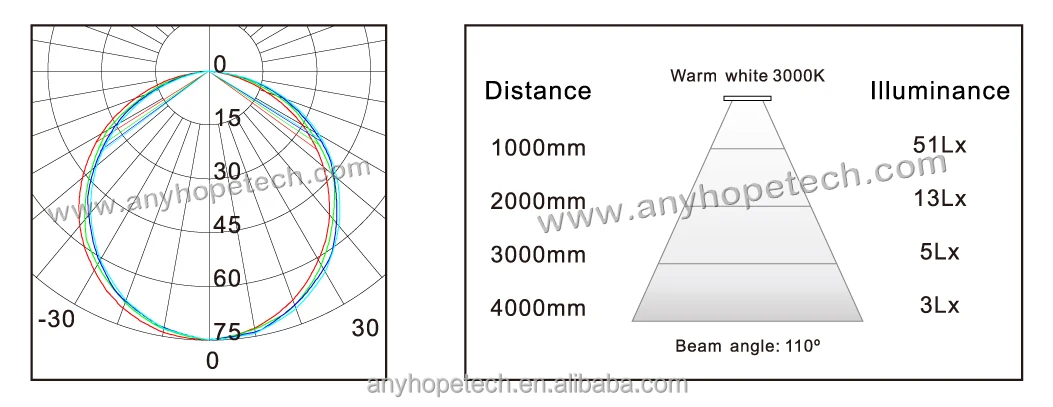

View Angle: 120 degree

Waterproof: IP52


Certificate: CE  RoHS

Life time: >50,000 Hours


Warranty: 3 years




Energy saving up to 50%, even lighting output.

Instant start, no flicking, no humming.

Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.

No RF interference.






LED Lumen Attenuation:


Operating timeLumen decrease (%)
5,000 hours2.30%
10000 hours5.40%
20000 hours11.50%
50000 hours25.20%
